Front Side Door Outside Handle Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Driver Side: Remove front side door lock cylinder. Refer to FRONT SIDE DOOR LOCK CYLINDER REMOVAL AND INSTALLATION/REPLACEMENT
2. Passenger Side: Remove side door handle cap. Refer to SIDE DOOR HANDLE CAP REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

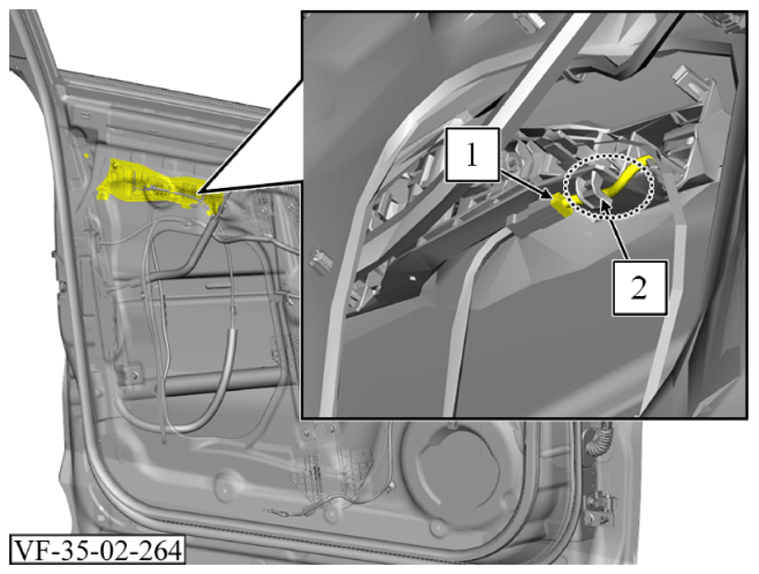

3. Driver Side: Unlock and disconnect the electrical connector (1) and remove the cable from the outside handle bracket as indicated in area (2).

   Courtesy of VINFAST, LLC

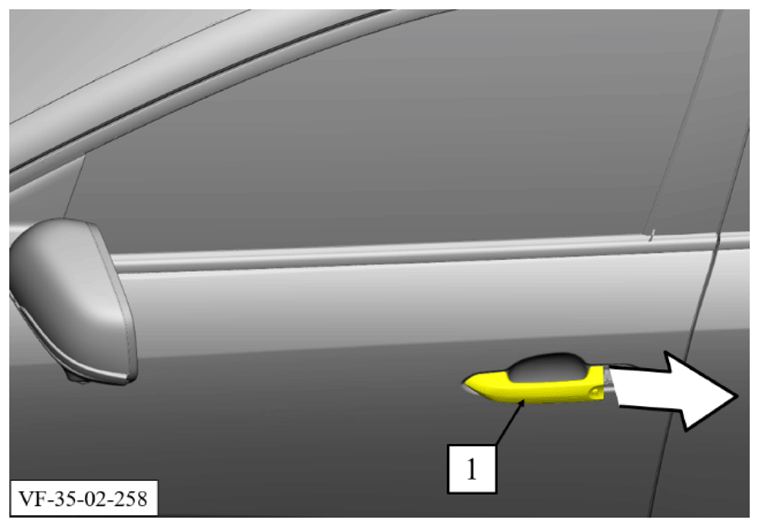

4. Pull the door handle (1) with a little effort in the direction of the arrow.

   Courtesy of VINFAST, LLC

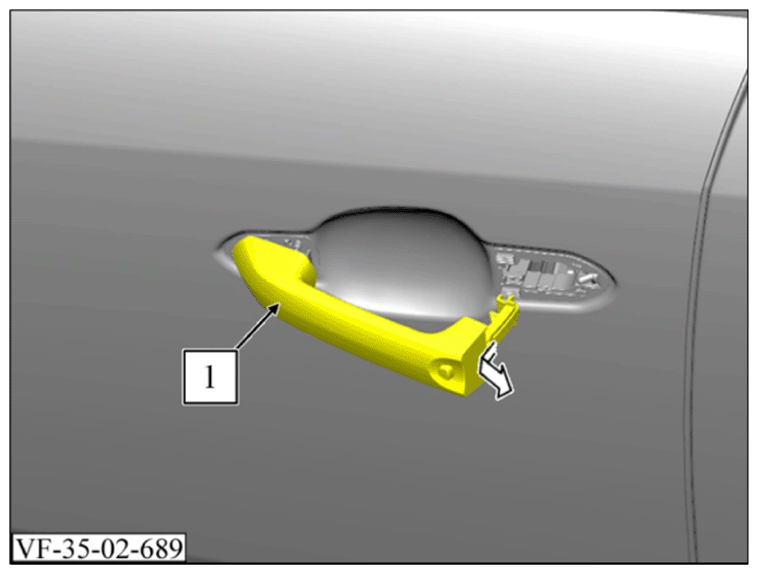

5. Remove the door handle (1) by pulling it out as far as possible and rearward as indicated be the arrow.

Installation Procedure:

Courtesy of VINFAST, LLC

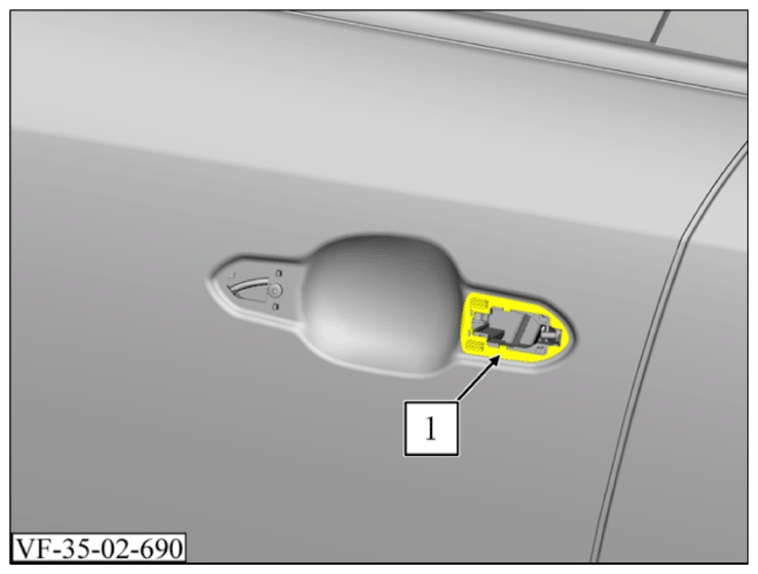

1. Check that the seal (1) is positioned correctly.

   Courtesy of VINFAST, LLC

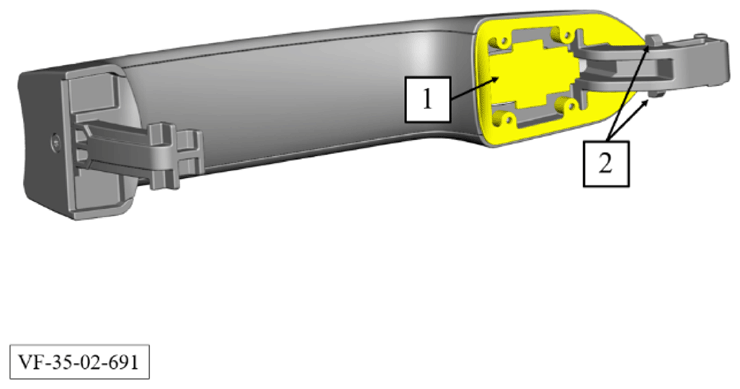

2. Check that the seal (1) is positioned correctly.
3. Check the retainers (2) for damage.

   Courtesy of VINFAST, LLC

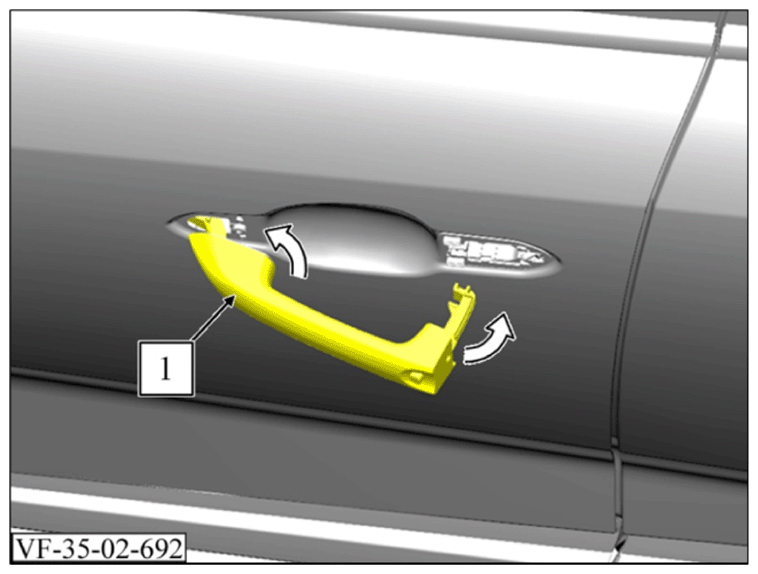

4. Install the door handle (1) by first guiding the front in the direction of the arrow and then the rear.

   Courtesy of VINFAST, LLC

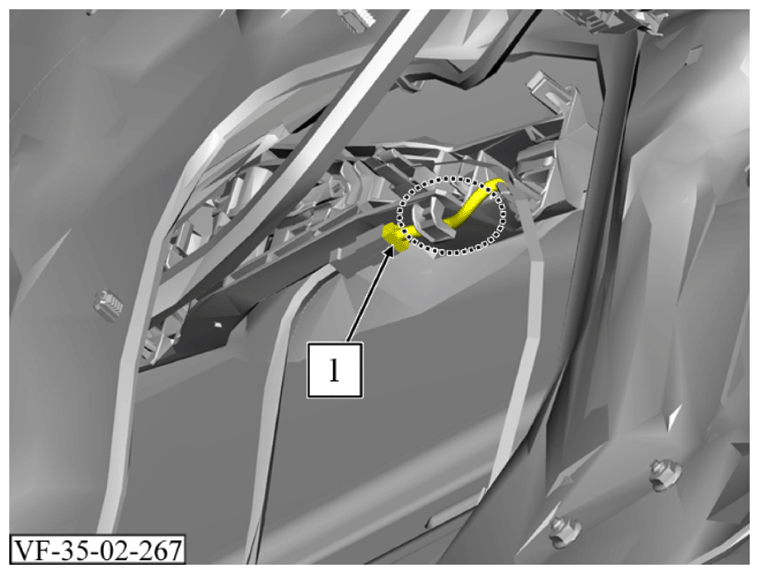

5. Driver Side: Guide in and connect the electrical connector (1) as indicated.
6. Driver Side: Install front side door lock cylinder. Refer to FRONT SIDE DOOR LOCK CYLINDER REMOVAL AND INSTALLATION/REPLACEMENT
7. Passenger Side: Install side door handle cap. Refer to SIDE DOOR HANDLE CAP REMOVAL AND INSTALLATION/REPLACEMENT
