Side Door Handle Cap Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Courtesy of VINFAST, LLC

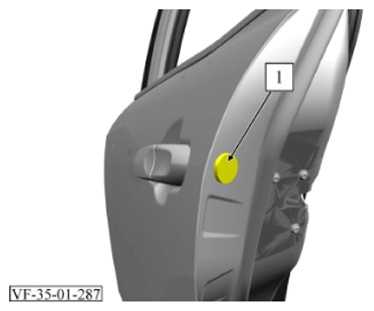

1. Open the side door and remove the plug (1).

   Courtesy of VINFAST, LLC

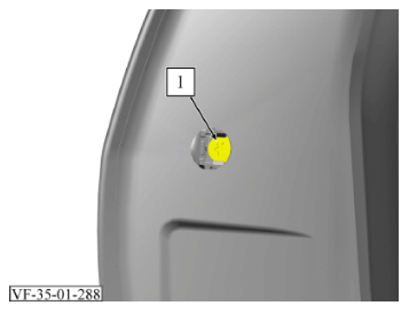

2. Loosen bolt (1), do not remove.

   Torque: 2.6 Nm

   Courtesy of VINFAST, LLC

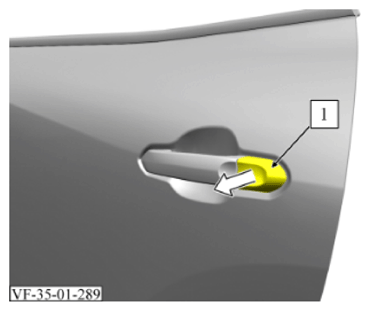

3. Remove the door handle cap (1) in the direction of the arrow.

Installation Procedure:

Courtesy of VINFAST, LLC

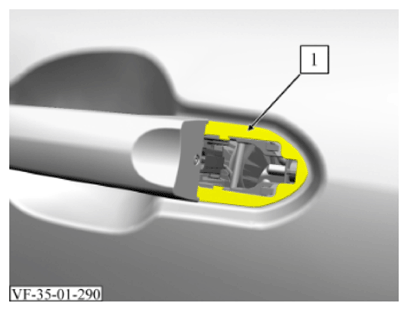

Installation note: Check seal (1) for correct seating.

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
