Cruise Control Main Switch: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT CRUISE CONTROL MAIN SWITCH

Remove the cruise control main switch (See REMOVAL ).
Measure the resistance according to the value(s) in the table below.

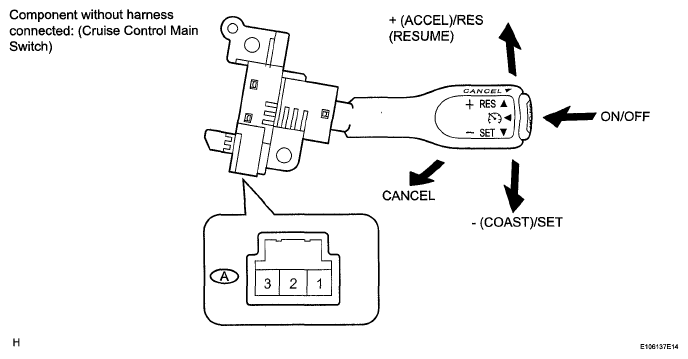

Fig 1: Identifying Cruise Control Main Switch Function Position

G05419698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
A-3 (CCS) - A-1 (ECC)	Neutral	10 kΩ or higher
A-3 (CCS) - A-1 (ECC)	+ (ACCEL)/RES (RESUME)	235 to 245 Ω
A-3 (CCS) - A-1 (ECC)	- (COAST)/SET	617 to 643 Ω
A-3 (CCS) - A-1 (ECC)	CANCEL	1509 to 1571 Ω
A-3 (CCS) - A-1 (ECC)	Main switch on	Below 2.5 Ω

If the result is not as specified, replace the cruise control main switch.
