Washer Fluid-Level Sensor Inspection

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Verify that continuity between the washer fluid-level sensor terminals is as indicated in the table.

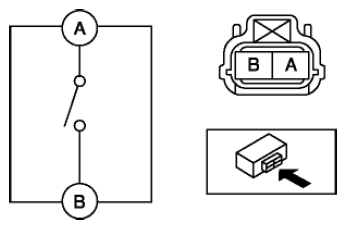

Fig 1: Identifying Washer Fluid-Level Sensor Connector Terminals
- If not as specified, replace the washer fluid-level sensor. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)

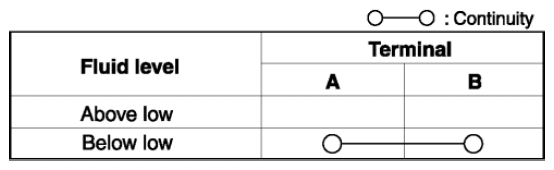

  Fig 2: Washer Fluid-Level Sensor Connector Terminals Continuity Chart
