Washer Fluid-Level Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

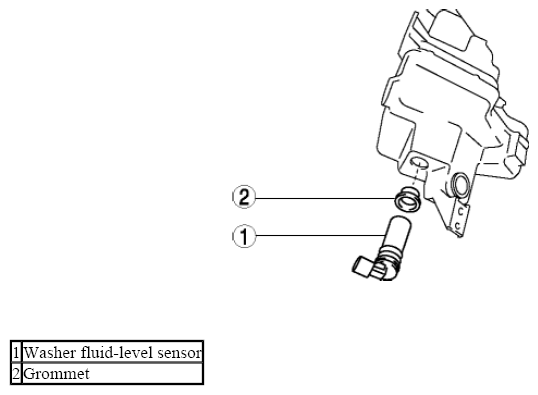

    Fig 1: Washer Fluid-Level Sensor And Grommet
    G08144913
  5. Install in the reverse order of removal.
