Audio Control Module (ACM) Removal/Installation

WARNING: This page is about a different variant/trim than selected.

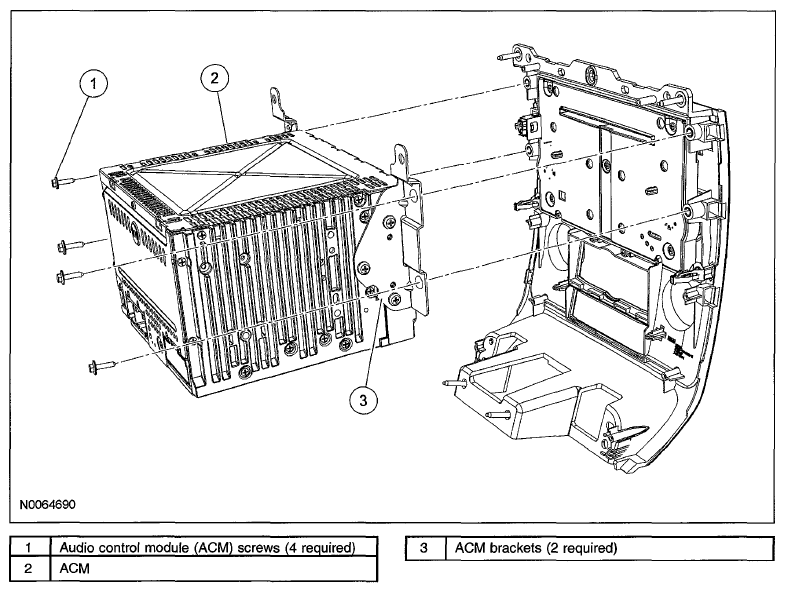

Fig 1: Identifying ACM, ACM Brackets And Screws

Courtesy of MAZDA MOTORS CORP.

Upload the audio control module (ACM) configuration to the scan tool. See PROGRAMMABLE MODULE INSTALLATION (PMI) .
NOTE:
- Module configuration is only required if a new ACM is being installed.
Remove the middle instrument panel center finish panel. See INSTRUMENT PANEL - EXPLODED VIEW .
Remove the 4 screws.
Remove the 2 ACM brackets.
NOTE:
- Only carry out this step if installing a new ACM.
Remove the ACM.
To install, reverse the removal procedure.
