Instrument Panel - Exploded View

WARNING: This page is about a different variant/trim than selected.

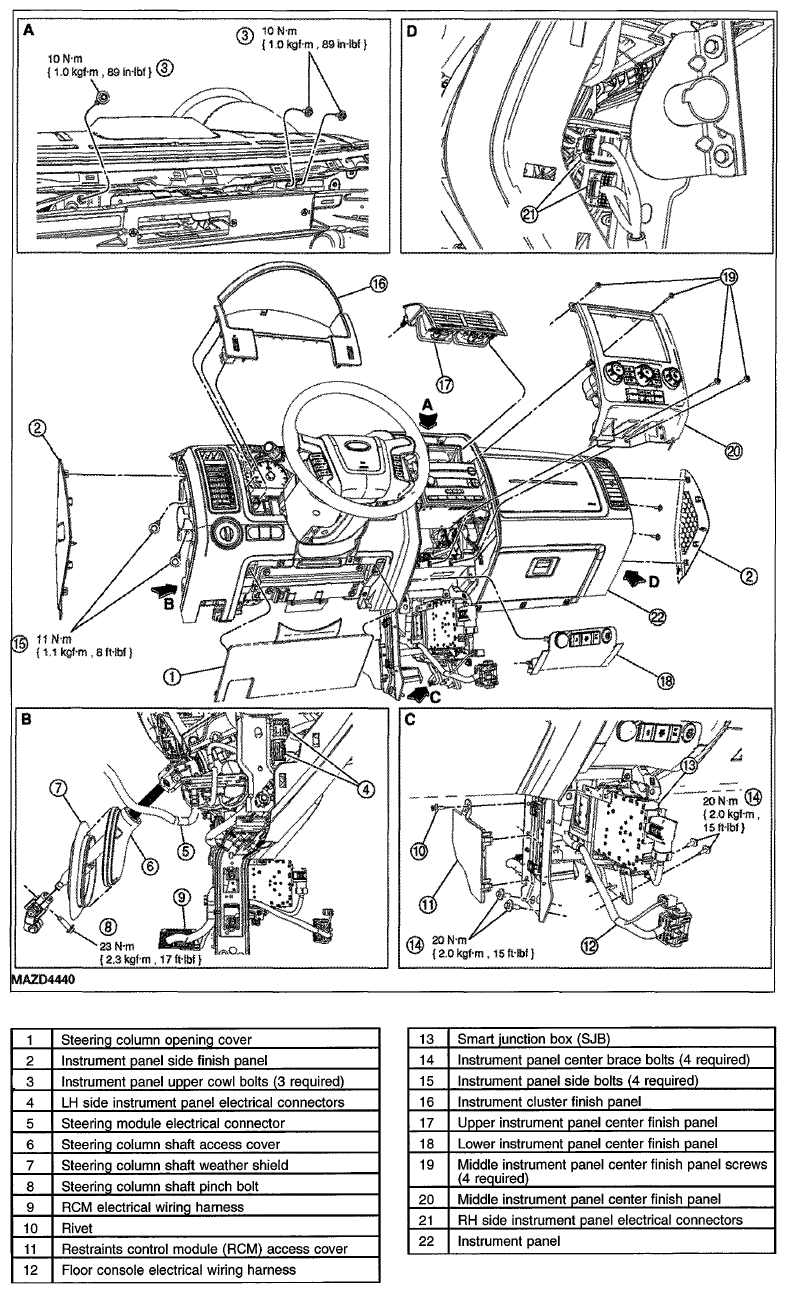

Fig 1: Exploded View Of Instrument Panel With Torque Specifications
G06768223Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the appropriate procedures.
