Inspection Procedure

1. Check for foreign matter around the switch that might prevent operation.

   OK: No foreign matter is found.

1. NG: REMOVE ANY FOREIGN MATTER FOUND
2. OK: Go to next step.

1. Enter the "Display Check" mode (Panel Switch Check Mode) (see DISPLAY CHECK MODE (PANEL SWITCH CHECK)  ).
2. Operate the abnormal switch and check if the switch name and status are correctly displayed.

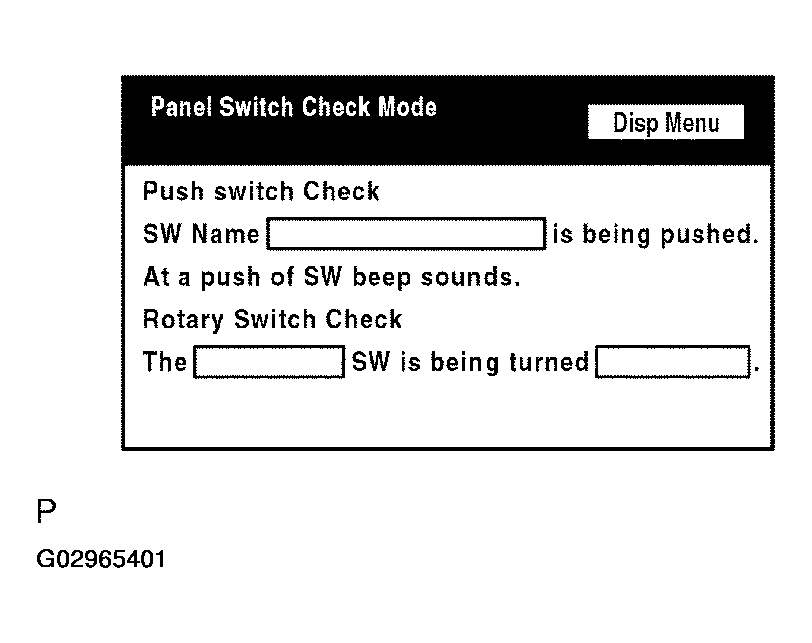

Fig 1: Panel Switch Check Mode Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: The switch name and status are correctly displayed as operated.

1. OK: REPLACE MULTI-DISPLAY (SEE  MULTI-DISPLAY (CRT DISPLAY) DISPLAY  )
2. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE   )
