Display Check Mode (Panel Switch Check)

HINT:

• This mode checks the panel switch operation response on the multi-display.
• Graphics may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   ).
2. Select "Display Check" from the "Diagnosis MENU" screen.

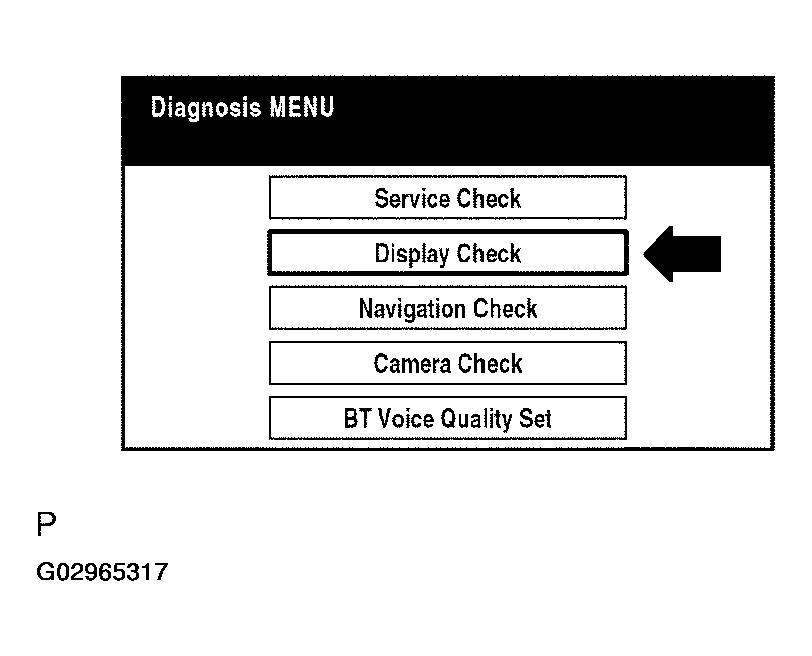

   Fig 1: Identifying Diagnosis MENU" Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Panel Switch Check" from the "Display Check" screen.

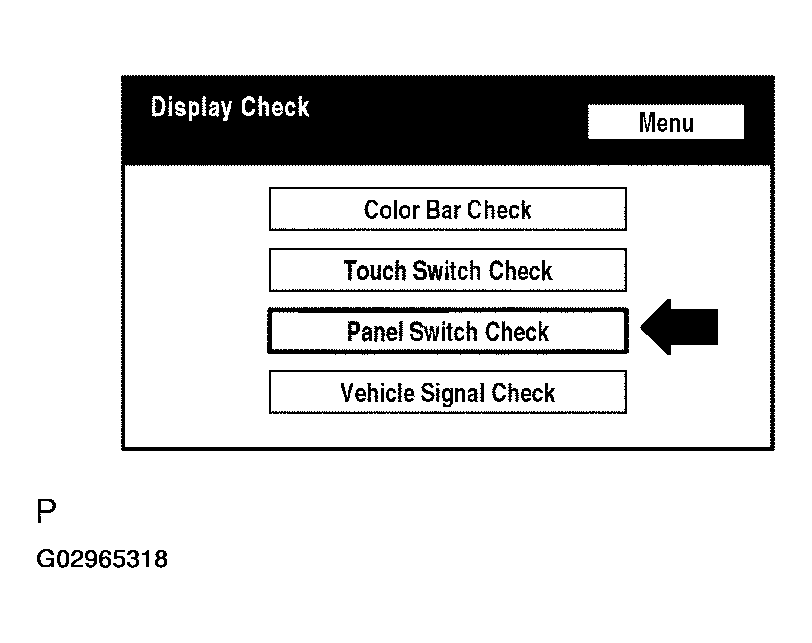

   Fig 2: Identifying Display Check" Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Operate each switch and check that the switch name and condition are correctly displayed.

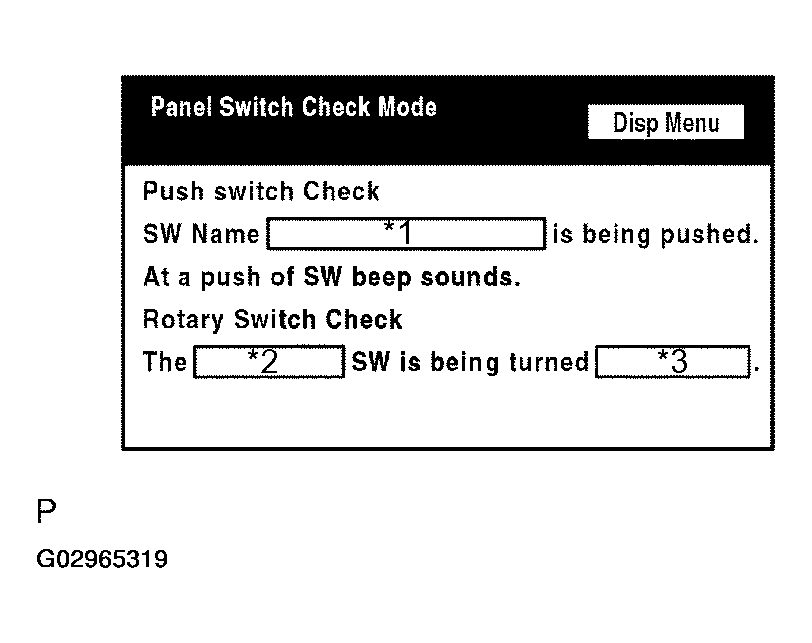

   Fig 3: Identifying Switch Check Mode Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

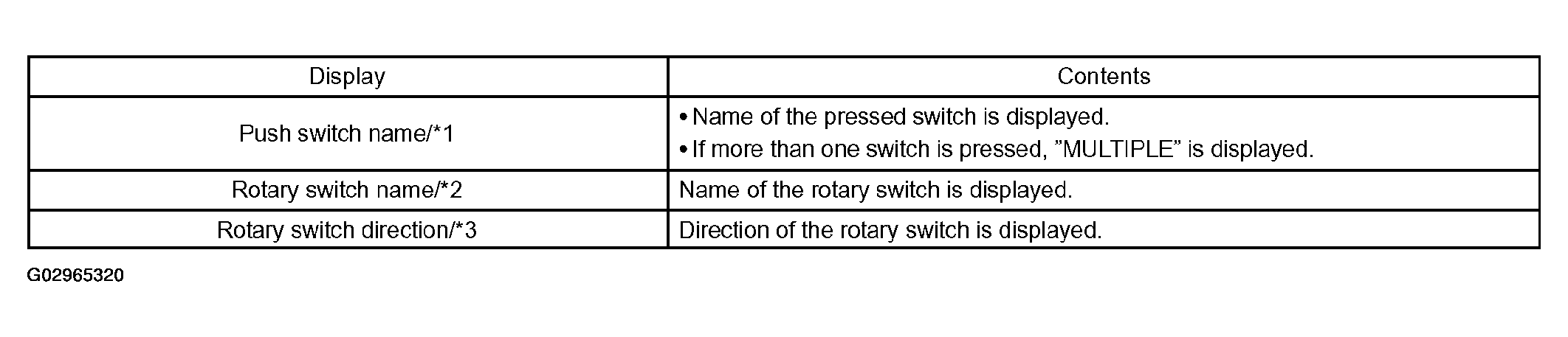

   Fig 4: Display Contents Description Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
