Steering Pad Switch LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See AIR BAG RESTRAINT SYSTEMS
LOCATION : See

DISCONNECT BATTERY NEGATIVE TERMINAL (See AIR BAG RESTRAINT SYSTEMS )
REMOVE HORN BUTTON ASSY (See AIR BAG RESTRAINT SYSTEMS )
REMOVE STEERING PAD SWITCH LH

Disconnect the connector.
Remove the screw.

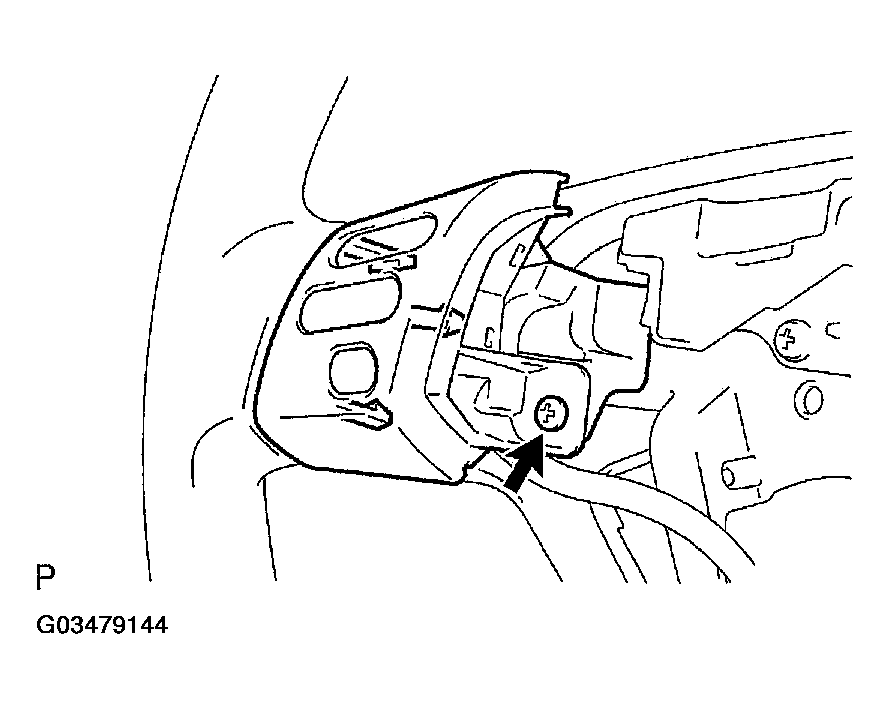

Fig 1: Removing Steering Pad Switch LH

G03479144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 2 claws and the pin.
Remove the steering pad switch LH.
