Section 431 (Audio & Visual System)
>>
Audio & Visual System
>>
Location
Audio & Visual System: Location
WARNING:
This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

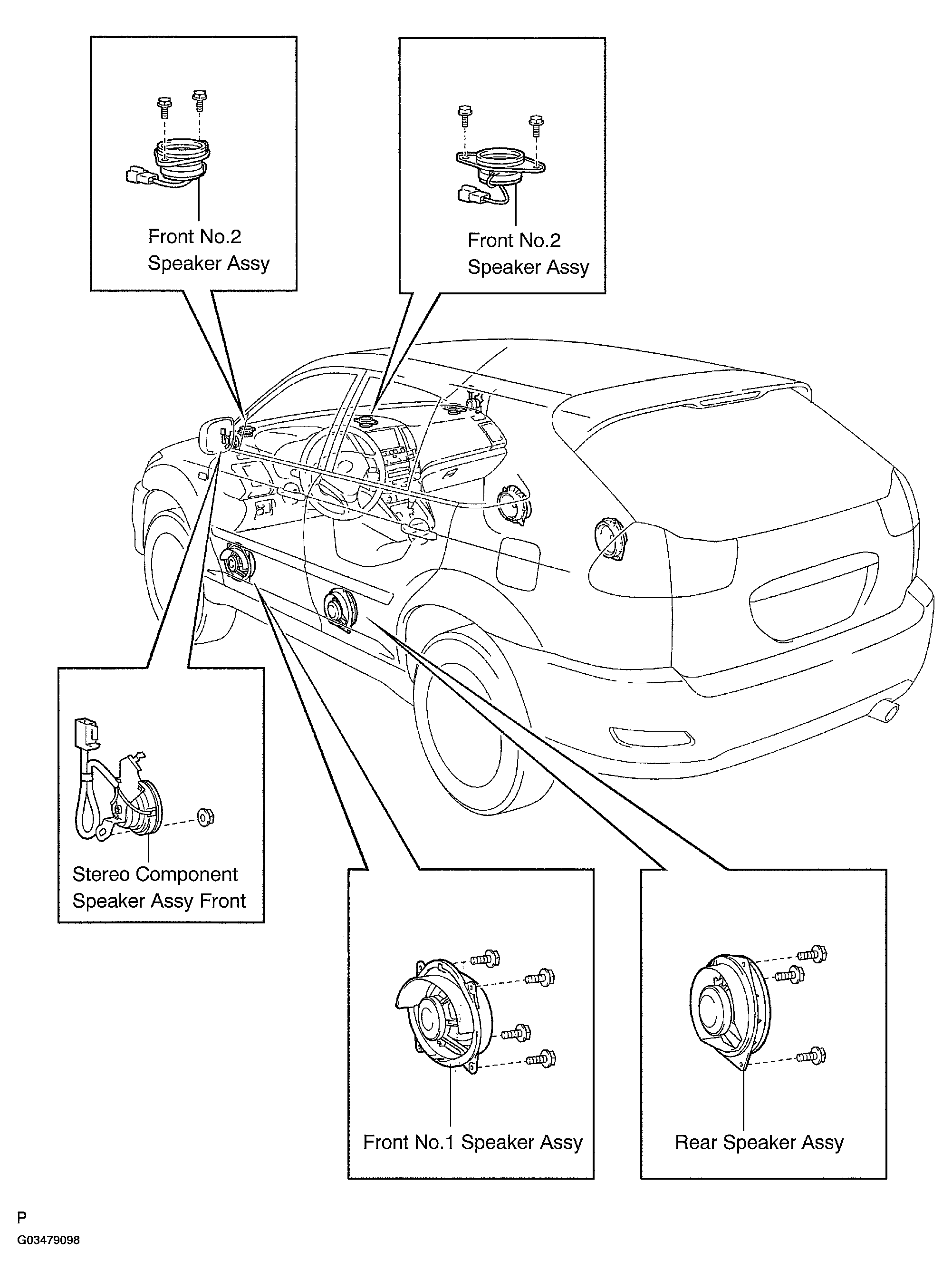

Fig 1: Locating Audio And Visual System Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

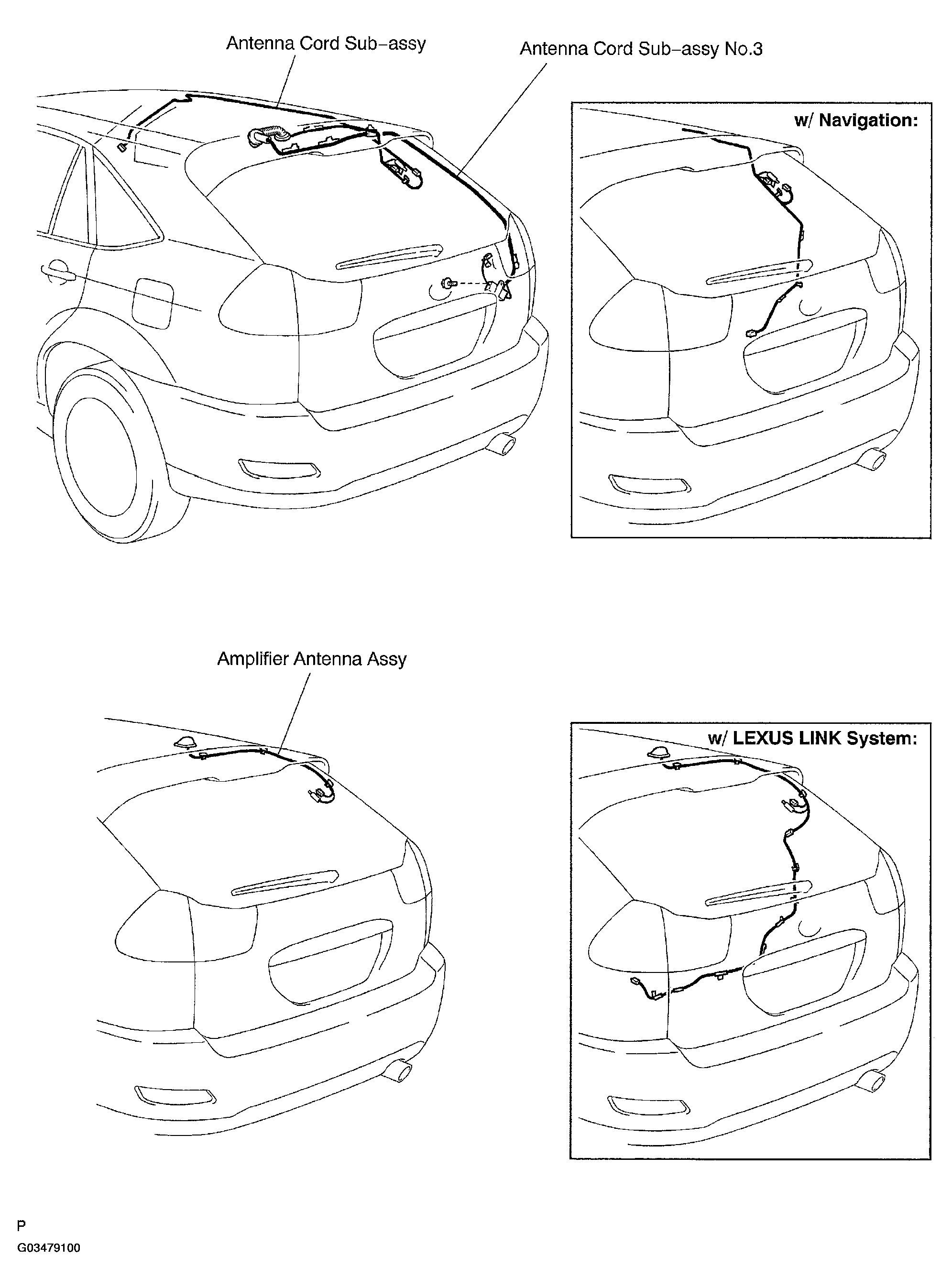

Fig 2: Locating Audio And Visual System Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

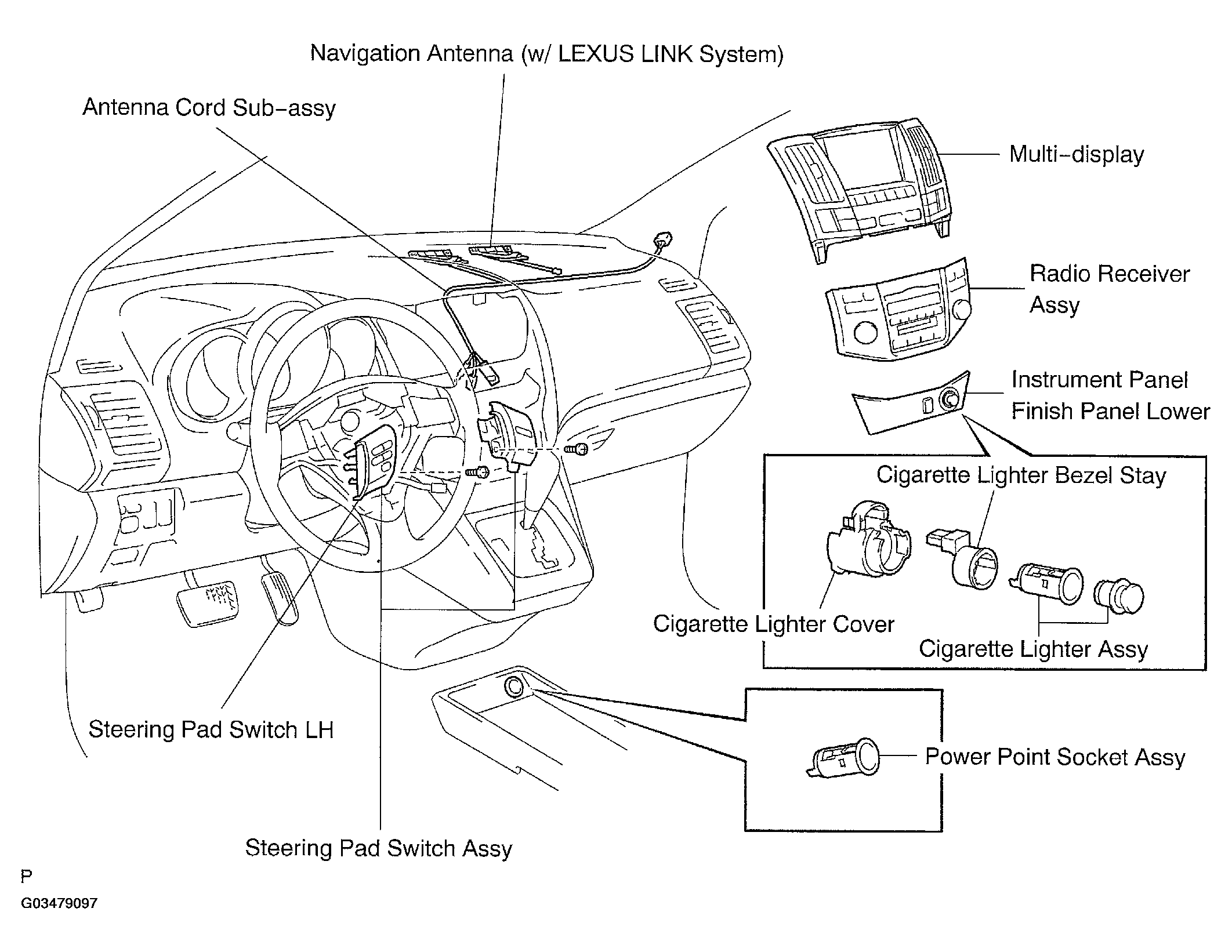

Fig 3: Locating Audio And Visual System Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

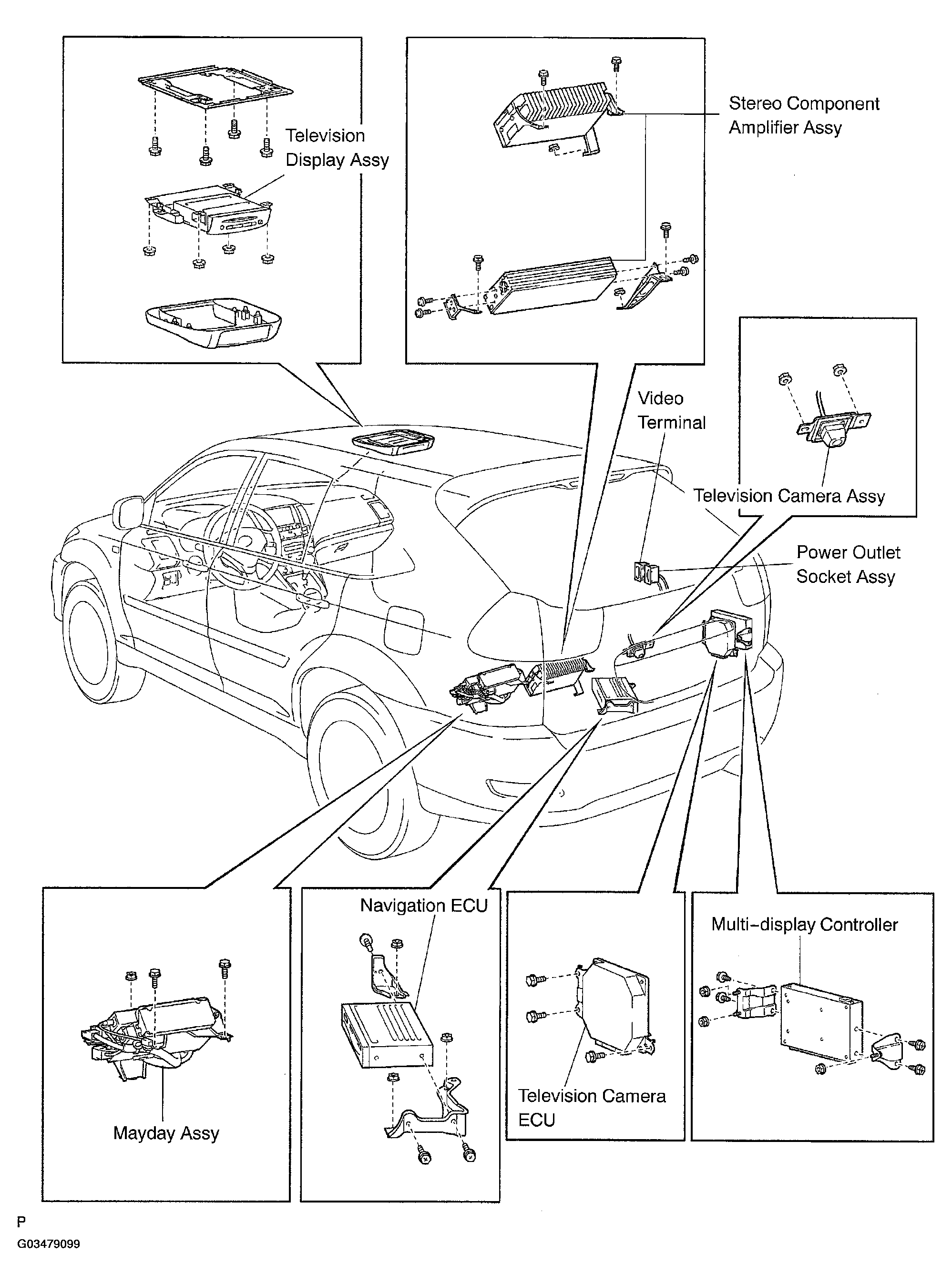

Fig 4: Locating Audio And Visual System Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
