Transmission Range Switch Monitoring

For transmission range switch monitoring information, see Fig 1.

NOTE: This monitor covers information for DTC P0705.

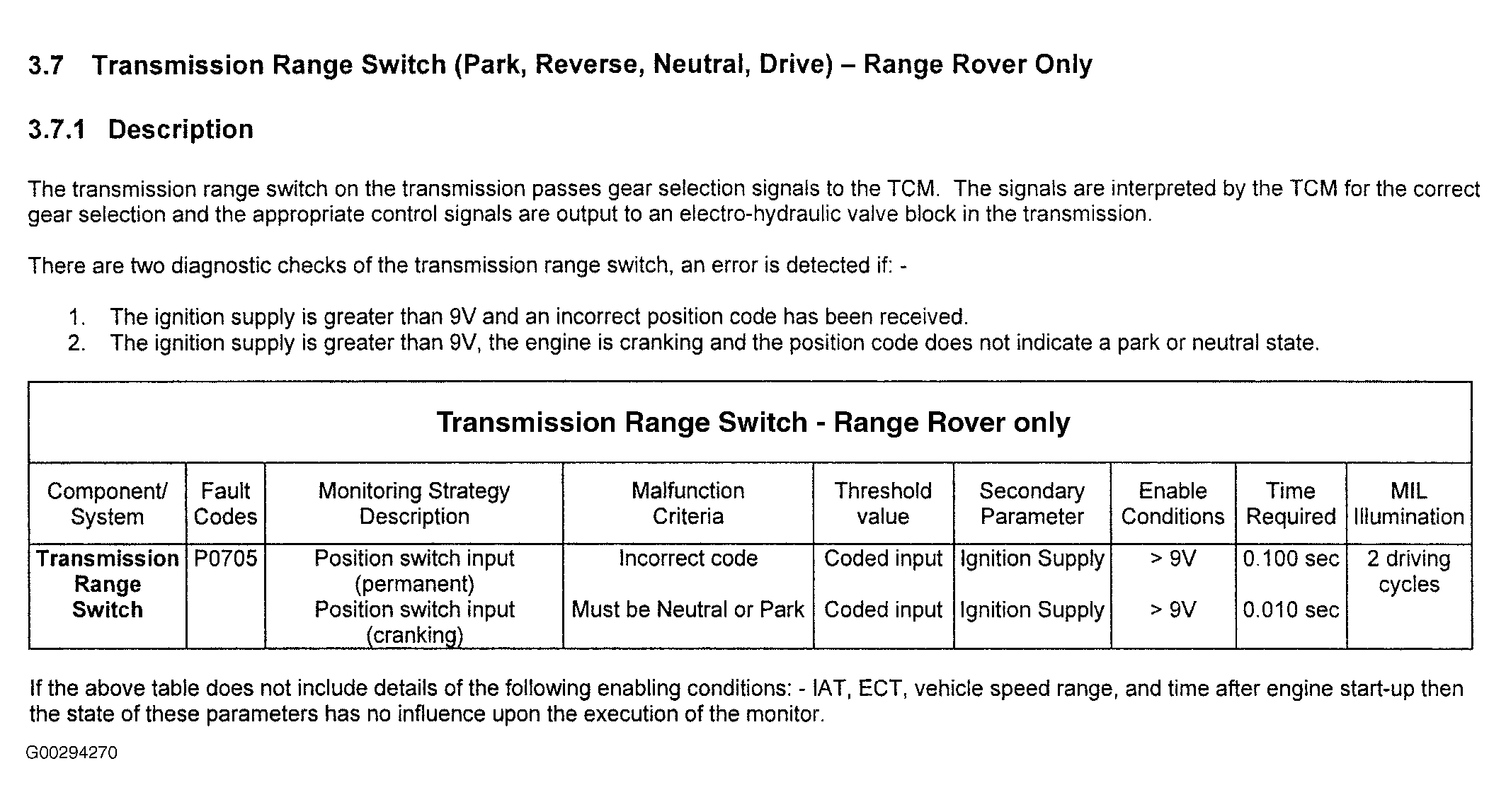

Fig 1: Transmission Range Switch Monitoring
G00294270Courtesy of LAND ROVER NORTH AMERICA, INC.
