Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

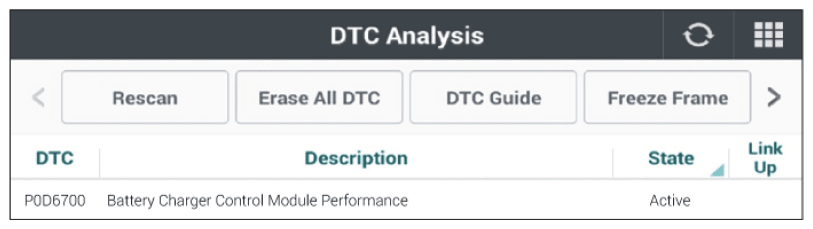

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig. 1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace control unit that causing the fault and then go to "VERIFICATION OF REPAIR " procedure.
* If a module is replaced, perform the relevant "Vehicle S/W Management" procedure.

History/Pending Fault

Re-perform the relevant diagnostic procedure and then go to "VERIFICATION OF REPAIR " procedure.
