Exploded View
For Replacement of components listed below, see Repair Procedure
| *1: With Monocular Camera Driver Support System *2: With Camera Heater *3: Part(s) are shown for one side only as the procedure is the same for both sides. |
| *1: With Automatic Dimming Mirror |

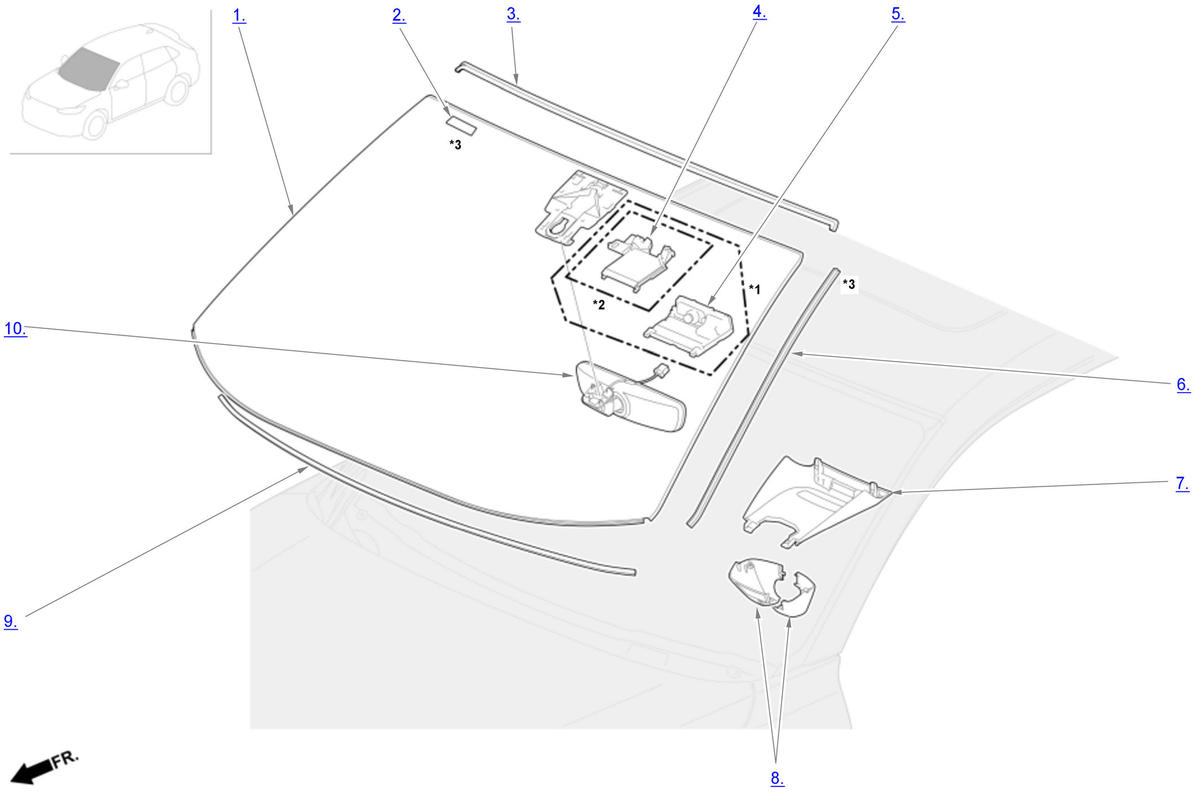

Windshield Area
| Component Name | Callout |
|---|---|
| Windshield | 1 |
| Clip | 2 |
| Windshield Upper Molding | 3 |
| Camera Heater and Camera Heater Bracket | 4 |
| Multipurpose Camera Unit | 5 |
| Windshield Side Molding | 6 |
| Camera Cover | 7 |
| Camera Cover lid | 8 |
| Dashboard Seal | 9 |

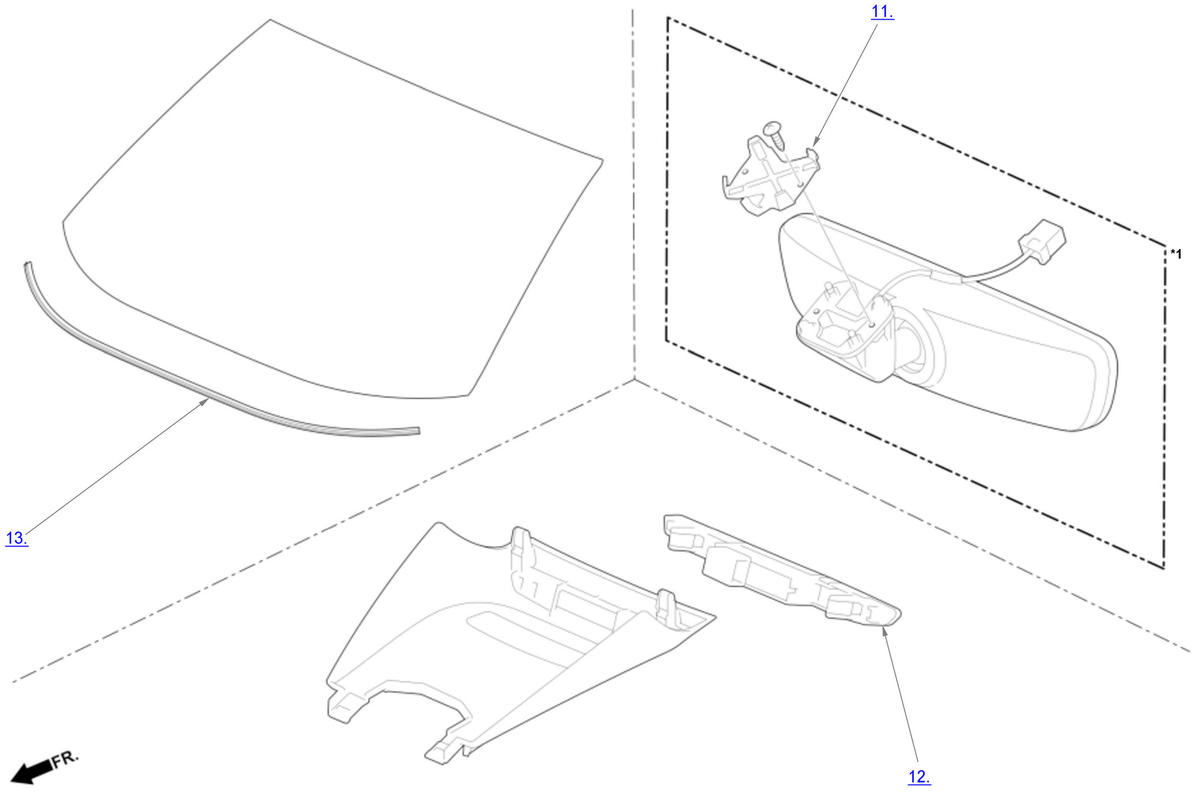

| Rearview Mirror | 10 |
| Mount Spring | 11 |
| Front Passenger's Airbag Cutoff Indicator | 12 |
| Windshield Lower Molding | 13 |
