Repair Procedure

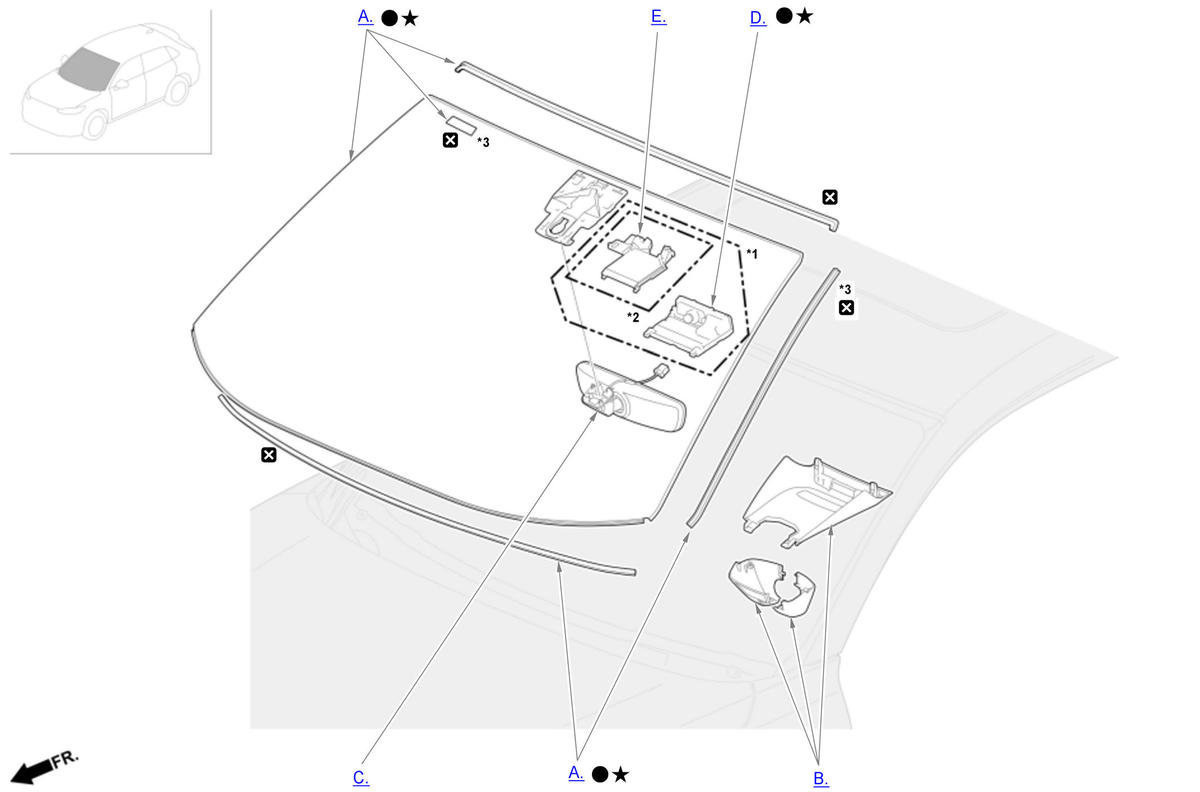

How to use this service information .

GHH543680Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With Monocular Camera Driver Support System
*2: With Camera Heater
*3: Part(s) are shown for one side only as the procedure is the same for both sides.

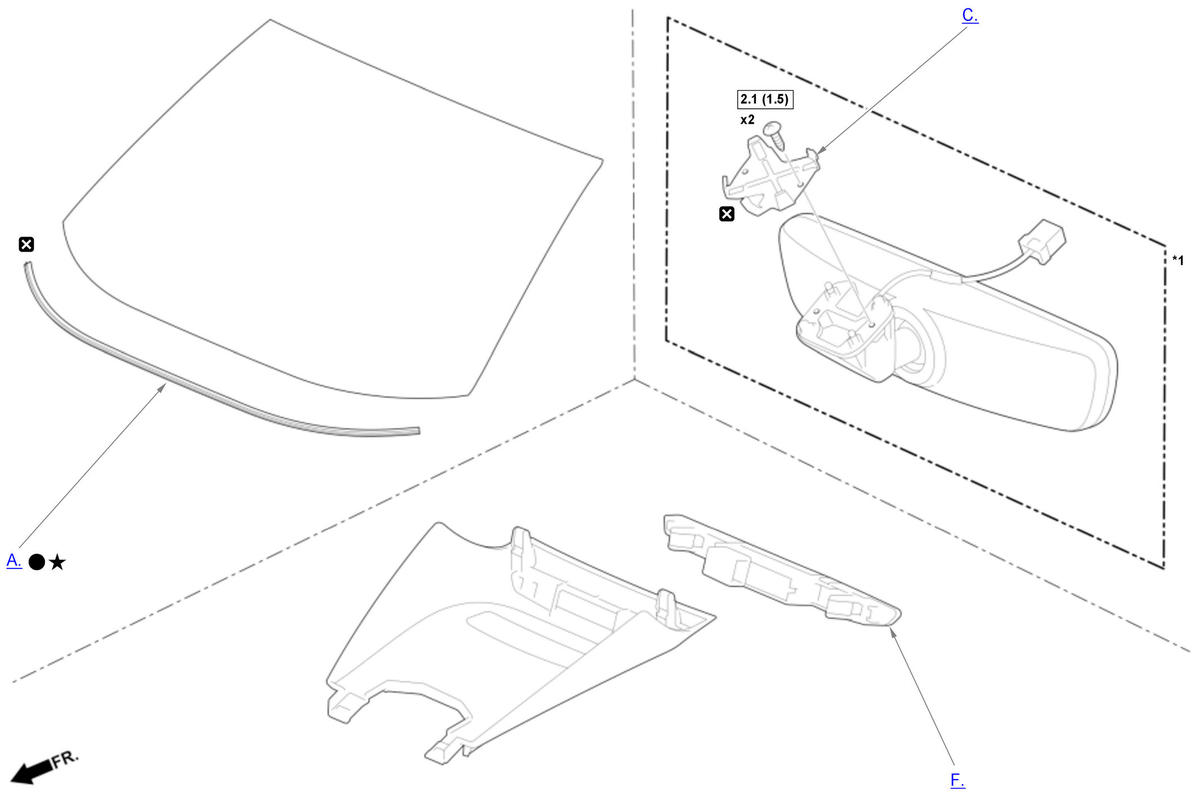

GHH543681Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With Automatic Dimming Mirror
  1. A.-

    NOTE: Do not bend the headliner. Bending the headliner will crease and damage it.

    Key Information

    Do the following before starting your work.

    Remove:

    Sub-Procedure

    Removal

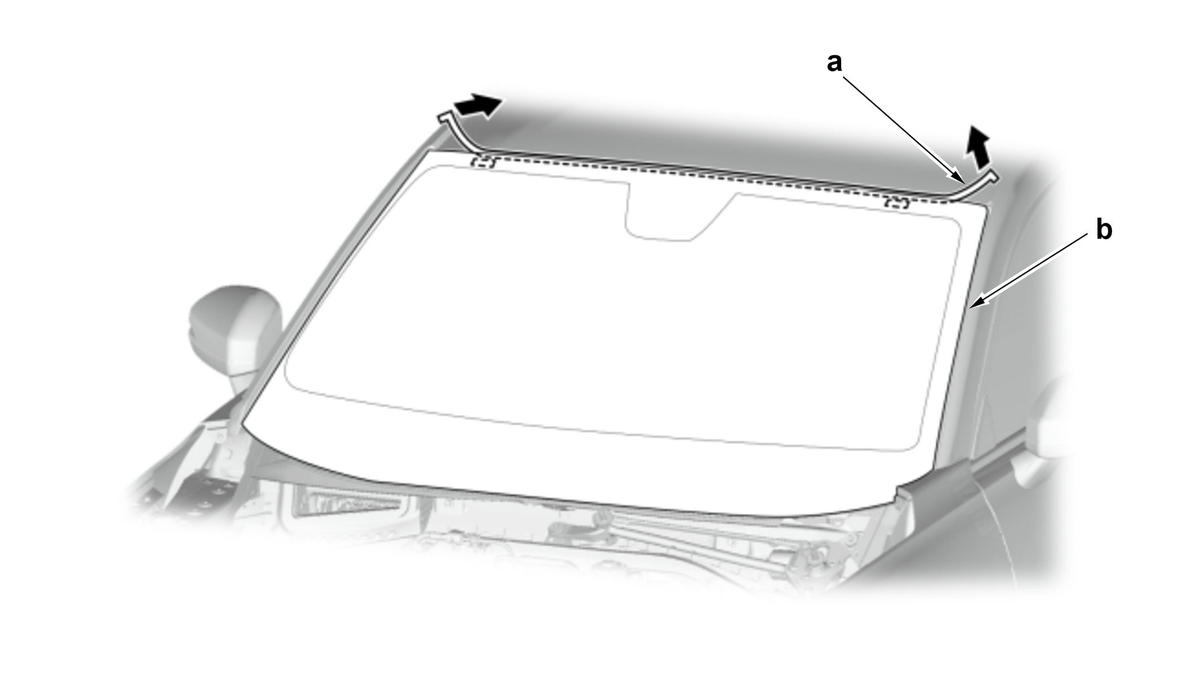

    1. Remove the windshield upper molding (a) from the upper edge of the windshield (b). If necessary, cut off the molding with a utility knife. (Figure 1)

    Figure 1

    GHH543682Courtesy of HONDA, U.S.A., INC.

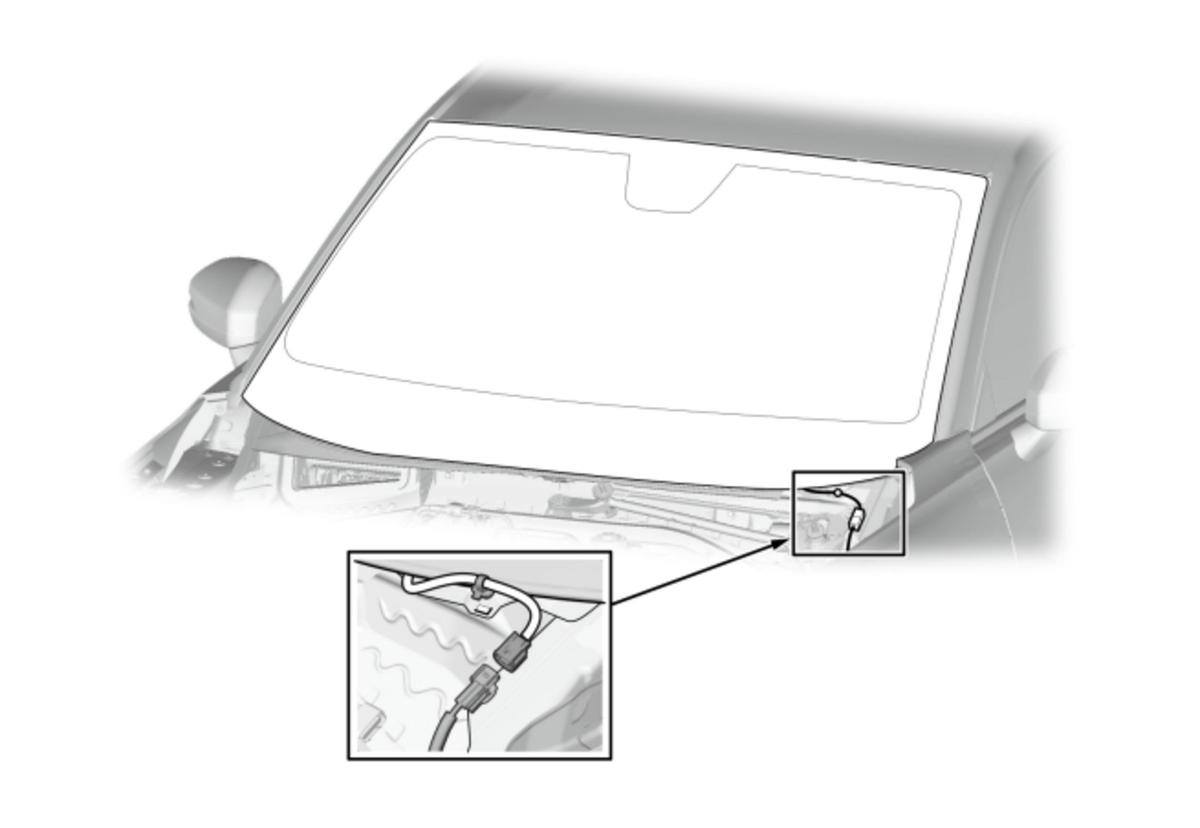

    2. Disconnect the connector. (For some models) (Figure 2)

    Figure 2

    GHH543683Courtesy of HONDA, U.S.A., INC.

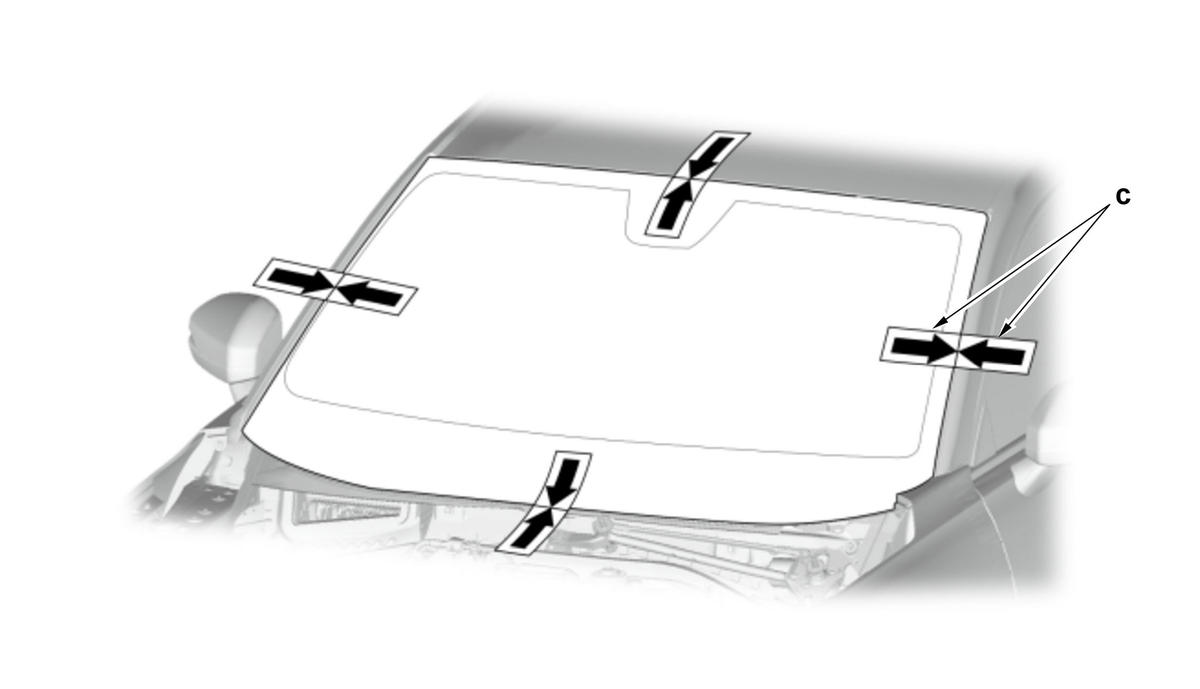

    3. If the original windshield will be reinstalled, make alignment marks (c) across the windshield and the body with a grease pencil. (Figure 3)

    Figure 3

    GHH543684Courtesy of HONDA, U.S.A., INC.

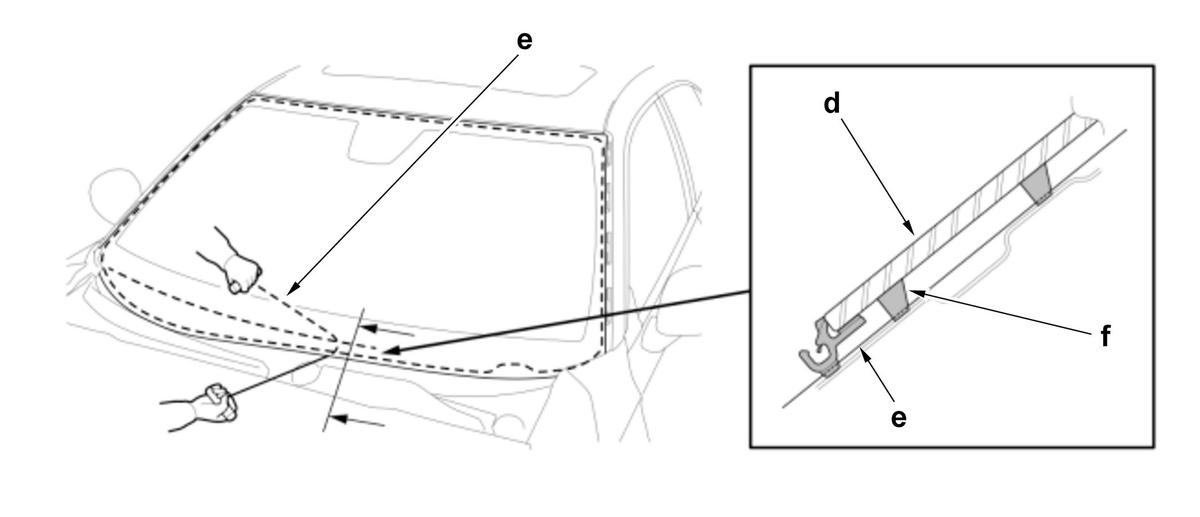

    4. Apply protective tapes along the edge of the dashboard and the body. Make a hole with an awl or similar tool, through the molding and the adhesive from inside the vehicle at a corner of the windshield (d). Push a piece of piano wire (e) through the hole, and wrap each end around a piece of wood. (Figure 4 and 5)

    Figure 4

    GHH543685Courtesy of HONDA, U.S.A., INC.

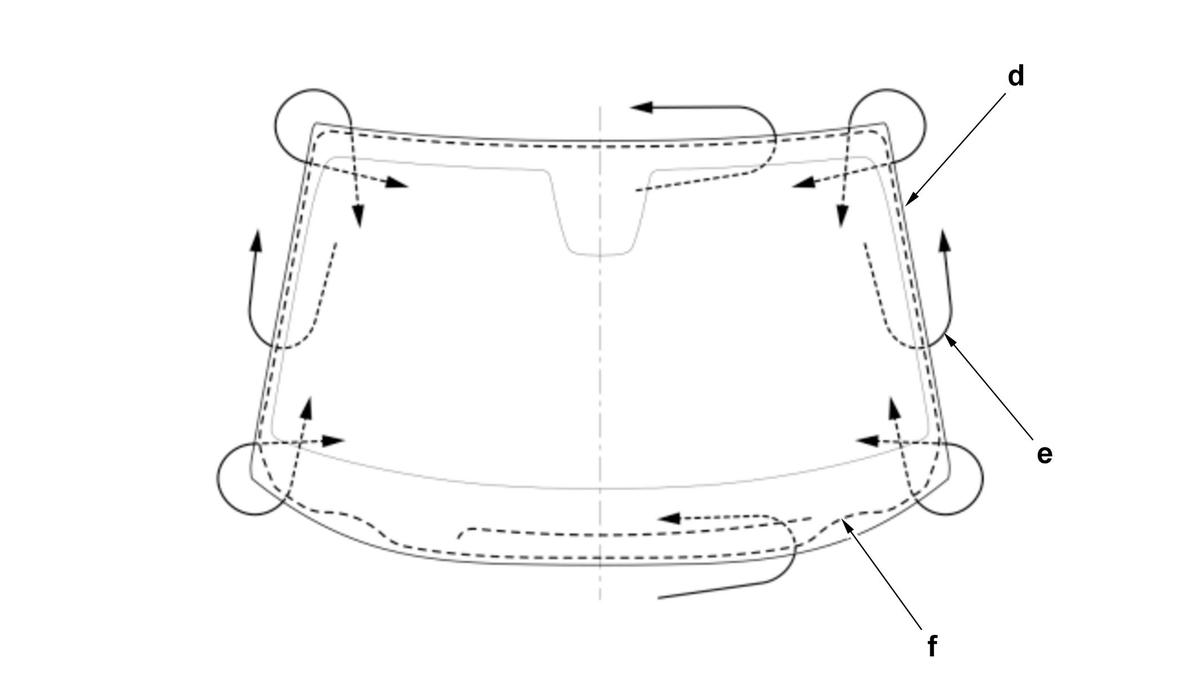

    Figure 5 (Cutting positions)

    GHH543686Courtesy of HONDA, U.S.A., INC.

    5. With an assistant on the outside, pull the piano wire back and forth in a sawing motion. Hold the piano wire as close to the windshield as possible to prevent damage to the body and the dashboard. Carefully cut through the molding and the adhesive (f) around the entire windshield. (Figure 4 and 5)

    6. Carefully remove the windshield.

    7. Scrape the original adhesive smooth to a thickness of about 1 mm (0.04 in) - 2 mm (0.08 in) on the bonding surface around the entire windshield opening flange with a putty knife.

    NOTE:
    • Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    • Remove the molding from the body.

    Installation

    1. Clean the body bonding surface with a shop towel dampened with isopropyl alcohol. After cleaning, do not allow oil, grease, and water to contact on the clean surface.

    2. If you are reinstalling the original windshield, scrape off all of the original adhesive, the clips, the molding, and the dashboard seal from the windshield with a putty knife. Clean the bonding surfaces on the inside face and the edge of the windshield with isopropyl alcohol. Make sure the bonding surface is kept free of water, oil, and grease.

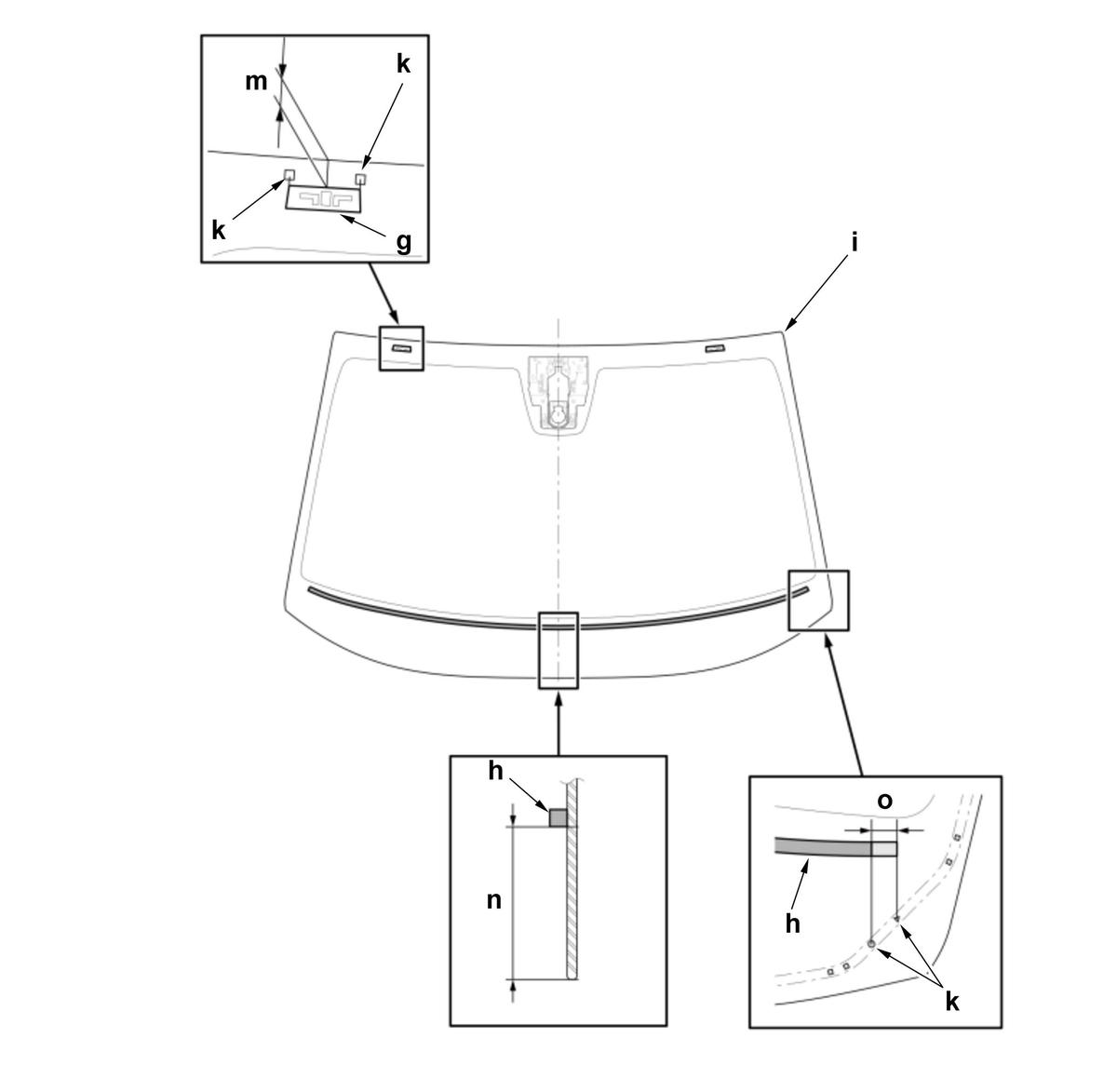

    3. Install the new clips (g) and the dashboard seal (h) with the adhesive tape on the windshield (i) as shown. (Figure 6)

    NOTE:
    • Before installing the clips and the dashboard seal, apply glass primer to the area where the adhesive tape will be applied.
    • Be careful not to touch the windshield where the adhesive will be applied.
    • Install the clips and the dashboard seal to the windshield, using the alignment marks (k) on the windshield as the guides. (Figure 6)

    Dashboard Seal Cutting Length (Figure 6)

    Position Standard Value
    h 1376 mm (54.17 in)

    Fitting Specifications (Figure 6)

    Standard Value
    m 17.3 mm (0.681 in)
    n 130.9 mm (5.154 in)

    Over Flow Allowed Area (Figure 6)

    Standard Value
    o 15 mm (0.59 in)

    Figure 6

    GHH543687Courtesy of HONDA, U.S.A., INC.

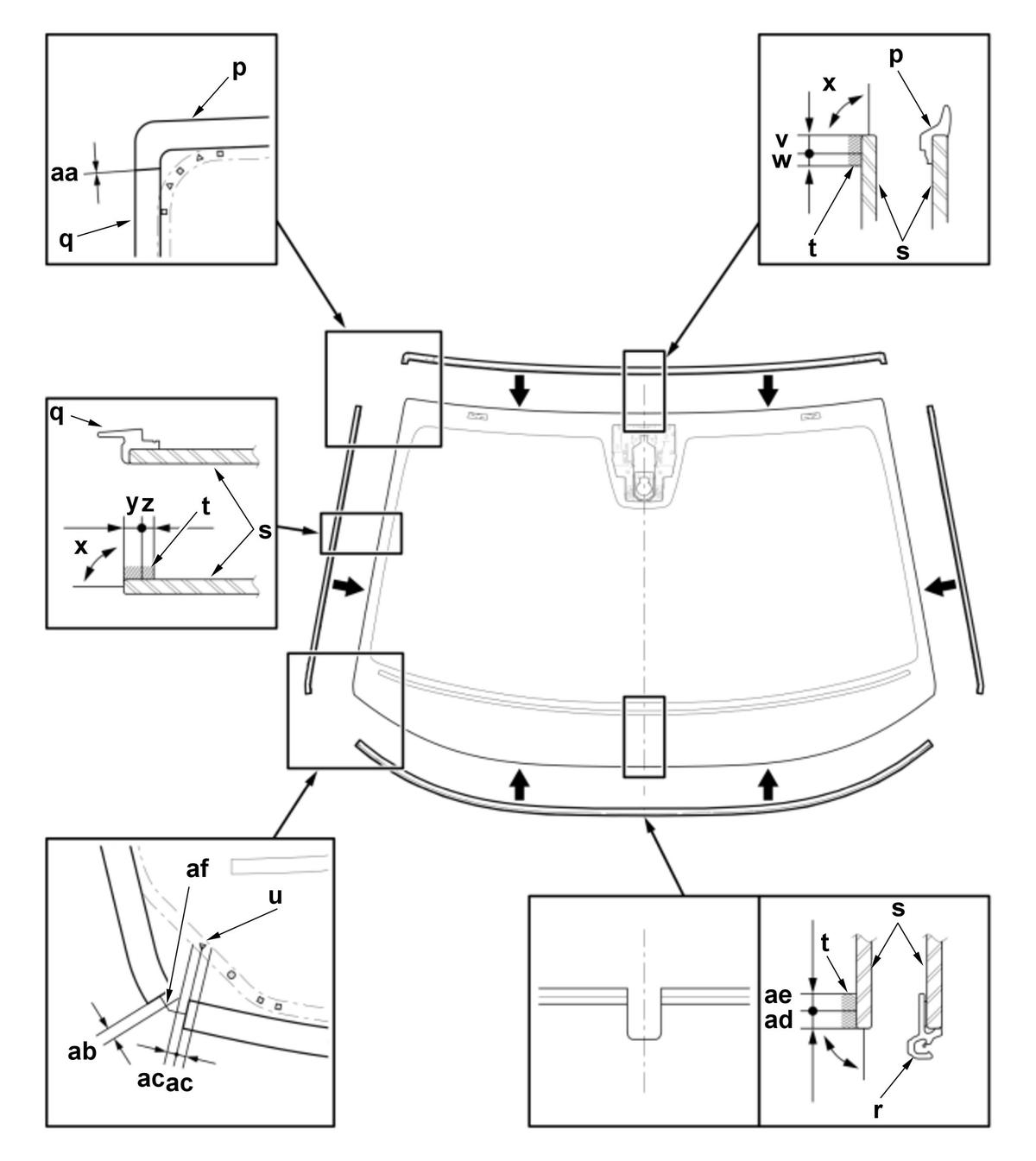

    4. Install the new windshield upper molding (p), windshield side molding (q) and the windshield lower molding (r) with adhesive tape on the windshield (s) as shown. (Figure 7)

    NOTE:
    • Before installing the windshield upper molding, windshield side molding, and the windshield lower molding, apply glass primer (t) to the area where the adhesive tape will be applied. (Figure 7)
    • Be careful not to touch the windshield where the adhesive will be applied.
    • Install the windshield lower molding to the windshield, using the convex portion (u) on the windshield as the guides. (Figure 7)

    Adhesive Specifications (Figure 7)

    Standard Value
    v 6.5 mm (0.256 in)
    w 3 mm (0.12 in) over flow area
    x over flow area
    y 5 mm (0.2 in)
    Standard Value
    z 2 mm (0.08 in) over flow area
    aa 0 mm (0 in)
    ab 0 - 5 mm (0 - 0.2 in)
    ac 0 - 2.5 mm (0 - 0.98 in)
    ad 9.5 mm (0.374 in)
    ae 3.5 mm (0.138 in) over flow area

    Specifications (Figure 7)

    Position Components
    af R tan point

    Figure 7

    GHH543688Courtesy of HONDA, U.S.A., INC.

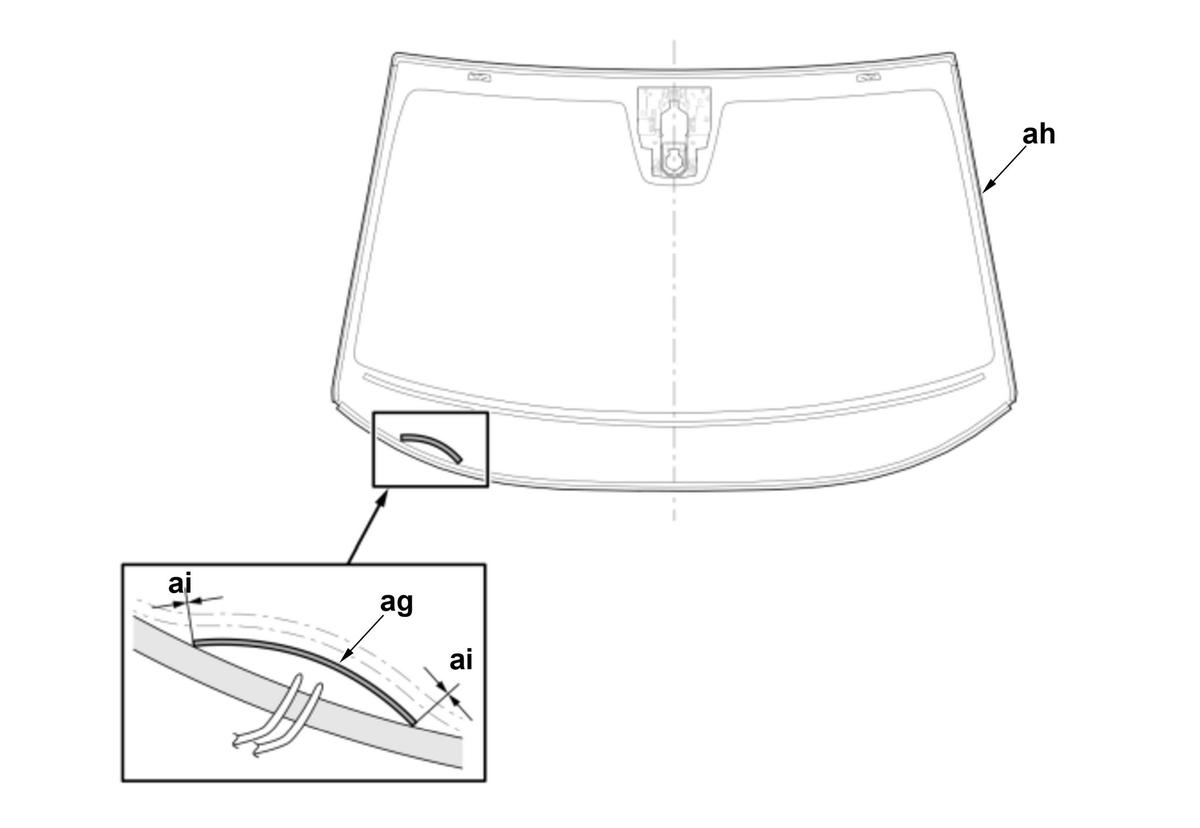

    5. Install the new rubber dam (ag) with adhesive tape on the windshield (ah) as shown. (Figure 8)

    NOTE:
    • Before installing the rubber dam, apply glass primer to the area where the adhesive tape will be applied.
    • Be careful not to touch the windshield where the adhesive will be applied.

    Rubber Dam Cutting Length (Figure 8)

    Position Standard Value
    ag 148 mm (5.83 in)

    Adhesive Specifications (Figure 8)

    Standard Value
    ai 0 mm (0 in)

    Figure 8

    GHH543689Courtesy of HONDA, U.S.A., INC.

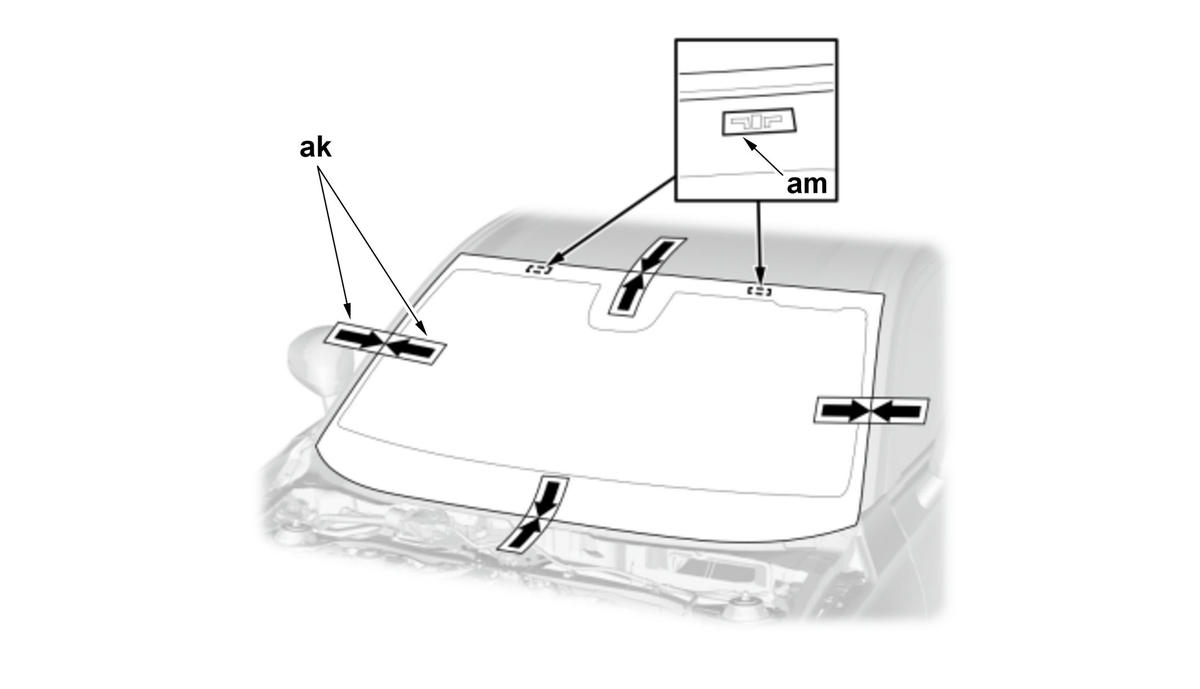

    6. Set the windshield in the opening, and center it. Make alignment marks (ak) across the windshield and the body with a grease pencil at the four points shown. Make sure the upper clips (am) contact with the edge of the body holes. (Figure 9)

    NOTE: Be careful not to touch the windshield where the adhesive will be applied.

    Figure 9

    GHH543690Courtesy of HONDA, U.S.A., INC.

    7. Remove the windshield.

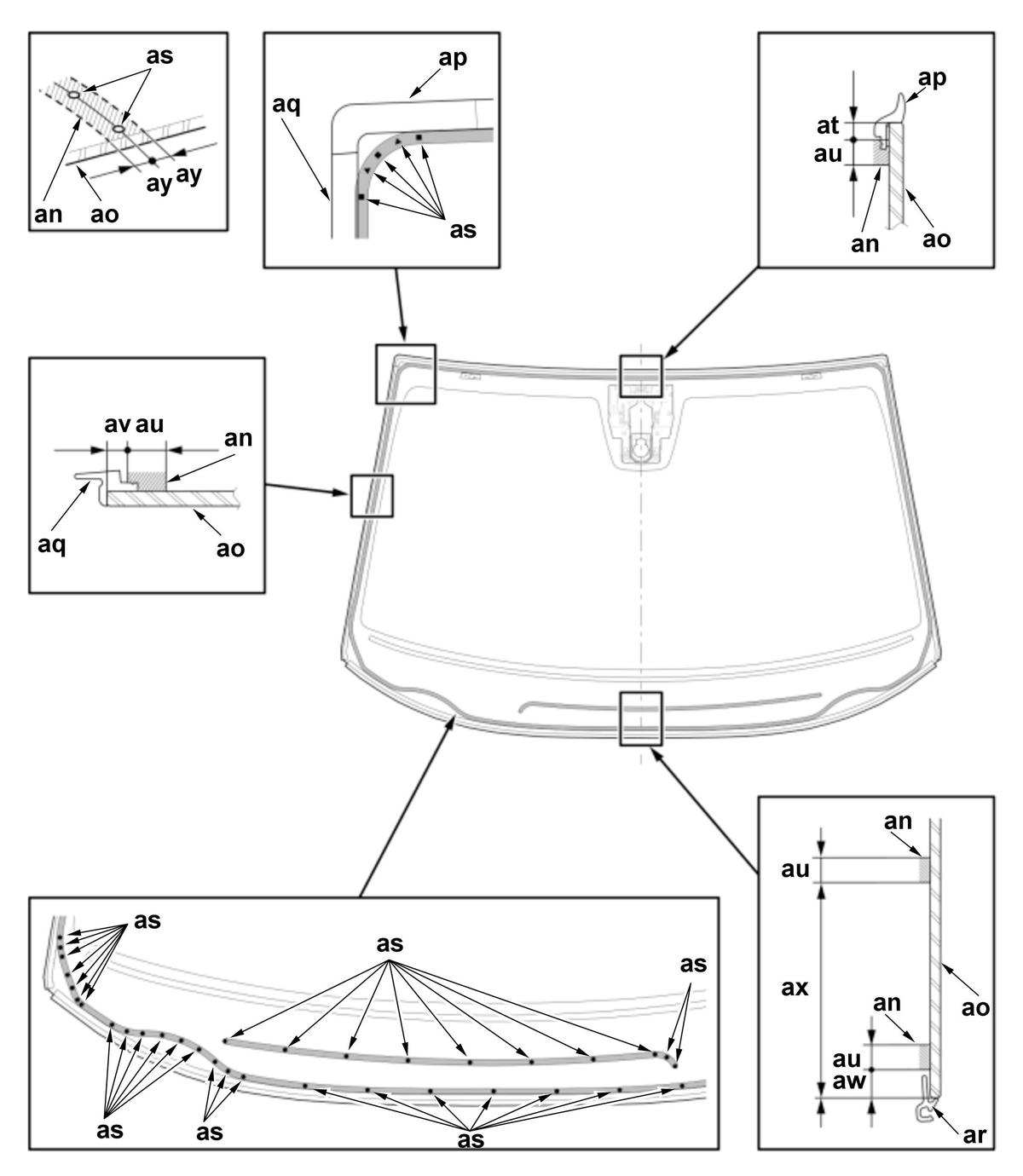

    8. Apply a light coat of primer (an) to the windshield (ao) along the edge of the windshield upper molding (ap), windshield side molding (aq), and windshield lower molding (ar) as shown, then lightly wipe it off with gauze or cheesecloth. (Figure 10)

    NOTE:
    • Apply the primer to corner areas of the windshield using the printed marks (as) on the windshield as a guide. (Figure 10)
    • Apply primer to the molding.
    • Do not apply body primer to the windshield, and do not mix up the body and glass primer applicators.
    • Never touch the primed surfaces with your hands. If you do, the adhesive may not bond to the windshield properly, causing a leak after the windshield is installed.
    • Keep water, dust, and abrasive materials away from primed surfaces.

    Specifications (Figure 10)

    Standard Value
    at 5.9 mm (0.232 in)
    au 11 mm (0.43 in)
    av 3.5 mm (0.138 in)
    aw 9.5 mm (0.374 in)
    ax 57.6 mm (2.268 in)
    ay 5.5 mm (0.217 in)

    Figure 10

    GHH543691Courtesy of HONDA, U.S.A., INC.

    9. Carefully apply a light coat of body primer to any exposed paint or metal around the flange where new adhesive will be applied. Let the primer dry for at least 10 minutes.

    NOTE:
    • Do not apply the glass primer to the body.
    • Do not apply body primer to any remaining original adhesive on the flange.
    • Cover on the dashboard before applying the body primer.
    • Be careful not to mix up the body and glass primer applicators.
    • Never touch the primed surfaces with your hands.

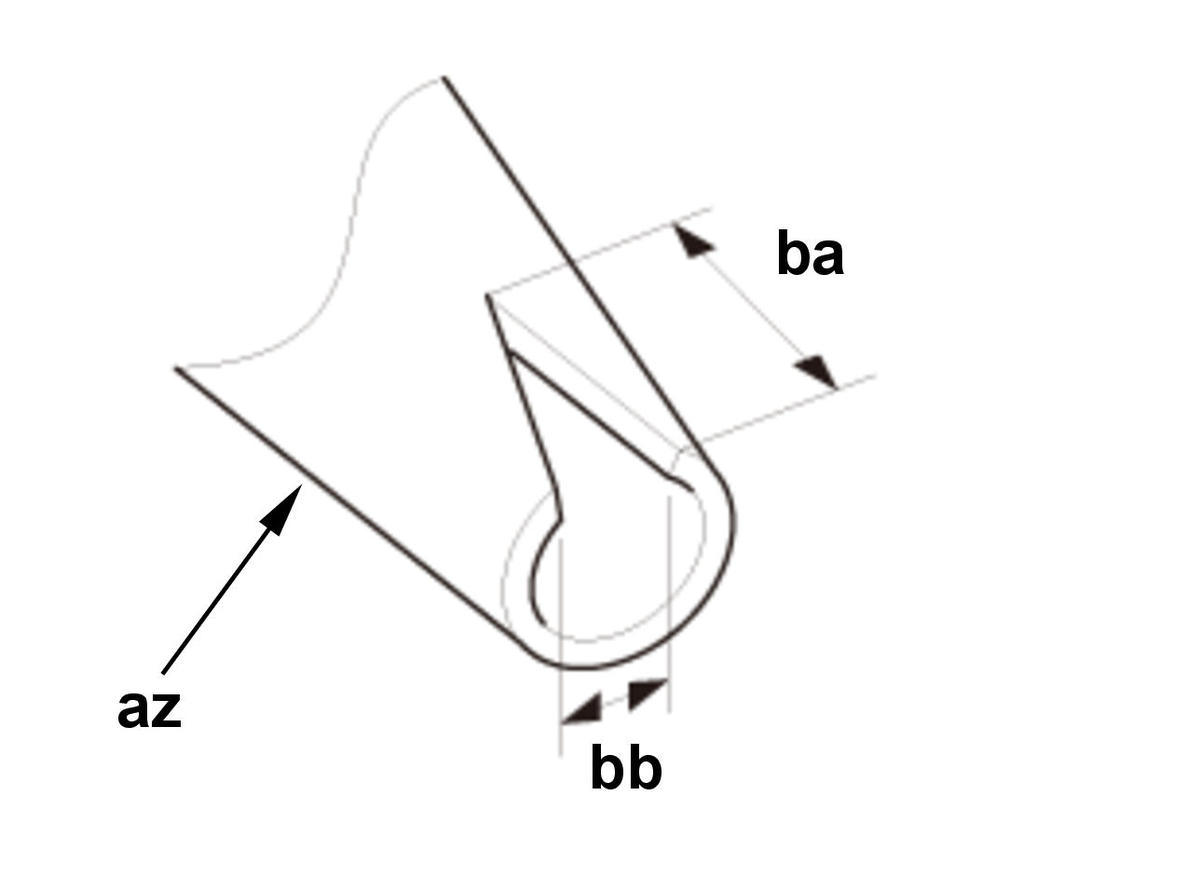

    10. Cut a "V" in the end of the nozzle (az) on the adhesive cartridge as shown. (Figure 11)

    Specifications (Figure 11)

    Standard Value
    ba 12 mm (0.47 in)
    bb 7 mm (0.28 in)

    Figure 11

    GHH543692Courtesy of HONDA, U.S.A., INC.

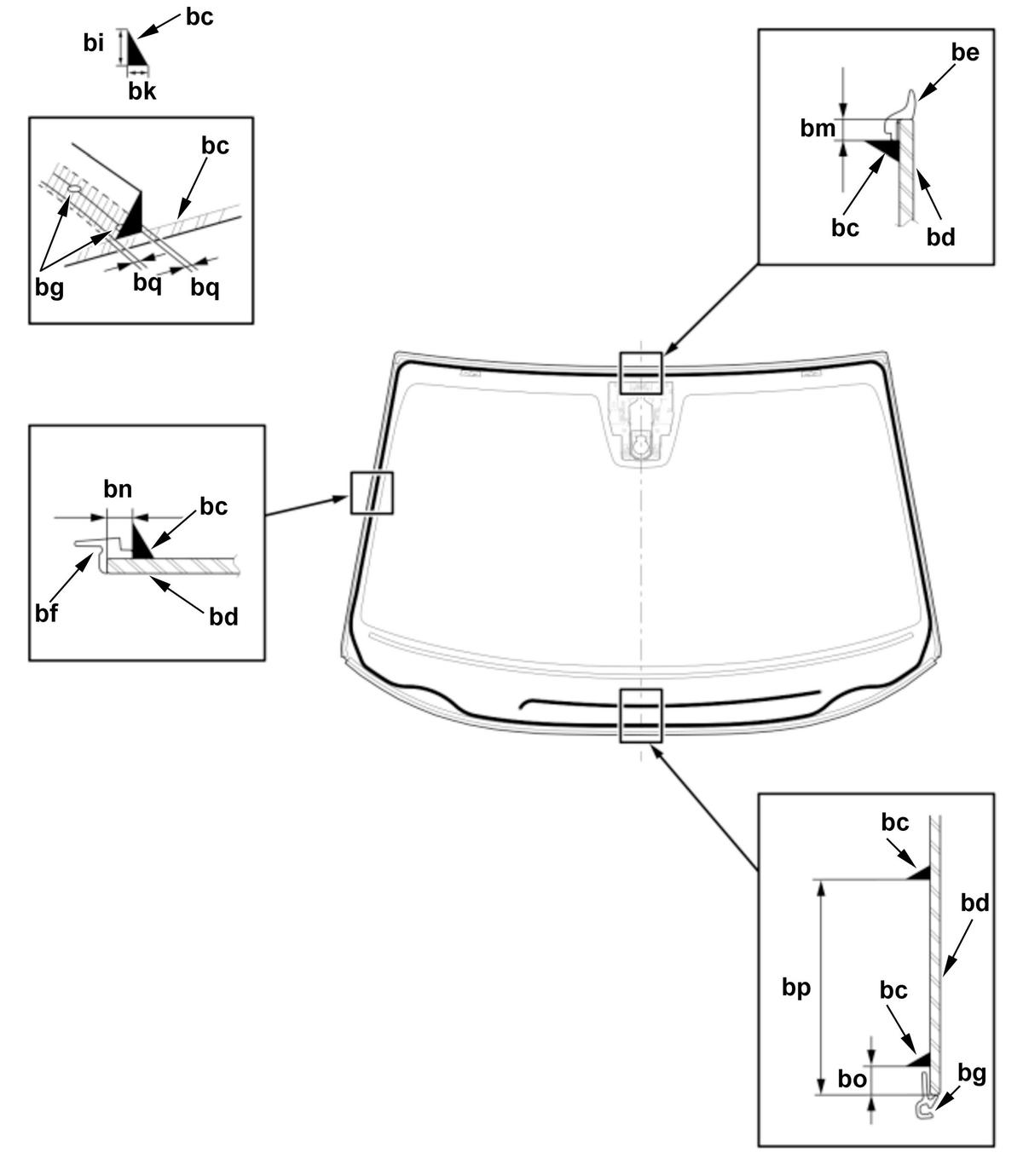

    11. Put the cartridge in a caulking gun, and run a continuous bead of adhesive (bc) on the windshield (bd) along the edge of the windshield upper molding (be), windshield side molding (bf), and the windshield lower molding (bg) as shown. (Figure 12)

    NOTE:
    • Apply the adhesive within 30 minutes after applying the glass primer.
    • Apply the adhesive to the using the printed marks (bh) on the windshield as a guide. (Figure 12)
    • Make a slightly thicker bead at each corner.

    Specifications (Figure 12)

    Standard Value
    bi 12 mm (0.47 in)
    bk 7 mm (0.28 in)
    bm 7.9 mm (0.311 in)
    bn 5.5 mm (0.217 in)
    bo 11.5 mm (0.453 in)
    bp 59.6 mm (2.346 in)
    bq 2 mm (0.08 in)

    Figure 12

    GHH543693Courtesy of HONDA, U.S.A., INC.

    12. Hold the windshield with suction cups over the opening, align it with the alignment marks made, and set it down on the adhesive. Lightly push on the windshield until its edges are fully seated on the adhesive all the way around. Carefully remove the suction cups.

    NOTE:

    Do not open or close any of the doors for about an hour until the adhesive is dry.

    13. Remove the excess adhesive with a putty knife or a shop towel dampened with isopropyl alcohol.

    14. Wait at least an hour for the adhesive to dry, then spray water over the windshield and check for leaks. Mark the leaking areas, let the windshield dry, then seal with sealant: Let the vehicle stand for at least 4 hours after windshield installation. If the vehicle has to be used within the first 4 hours, it must be driven slowly.

    15. Advise the customer not to do the following things for 2 to 3 days:

    • Slam the doors with all the windows rolled up.
    • Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).

    16. With multipurpose camera unit: Multipurpose Camera Unit Update - Refer to: Multipurpose Camera Aiming(Dynamic Camera Aiming) or Multipurpose Camera Aiming(Static Camera Aiming) or Multipurpose Camera Unit Update 17. With multipurpose camera unit: Multipurpose Camera Aiming - Refer to: Multipurpose Camera Aiming(Dynamic Camera Aiming) or Multipurpose Camera Aiming(Static Camera Aiming) or Multipurpose Camera Unit Update

  2. B.-

    Sub-Procedure

    Removal

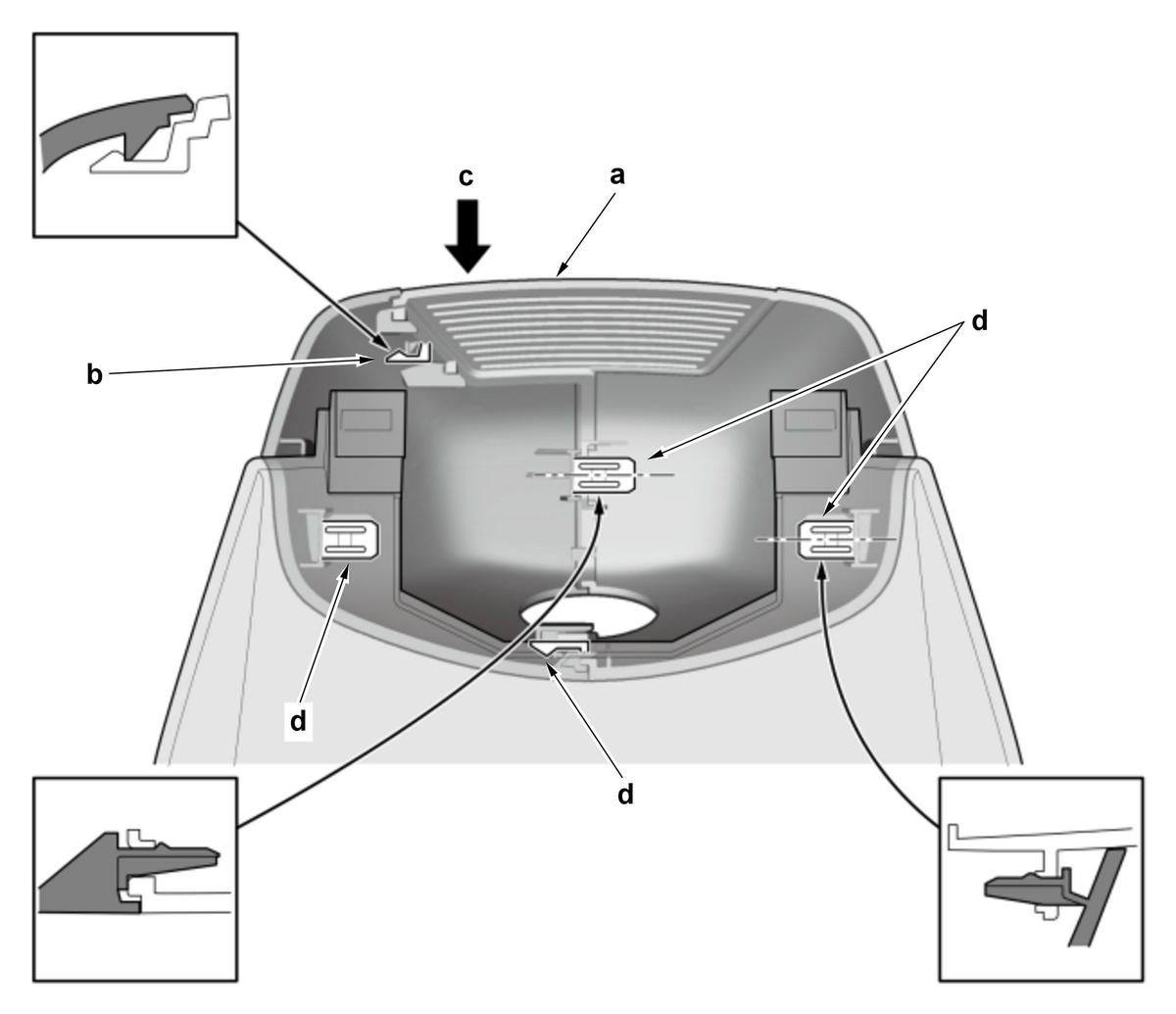

    1. Press the camera cover lid (a) and the hook (b) release. (Figure 1)

    Removal Directions (Figure 1)

    Position Direction
    c Press

    Figure 1

    GHH543694Courtesy of HONDA, U.S.A., INC.

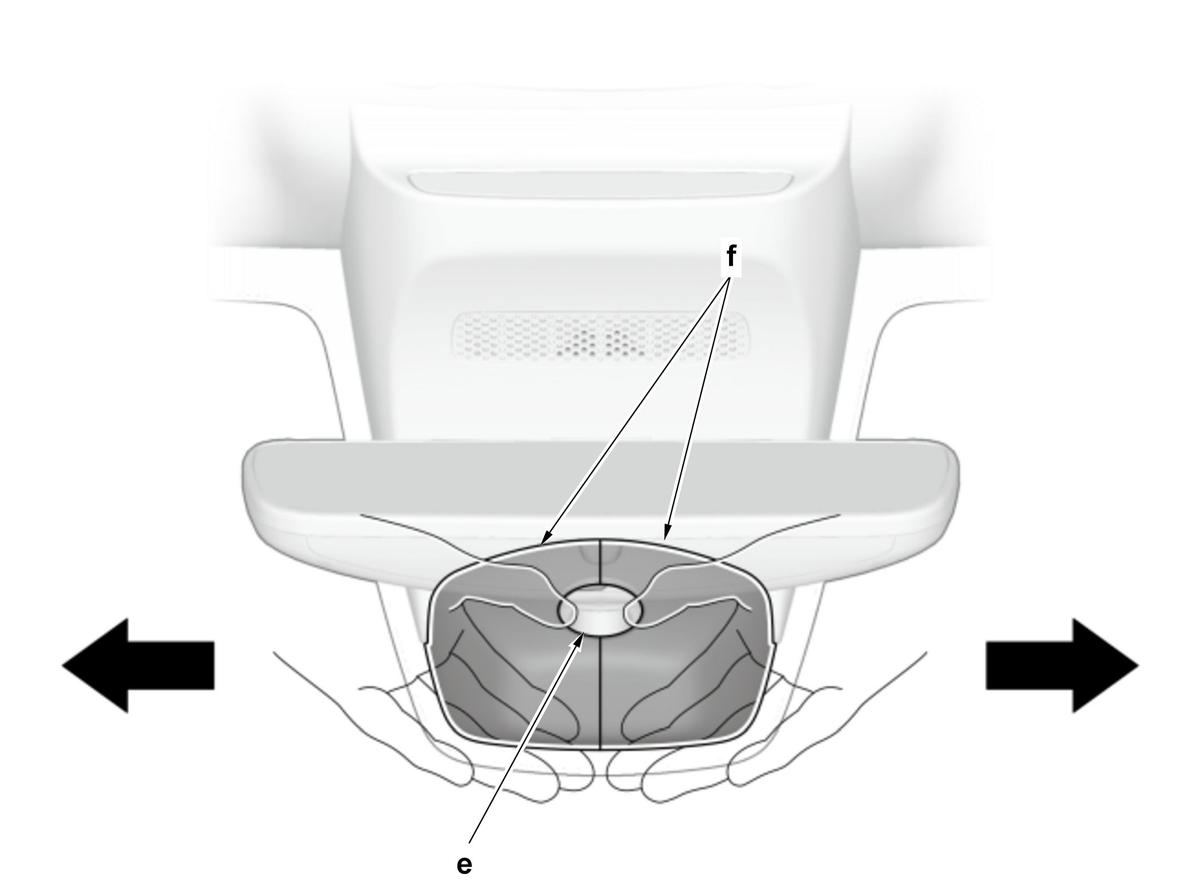

    2. Release the left and right hooks (d) by putting your fingers on the hole (e) of the rearview mirror stay part of the left and right camera cover lids (f) and holding the camera cover lids back and forth to pull them to left and right. (Figure 1 and 2)

    Figure 2

    GHH543695Courtesy of HONDA, U.S.A., INC.

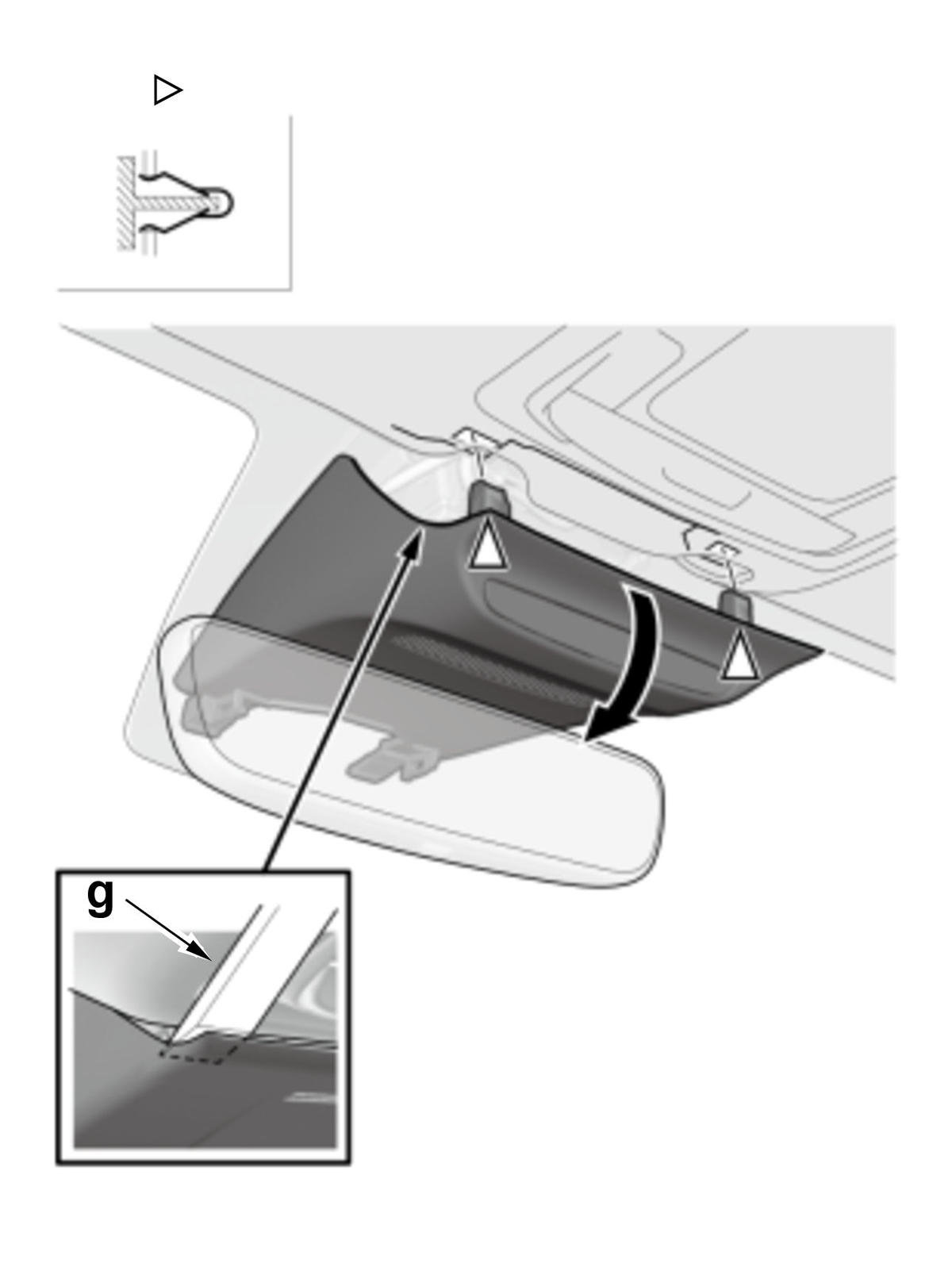

    3. Refer to figure 3.

    Tool Details (Figure 3)

    Name
    g Trim tool (Commercially available tool)

    Figure 3

    GHH543696Courtesy of HONDA, U.S.A., INC.
  3. C.-

    Sub-Procedure

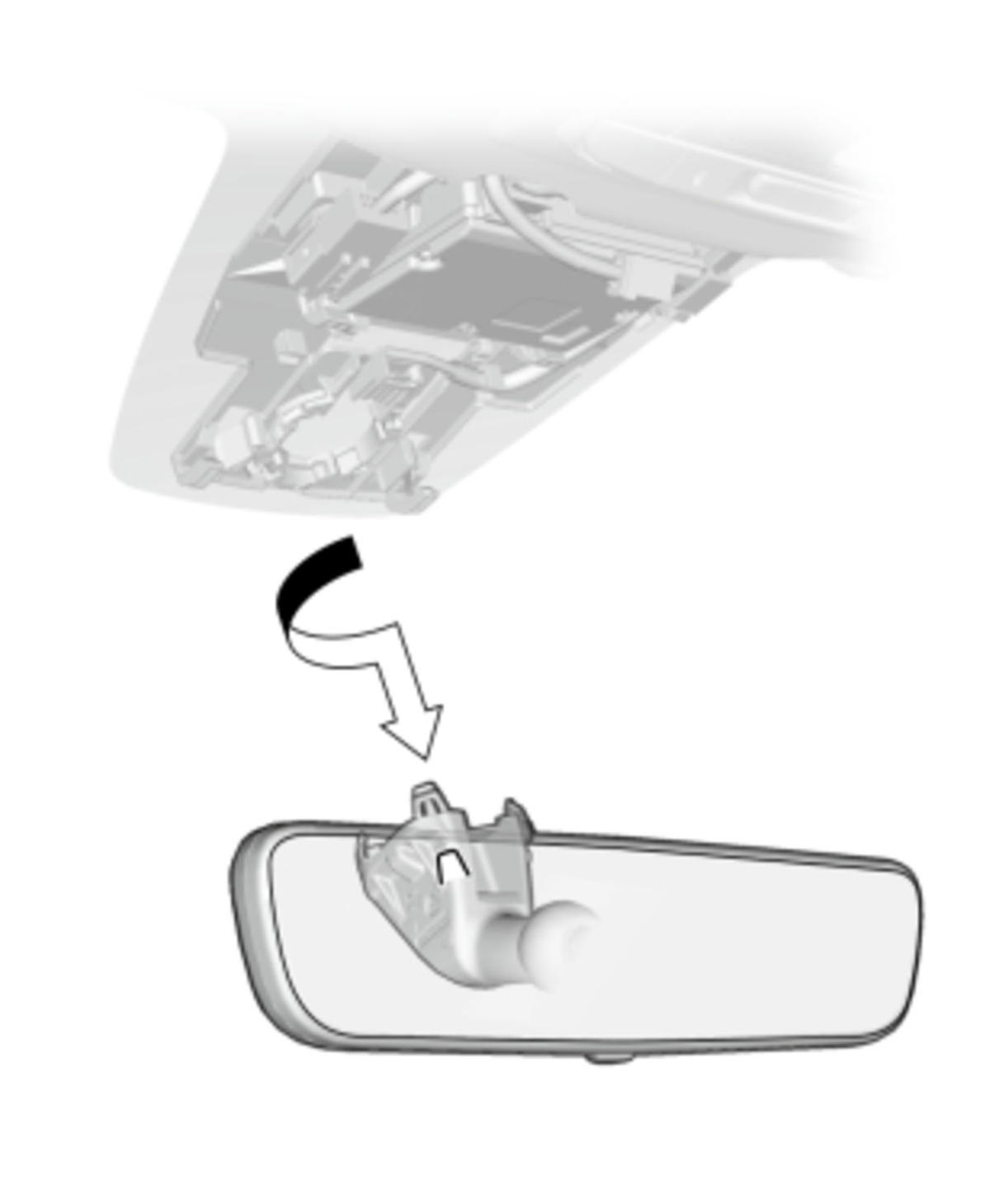

    Figure 1

    GHH543697Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to figure 1.

    Figure 2

    GHH543698Courtesy of HONDA, U.S.A., INC.

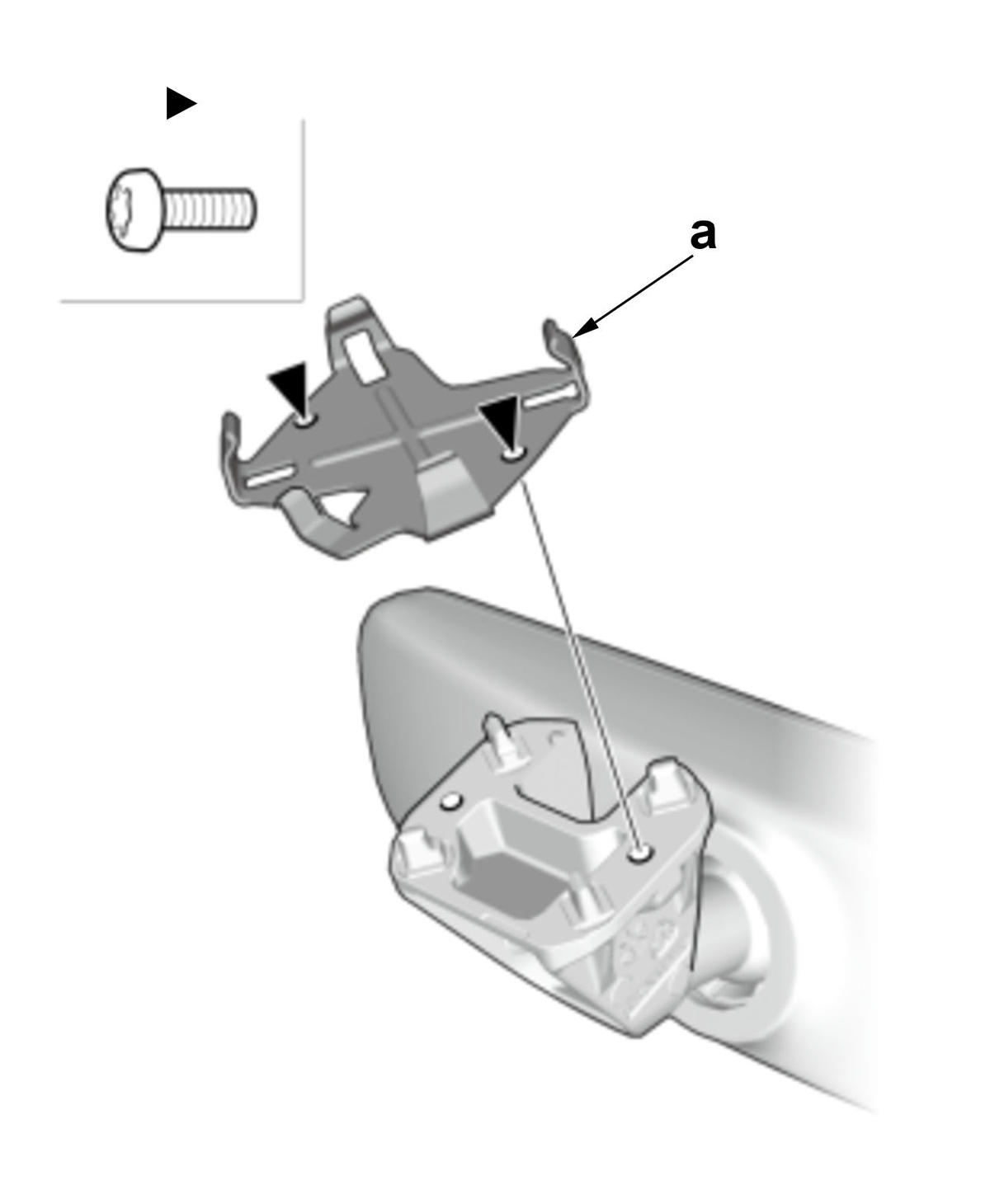

    Installation

    • Refer to figure 2.
    NOTE:

    Replace the mount spring (a) whenever the rearview mirror is removed from the windshield.

  4. D.-

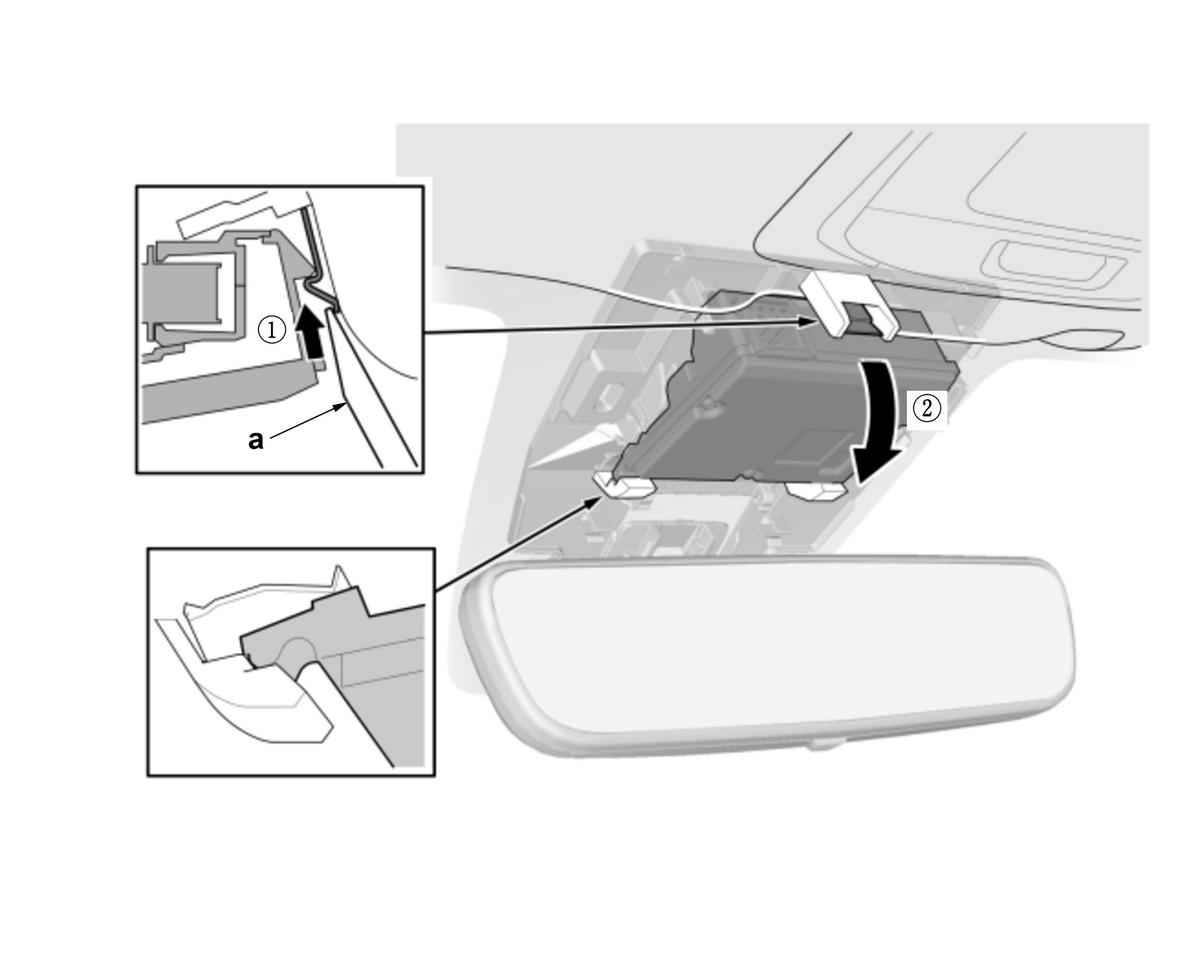

    NOTE:

    Make sure that there are no stains, dust, or dirt on the lens of the multipurpose camera unit and the windshield area where the camera is mounted.

    Sub-Procedure

    Removal

    • Refer to the figure.

    Tool Details

    Name
    a Trim tool(Commercially available tool)
    GHH543699Courtesy of HONDA, U.S.A., INC.

    After Installation

  5. E.-

    Sub-Procedure

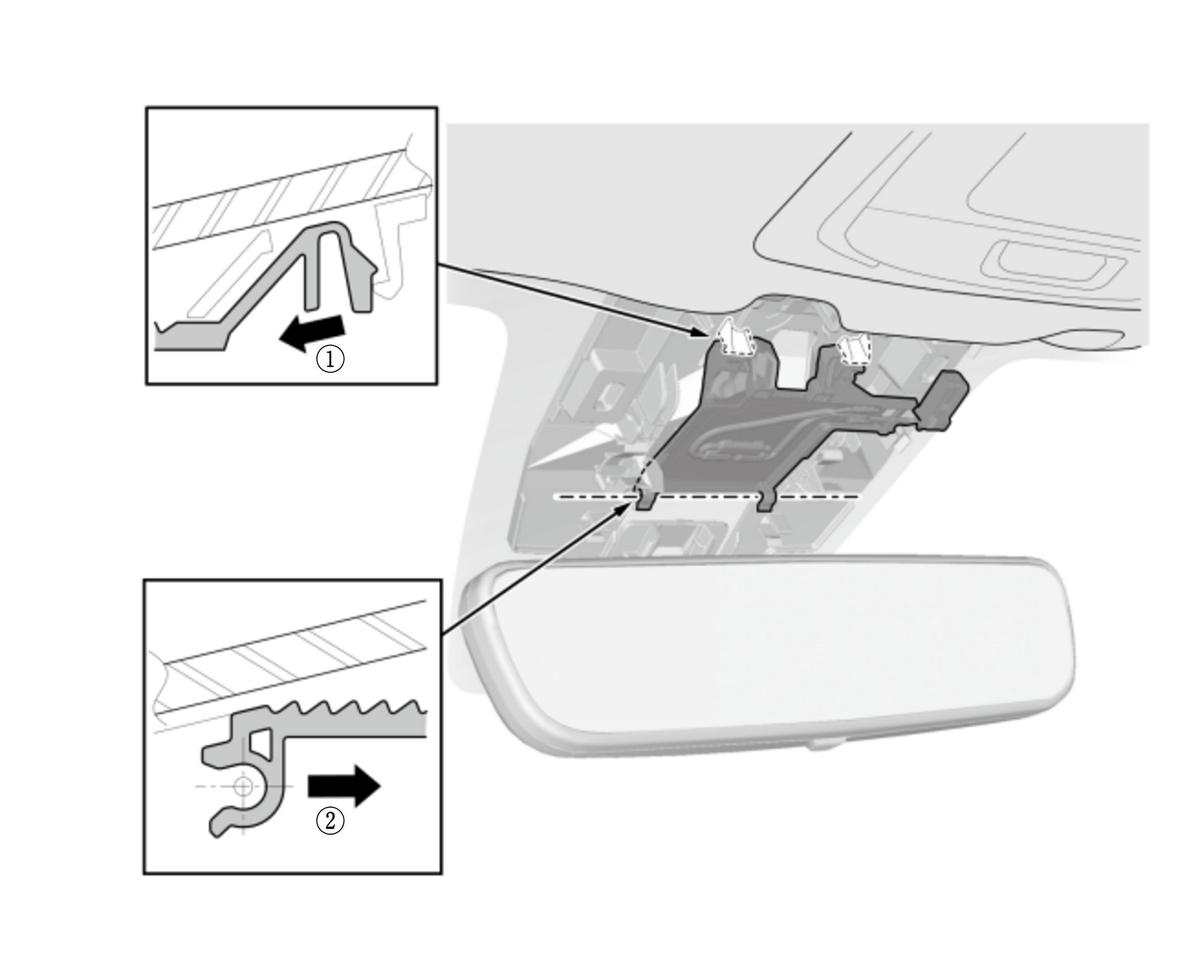

    Removal

    • Refer to the figure.
    GHH543700Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTE:

    Do not press the heater area.

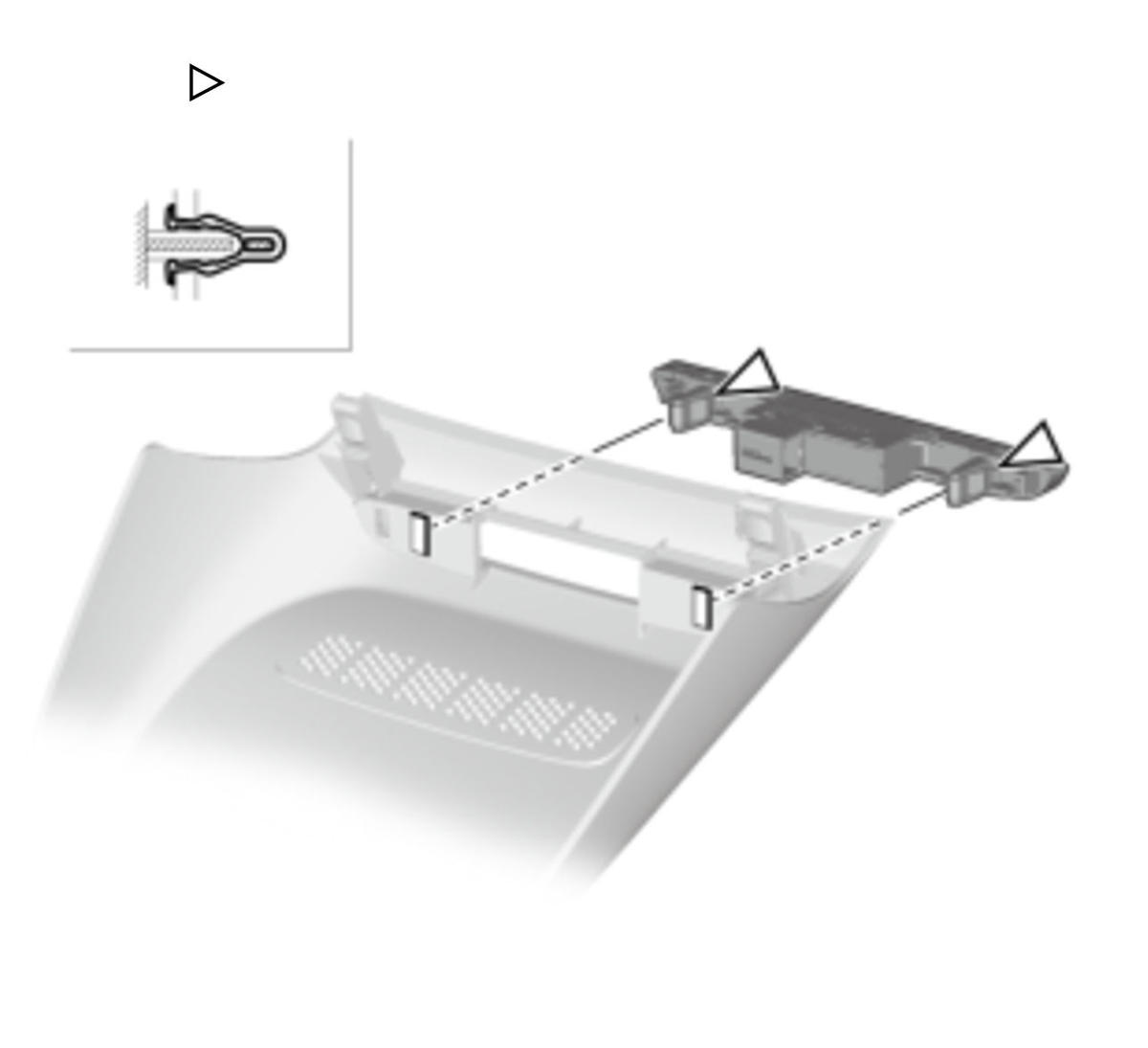

  6. F.-
    GHH543701Courtesy of HONDA, U.S.A., INC.
