Center Display Unit Connector for Inputs and Outputs
| Connector Index |
| Center Display Unit Connector A (5P) |
| Center Display Unit Connector B (3P) |

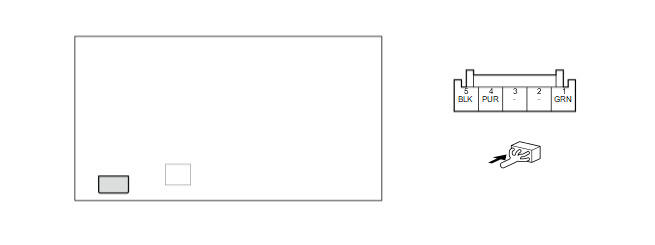

Center Display Unit Connector A (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
+ B |
Continuous power source |
| A2 |
Not used |
--- |
| A3 |
Not used |
--- |
| A4 |
DISP-CONT |
Inputs signal for center display unit switching on/off |
| A5 |
GND |
Ground for center display unit (G404) |

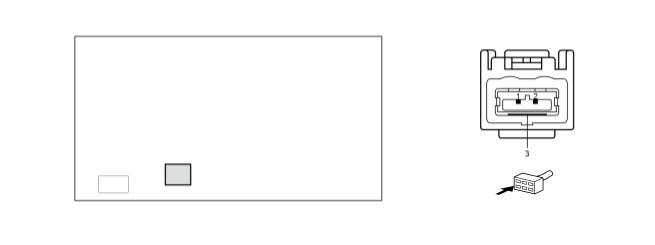

Center Display Unit Connector B (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
LVDS+ |
Communication signal for infotainment control unit |
| B2 |
LVDS- |
Communication signal for infotainment control unit |
| B3 |
LVDS SH |
Shield for terminals No. 1 and No. 2 |
