Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass has been removed or adjusted, or if the roof opening panel frame has been removed.

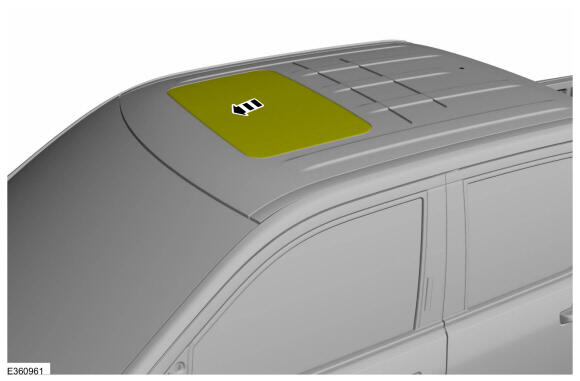

Fully close the roof opening panel.

Courtesy of FORD MOTOR COMPANY

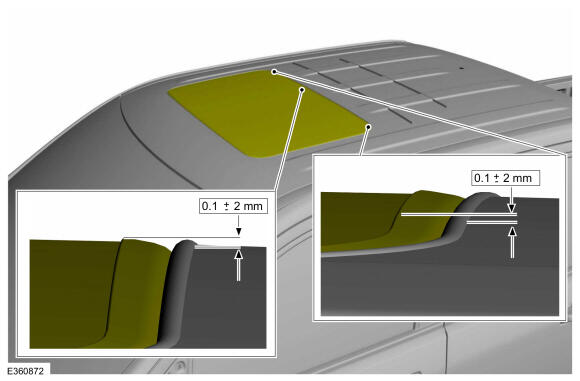

Measure the roof opening panel glass to roof clearances at the front as shown.

Courtesy of FORD MOTOR COMPANY

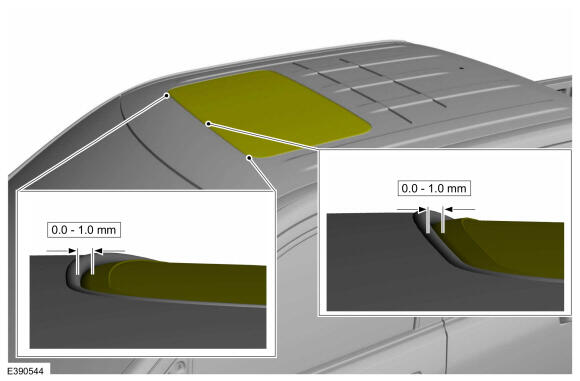

Measure the roof opening panel sliding glass front edge-to-header panel margins.

Courtesy of FORD MOTOR COMPANY
Measure the roof opening panel glass to roof clearances at the front as shown.

Courtesy of FORD MOTOR COMPANY

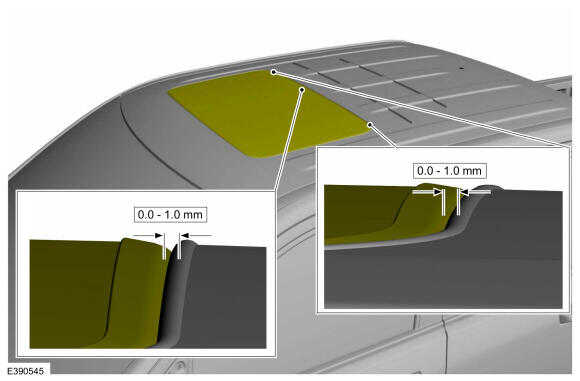

Measure the roof opening panel sliding glass rear edge-to-header panel margins.

Courtesy of FORD MOTOR COMPANY

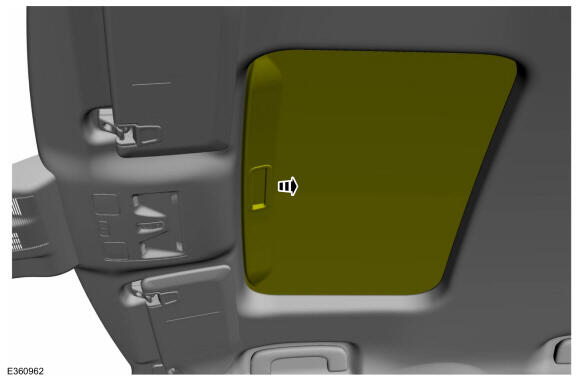

If adjustment is needed, fully open the roof opening panel shield.

Courtesy of FORD MOTOR COMPANY

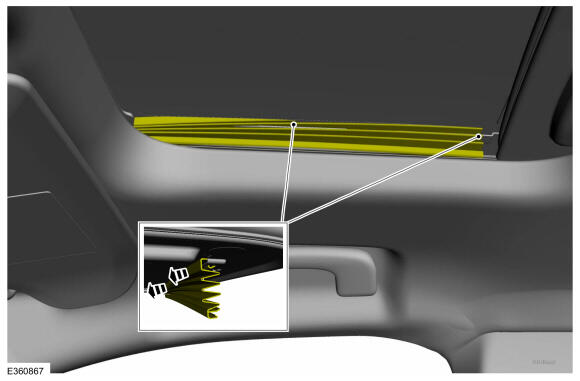

On both sides.Detach the top portion of the roof opening panel blind from the roof opening panel glass frame.

Courtesy of FORD MOTOR COMPANY

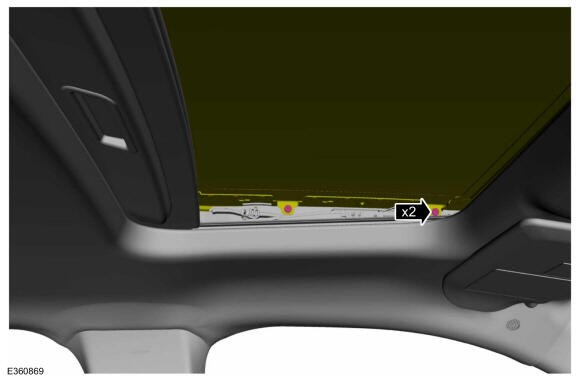

On both sides.Loosen the retainers for adjustment.

Courtesy of FORD MOTOR COMPANY

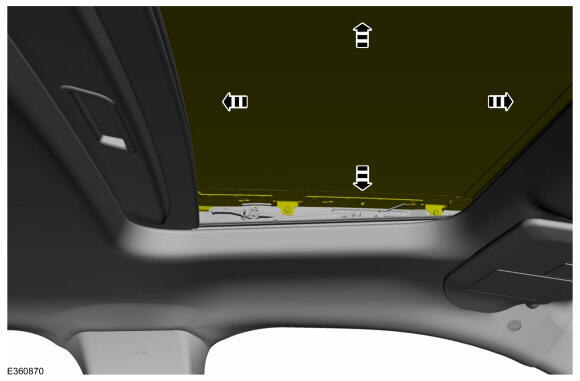

Adjust the roof opening panel glass as necessary to correct the clearances.

Courtesy of FORD MOTOR COMPANY
On both sides.Tighten the retainers.

Courtesy of FORD MOTOR COMPANY
On both sides.Attach the top portion of the roof opening panel blind to the drip link.

Courtesy of FORD MOTOR COMPANY
If any adjustment was made, initialize the roof opening panel glass. Refer to: Power Roof Opening Panel Initialization .
