Removal and Installation

Remove the integrated control panel. For additional information, refer to CLIMATE CONTROL ASSEMBLY .
Remove the RH lower instrument panel insulator.

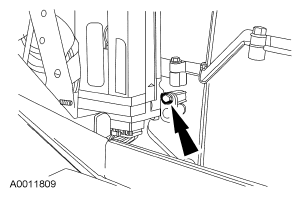

Fig 1: Locating Right Lower Instrument Panel Insulator
Courtesy of FORD MOTOR CO.
Lower the glove compartment.
Remove the 2 remote climate control module screws.

Fig 2: Locating Remote Climate Control Module Screws
Courtesy of FORD MOTOR CO.
Disconnect the remote climate control module electrical connector.

Fig 3: Locating Remote Climate Control Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 2 nuts and disconnect the plenum vacuum harness.

Fig 4: Locating Plenum Vacuum Harness
Courtesy of FORD MOTOR CO.
Remove the remote climate control module.
To install, reverse the removal procedure.
