Climate Control Assembly

All vehicles

Using the special tool, pull out the integrated control panel.

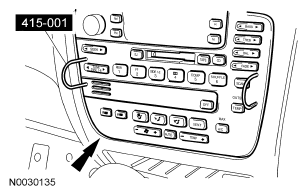

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Vehicles with manual climate control

Disconnect the electrical connectors and remove the integrated control panel.

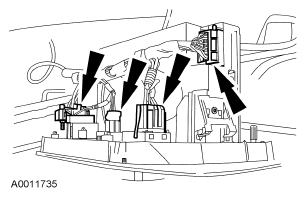

Fig 2: Locating Electrical Connectors

Courtesy of FORD MOTOR CO.

Vehicles with electronic automatic temperature control (EATC)

Disconnect the electrical connectors and in-vehicle temperature sensor hose and remove the integrated control panel.

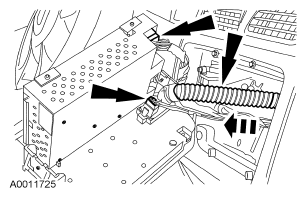

Fig 3: Locating Integrated Control Panel In-Vehicle Temperature Sensor Hose And Electrical Connectors

Courtesy of FORD MOTOR CO.

All vehicles
