MULTIFUNCTION Switch, Wiper/Washer Portion

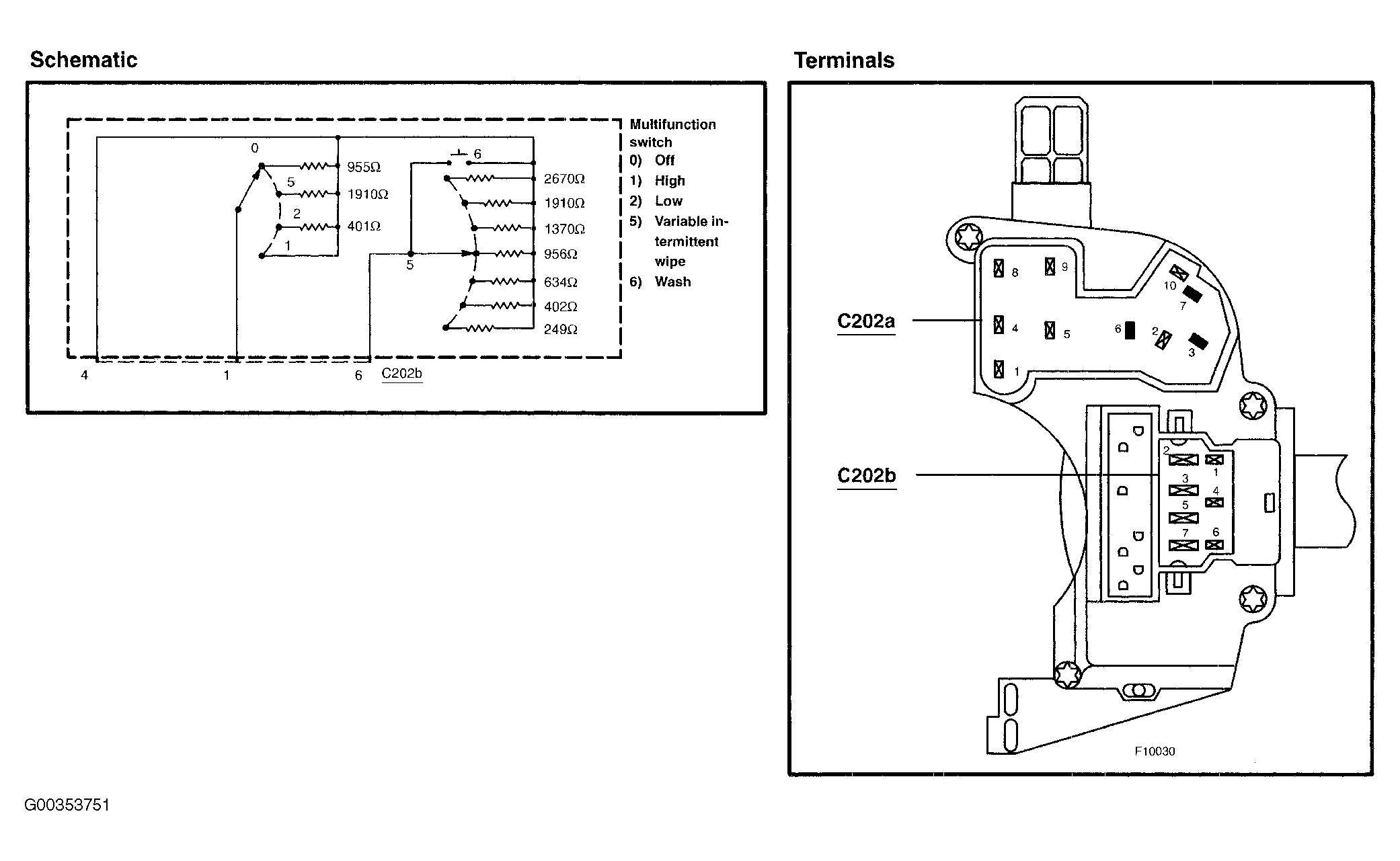

Fig 1: Testing Multifunction Switch, Wiper/Washer Portion (1 Of 2)
G00353751Courtesy of FORD MOTOR CO.

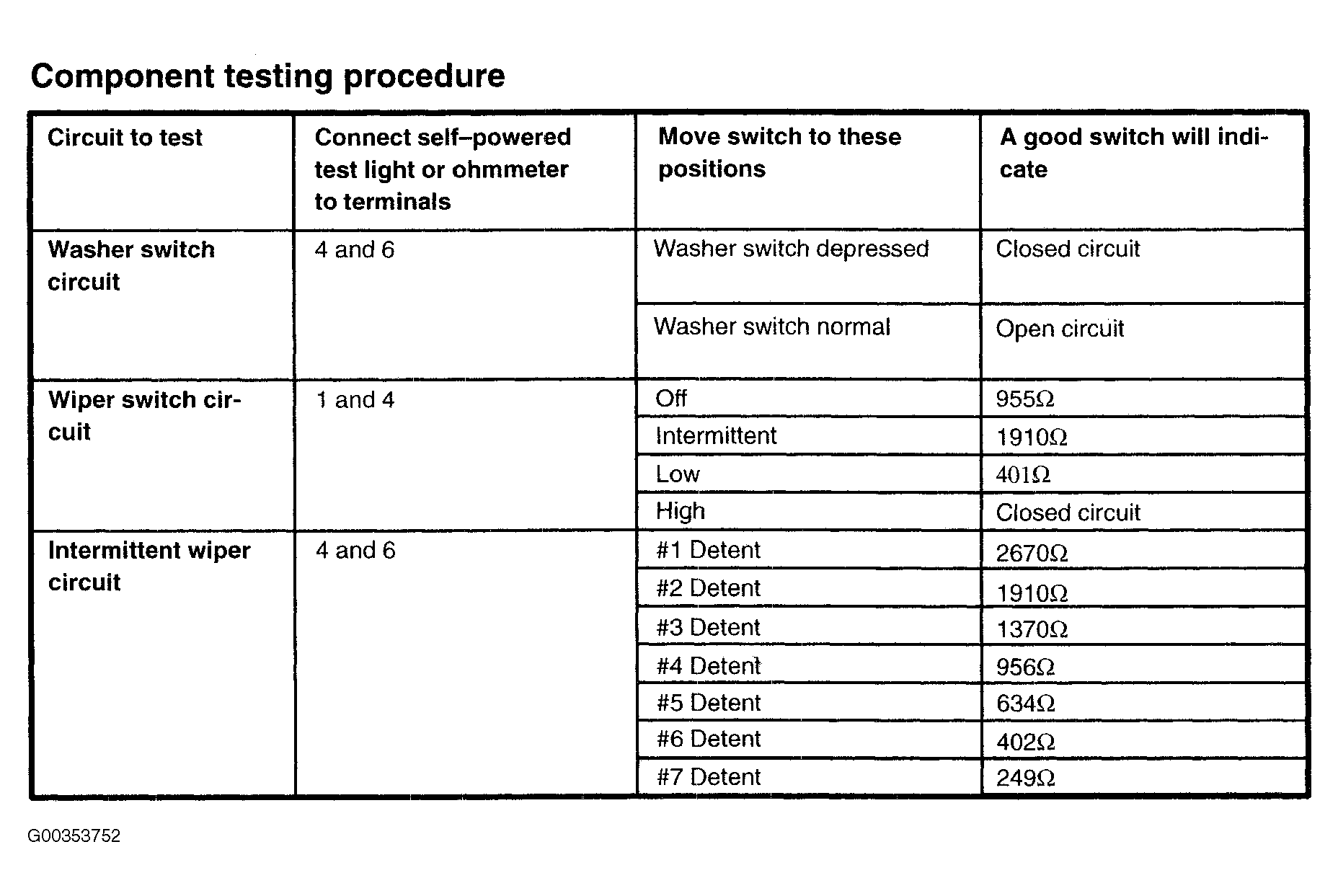

Fig 2: Testing Multifunction Switch, Wiper/Washer Portion (2 Of 2)
G00353752Courtesy of FORD MOTOR CO.
