Abnormal Waveforms Examples

NOTE: The size of the waveform patterns can differ greatly, depending on the adjustment of the variable knob on the oscilloscope.

NOTE: Identification of abnormal waveforms is easier when there is a large output current (regulator is not operating). (Waveforms can be observed when the headlights are illuminated.)

NOTE: Check the conditions of the charging indicator light (illuminated/not illuminated) also, and carry out a total check.

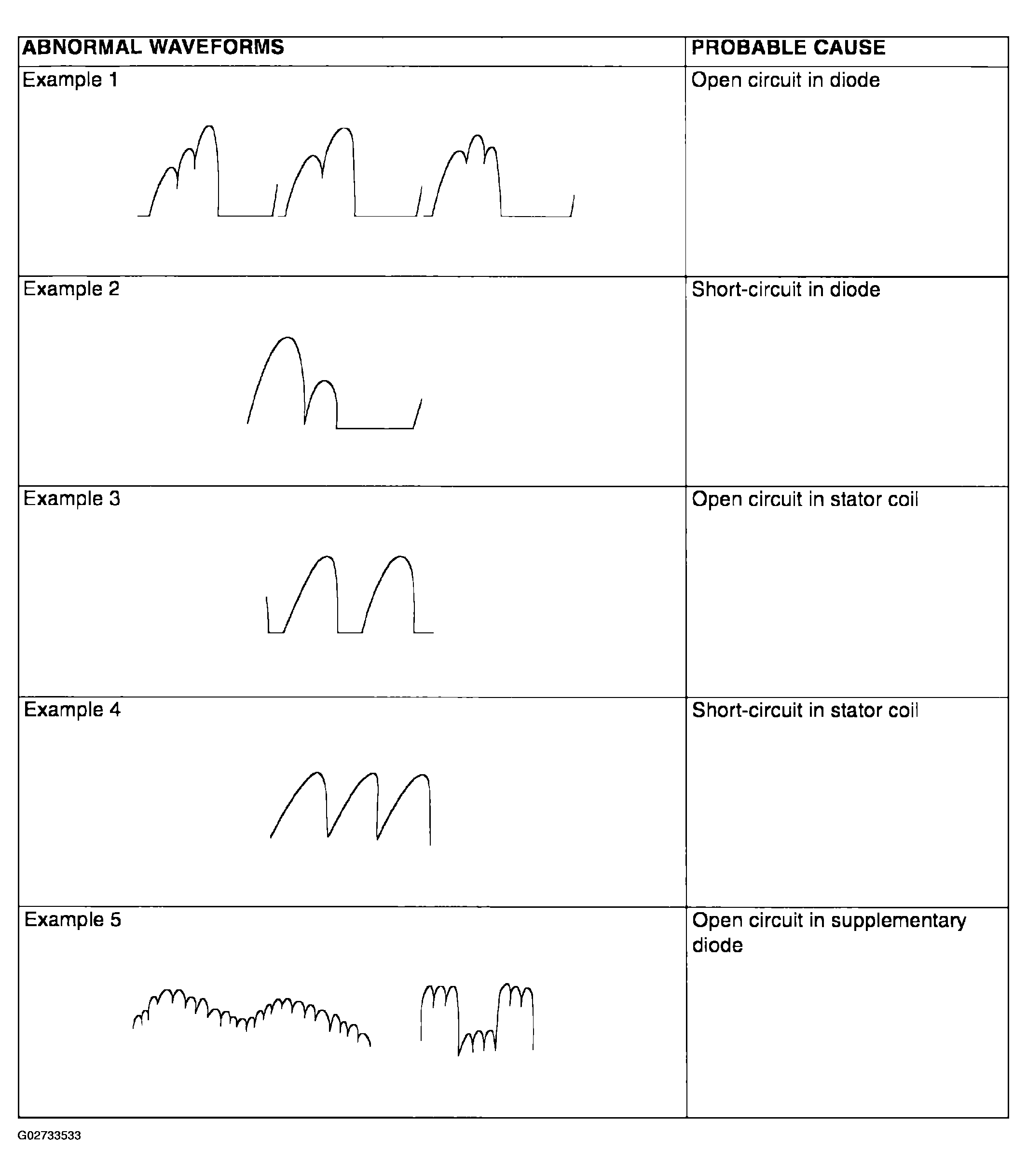

Fig 1: Identifying Abnormal Wave Patterns

Courtesy of DAIMLERCHRYSLER CORP.
