Radiator Lower Mount Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

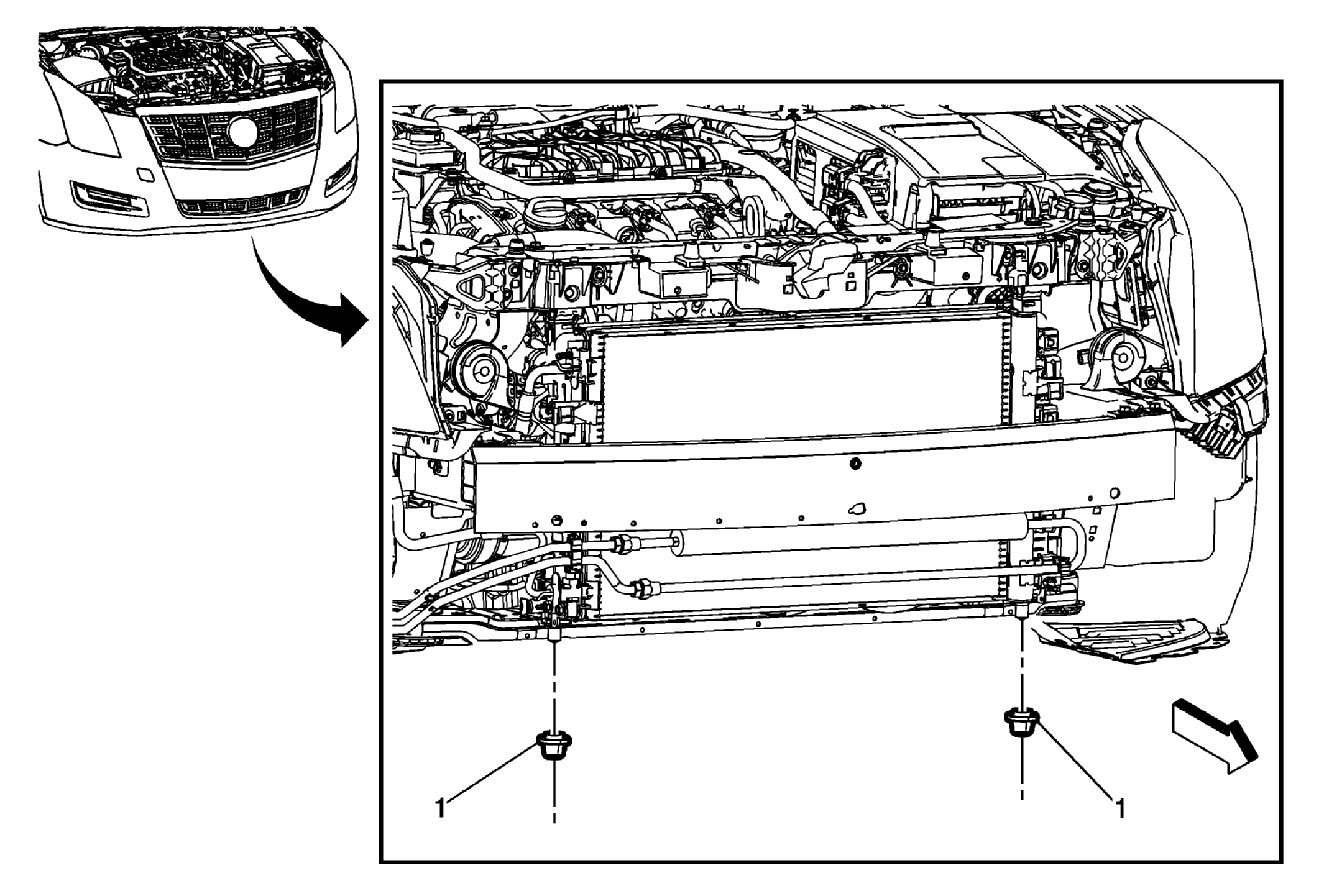

Fig 1: Radiator Lower Mounts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Support the radiator. Remove the radiator lower bracket. Refer to Radiator Lower Bracket Replacement .
1	Radiator Lower Mount (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
Support the radiator.
Remove the radiator lower bracket. Refer to Radiator Lower Bracket Replacement .

Radiator Lower Mount (Qty: 2)
