Radiator Lower Bracket Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

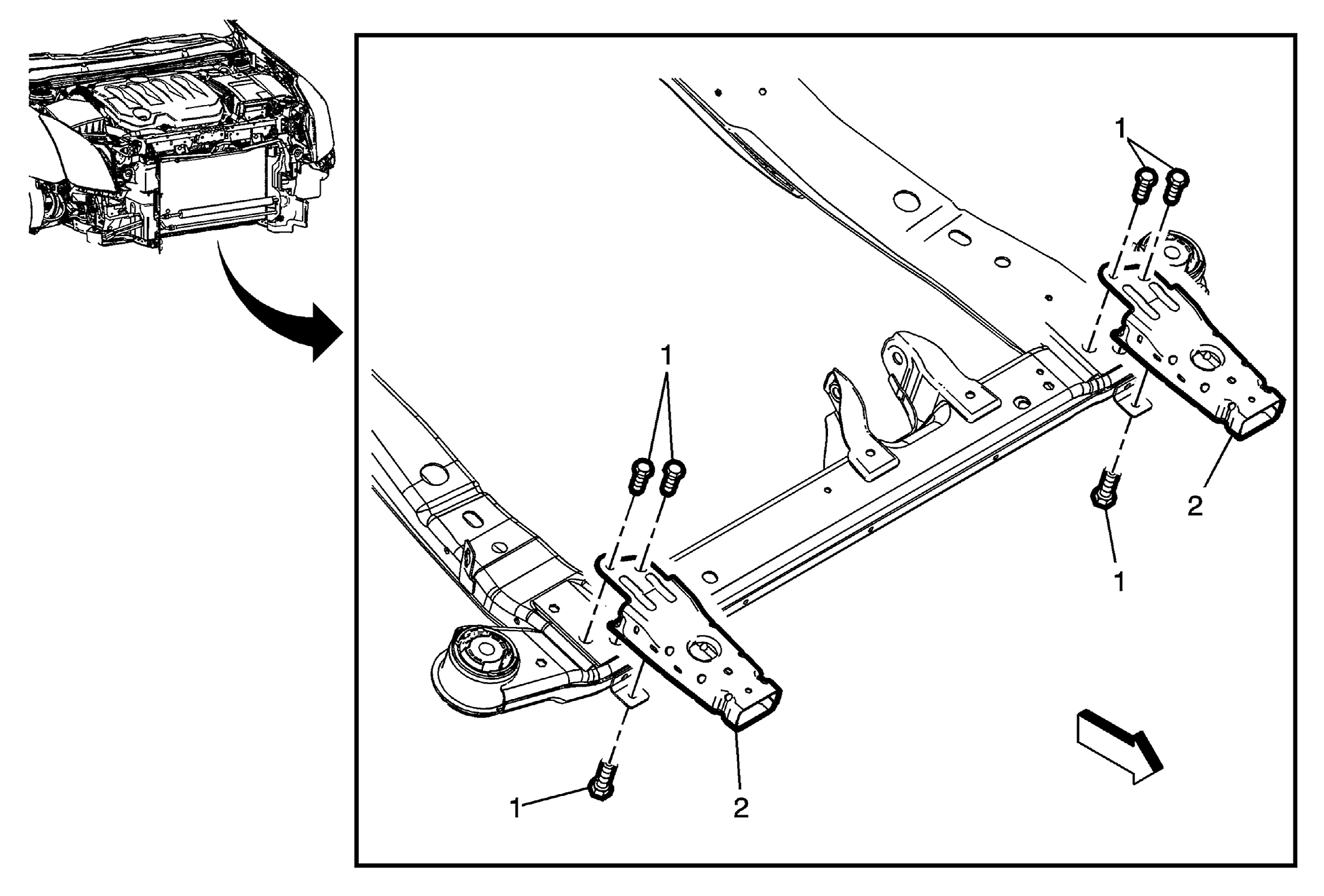

Fig 1: Radiator Lower Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the power steering fluid cooler brackets. Refer to Power Steering Fluid Cooler Bracket Replacement . Remove the radiator air side baffle retainer from the radiator lower bracket. Refer to Radiator Air Side Baffle Replacement - Left Side , and/or Radiator Air Side Baffle Replacement - Right Side . Remove the secondary air injection pump if equipped with NU6. Support the radiator assembly.
1	Radiator Lower Bracket Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Radiator Lower Bracket (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the power steering fluid cooler brackets. Refer to Power Steering Fluid Cooler Bracket Replacement .
Remove the radiator air side baffle retainer from the radiator lower bracket. Refer to Radiator Air Side Baffle Replacement - Left Side , and/or Radiator Air Side Baffle Replacement - Right Side .
Remove the secondary air injection pump if equipped with NU6.
Support the radiator assembly.

Radiator Lower Bracket Fastener (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
22 (16 lb ft)

Radiator Lower Bracket (Qty: 2)
