Steering Lock Replacement

  1. Remove the steering column (see REMOVAL/INSTALLATION  ).
  2. Center punch each of the two shear bolts, and drill their heads off with a 5 mm (3/16 in) drill bit.
    CAUTION: Do not damage the switch body when removing the shear bolts.
    Fig 1: Drilling Heads Off With Drill Bit
    G06288463Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the shear bolts from the switch body.
  4. Install the switch body without the key inserted.
  5. Loosely tighten the new shear bolts.
  6. Insert the ignition key, and check for proper operation of the steering wheel lock and that the ignition key turns freely.
  7. Tighten the shear bolts until the hex heads twist off.

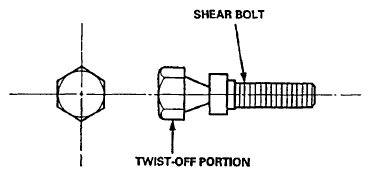

    Fig 2: Identifying Shear Bolts
    G06288464Courtesy of AMERICAN HONDA MOTOR CO., INC.
