Steering Column: Removal/Installation

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS (SUPPLEMENTAL RESTRAINT SYSTEM) before performing repairs or service.

1. Remove the steering wheel (see REMOVAL  ).
2. Remove the driver's dashboard lower cover and driver's knee bolster (see COMPONENT LOCATION INDEX ).
3. Remove the combination switch assembly from the steering column shaft by disconnecting the connectors.
4. Disconnect the ignition switch connectors.
5. Remove the steering joint cover.
6. Remove the steering joint bolts.
7. Disconnect the steering joint by moving the joint toward the column, and remove it from the column shaft.
8. Remove the steering column by removing the attaching nuts and bolt.
9. Installation is the reverse of the removal procedure.
   NOTE:

   • Make sure the steering joint is connected as follows:
     1. Insert the upper end of the steering joint onto the steering shaft (line up the bolt hole with the flat on the shaft), and loosely install the upper joint bolt.
     2. Slip the lower end of the steering joint onto the pinion shaft (line up the bolt hole with the groove around the shaft), and loosely install the lower joint bolt

        Be sure that the lower joint bolt is securely in the groove in the pinion shaft.

     3. Pull on the steering joint to make sure that the steering joint is fully seated. Then tighten the joint bolts.
   • Be sure the wires are not caught or pinched by any parts when installing the column.
   • Make sure the wire harness is routed and fastened properly.
   • Make sure the connectors are properly connected.

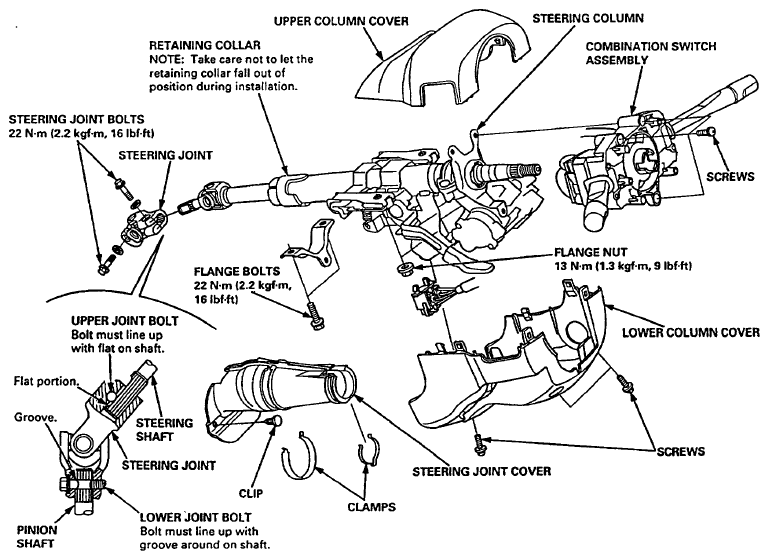

     Fig 1: Identifying Steering Column Components

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
