Coding Key Storage, Lounge Console (Excellence): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

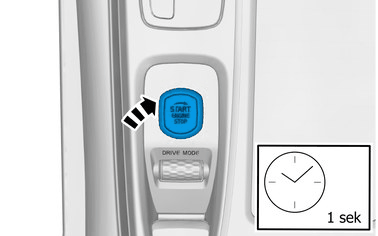

Full functionality available, except an activated drivetrain (motor).

Courtesy of VOLVO CARS CORPORATION

NOTE:

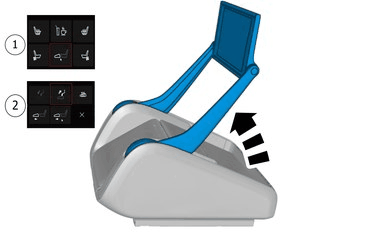

Make sure that the component reaches its end position.

Courtesy of VOLVO CARS CORPORATION

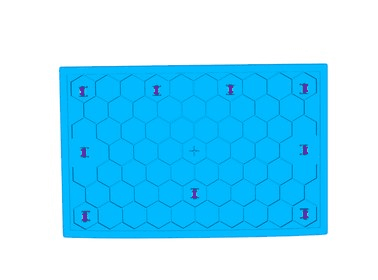

The graphic shows the back of the component.

Courtesy of VOLVO CARS CORPORATION

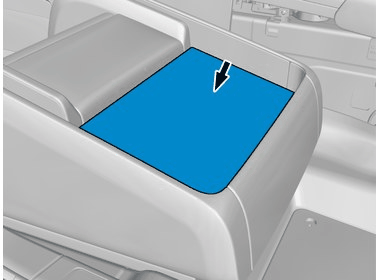

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

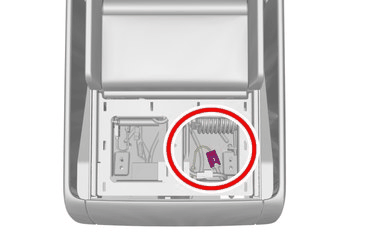

Orientation view

Courtesy of VOLVO CARS CORPORATION

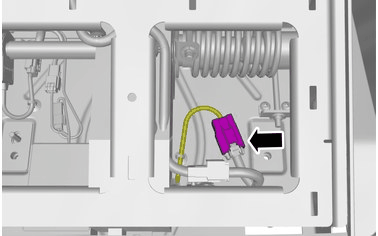

Disconnect the connector.
