Engine Block, Installing Components [2014-2016, B5254T12, TF-80SC AWD]
NOTE:
For information on Volvo color coded illustrations, refer to: IMAGES
INSTALLATION

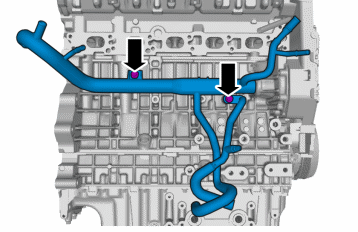

Torque: M8, 24Nm

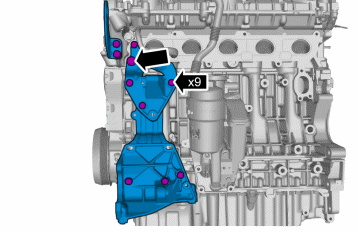

Install the following items:
- Torque: M8, 24Nm
- Torque: M10, 50Nm

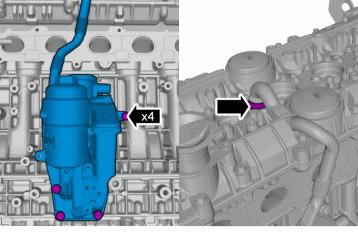

Torque: M8, 24Nm
Install the following items:
- VVT solenoid, refer to: VVT SOLENOID
- fuel injector, refer to: FUEL INJECTOR
- auxiliary drive belt tensioner, refer to: AUXILIARY DRIVE BELT TENSIONER
- Knock sensor, refer to: KNOCK SENSOR
- thermostat, refer to: THERMOSTAT
- Oil cooler, engine, refer to: OIL COOLER, ENGINE
- the intake manifold, refer to: INDUCTION PIPE
- ignition coil, refer to: IGNITION COIL
- exhaust manifold, refer to: EXHAUST MANIFOLD
- Crankshaft position sensor, refer to: CRANKSHAFT POSITION SENSOR
- flange plate, refer to: CARRIER PLATE
- alternator, refer to: ALTERNATOR
