Component Location, Headlamp Control Module (HCM) [2011-2012]

WARNING: This page is about a different variant/trim than selected.

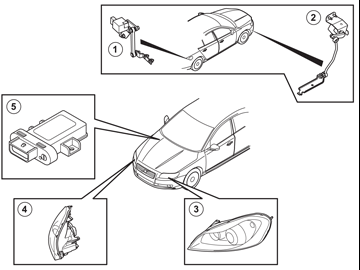

GLL166594Courtesy of VOLVO CARS CORPORATION

Overview

  1. Rear position sensor
  2. Front position sensor
  3. Left headlamp control unit (LHCU)
  4. Right headlamp control unit (RHCU)
  5. Headlamp Control Module (HCM)
