Component Location, Climate Control Module (CCM) [2007-2011]
WARNING: This page is about a different car, the 2016 Volvo S80, 2015 Volvo S80, 2014 Volvo S80, and 2013 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

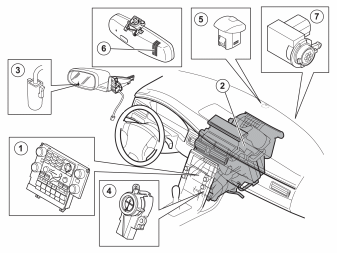

 Courtesy of VOLVO CARS CORPORATION
|
| Pos. |
Component |
| 1 |
Climate control module (CCM) |
| 2 |
Climate units |
| 3 |
Outside temperature sensor |
| 4 |
Passenger compartment temperature sensor |
| 5 |
Sun sensor |
| 6 |
Moisture sensor. Depending on vehicle version located in rearview mirror or under casing in roof, by the windscreen. |
| 7 |
Air quality sensor (AQS) |

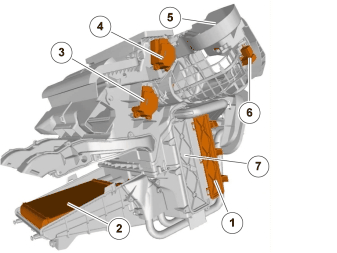

 Courtesy of VOLVO CARS CORPORATION
|
| Pos. |
Component |
| 1 |
Passenger compartment filter |
| 2 |
Heat exchanger |
| 3 |
Damper motor module (DMM), temperature right |
| 4 |
Damper motor module (DMM) defroster |
| 5 |
Damper motor module (DMM), recirculation |
| 6 |
Air quality sensor (AQS) |
| 7 |
Evaporator |

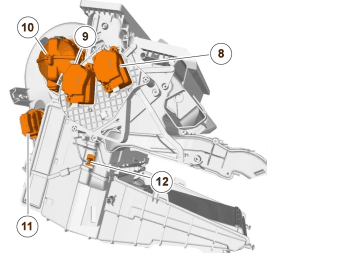

 Courtesy of VOLVO CARS CORPORATION
|
| Pos. |
Component |
| 8 |
Damper motor module (DMM) temperature left |
| 9 |
Damper motor module (DMM) air distribution |
| 10 |
Fan motor |
| 11 |
Fan resistor |
| 12 |
Evaporator temperature sensor |
