Replacing A-Post And Reinforcement

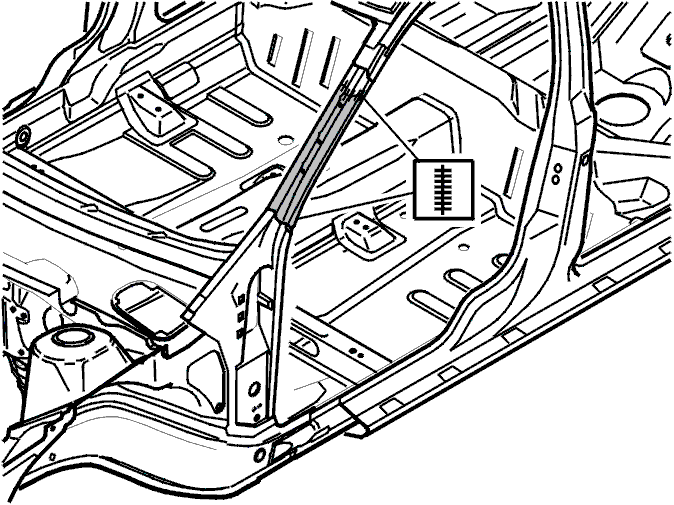

Fig 1: A-Post Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut off the damaged section.

NOTE:

Do not cut the A-post lower than 100 mm from the roof edge. There is reinforcement below this.

Align the mating surfaces.

Align and secure the inner A-post.

Weld into place

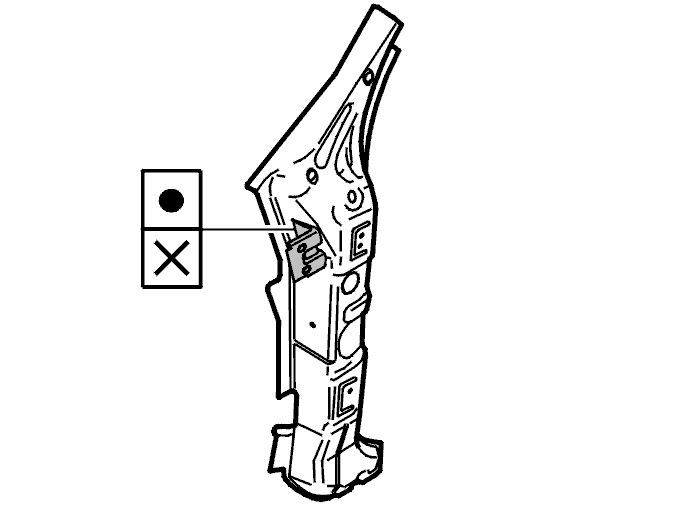

Fig 2: A-Post Bracket Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Weld the bracket into place.

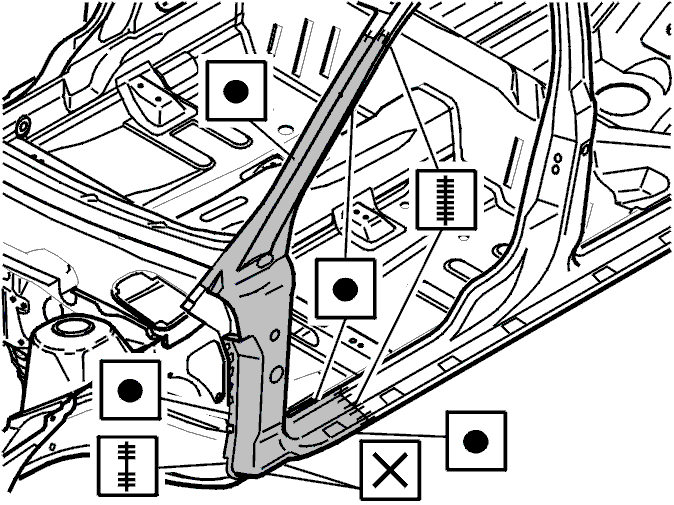

Fig 3: Cowl Side Reinforcement Weld Locations At A-Post Reinforcement

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align and secure the cowl side reinforcement to the A-post reinforcement.

Tack weld.

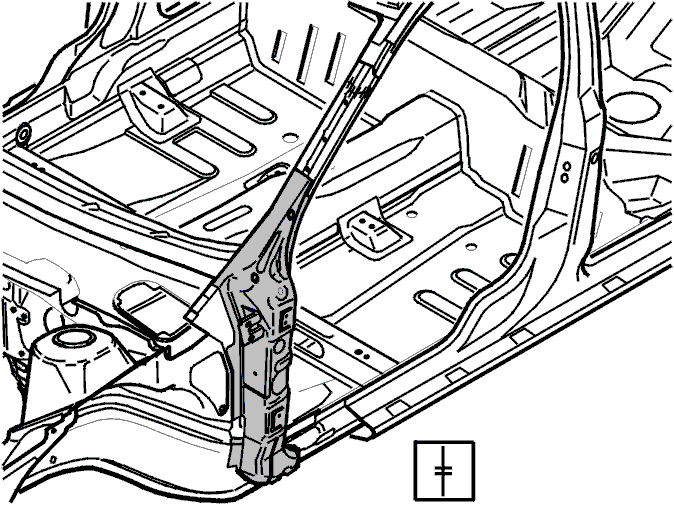

Fig 4: Outer Cowl Side To Outer A-Post Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align and secure the outer cowl side to the outer A-post.

Weld into place.
