Control Module: Removal
WARNING: This page is about a different car, the 2000 Volvo S80 and 1999 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

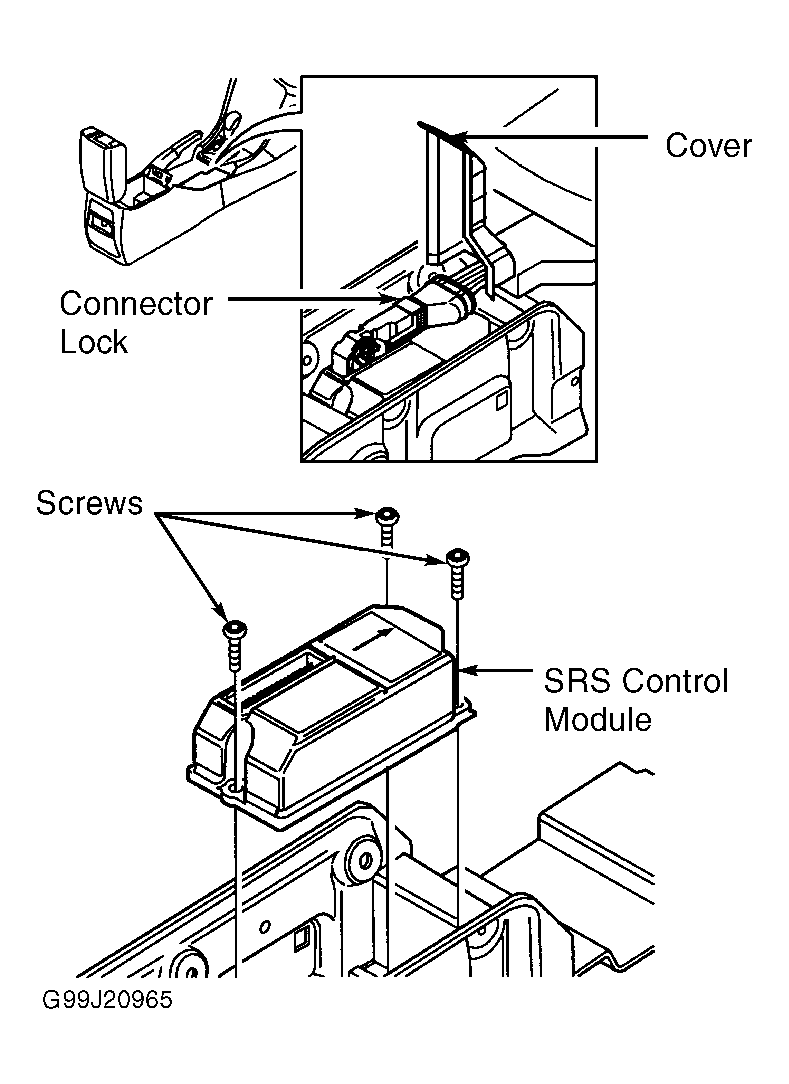

- Control module is located under center console. Remove center console. See CENTER CONSOLE . Remove control module connector cover. See Figure . Lift connector lock and disconnect control module connector. Remove 3 Torx screws and lift up control module. Remove control module.
