C70 (Front Door Windows)

Adjustment screws ("A") are located on bottom of door. See Figure . Loosen lock nuts and screw adjuster in to bring window out, or out to bring window in. Front and rear of window can be adjusted separately. After adjusting, check adjustment.

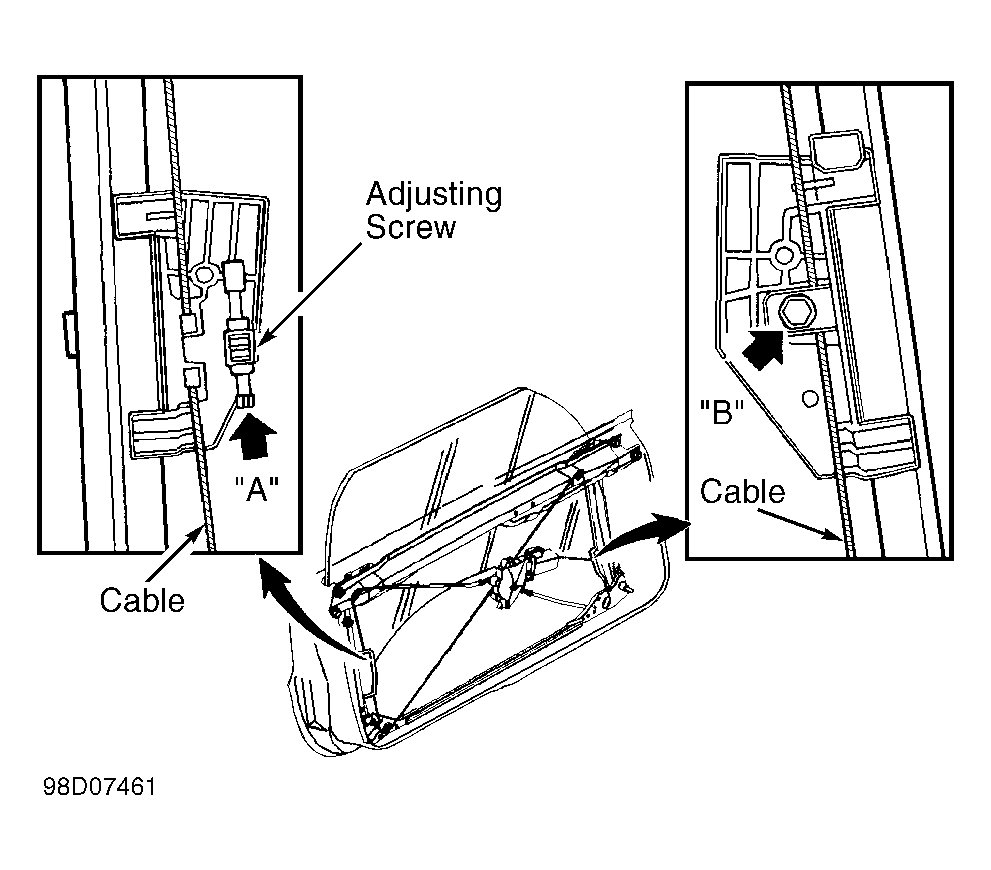

Fig 1: Front Door Window Vertical Adjustment (C70)

Courtesy of VOLVO CARS OF NORTH AMERICA
