Suspension Torque Specifications

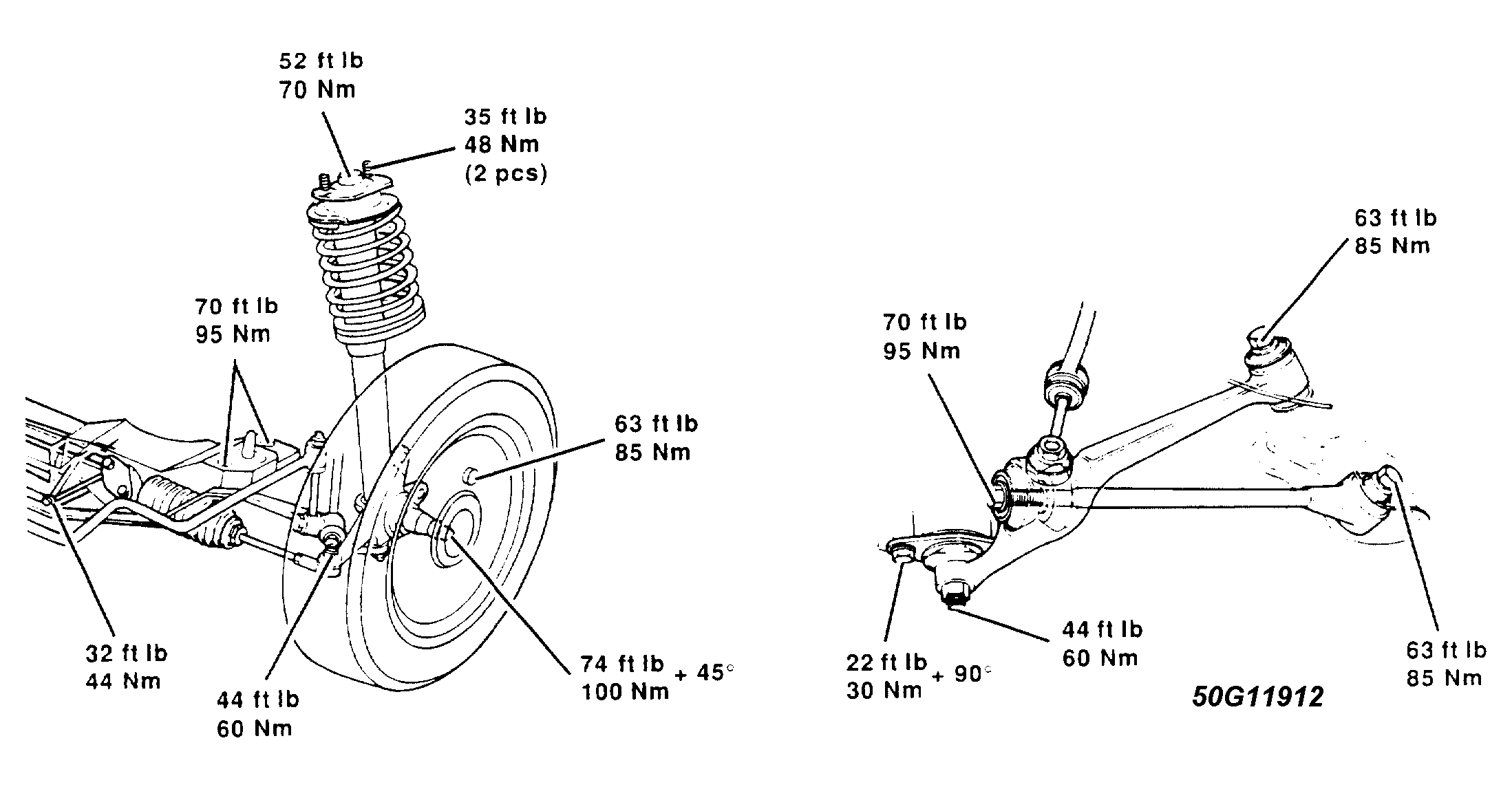

Fig 1: Front Suspension Torque Specifications (All)

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For more information regarding front suspension service refer to the SUSPENSION - FRONT article in the STEERING & SUSPENSION section.

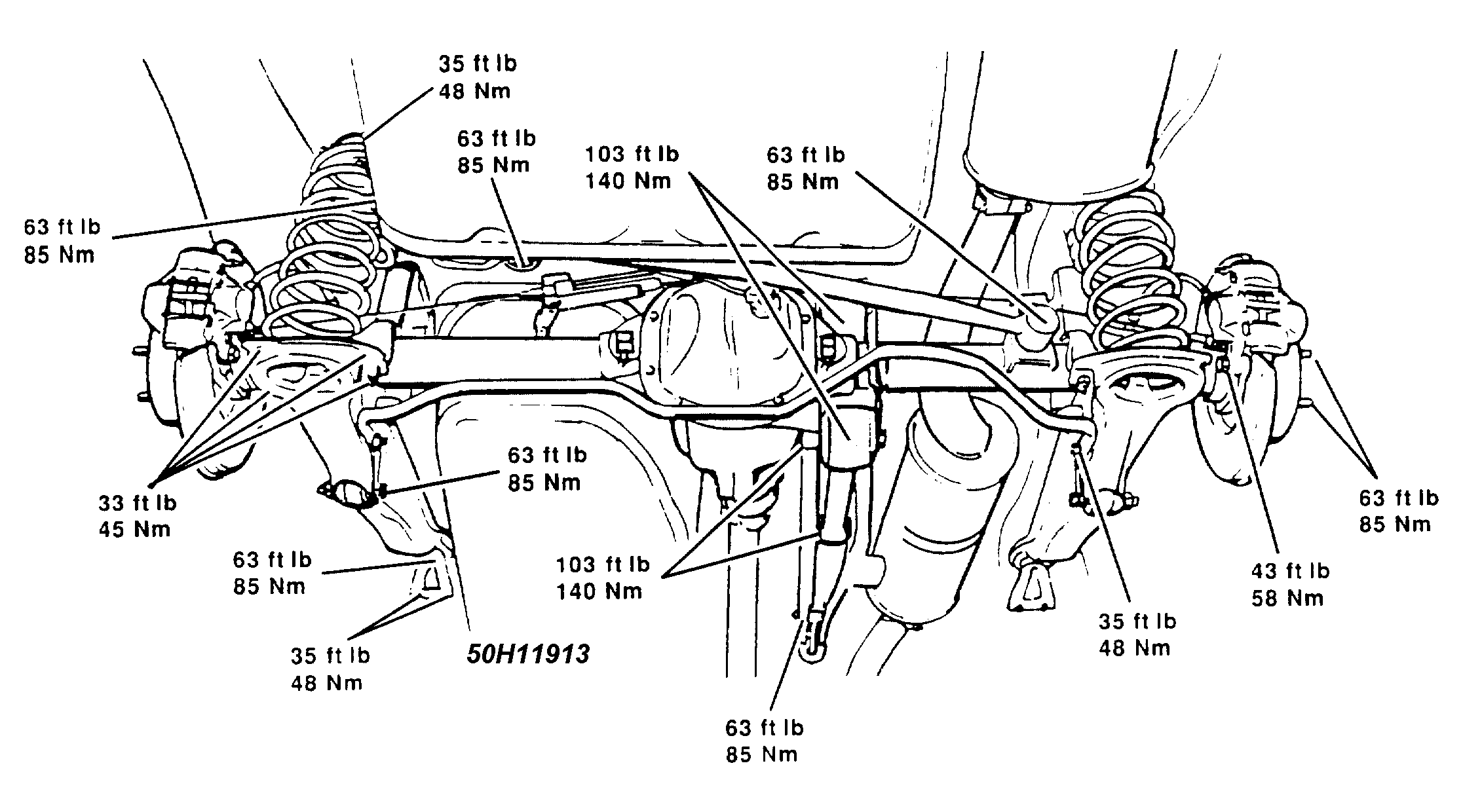

Fig 2: Rear Suspension Torque Specifications (940 & SE Wagon)

Courtesy of VOLVO CARS OF NORTH AMERICA.

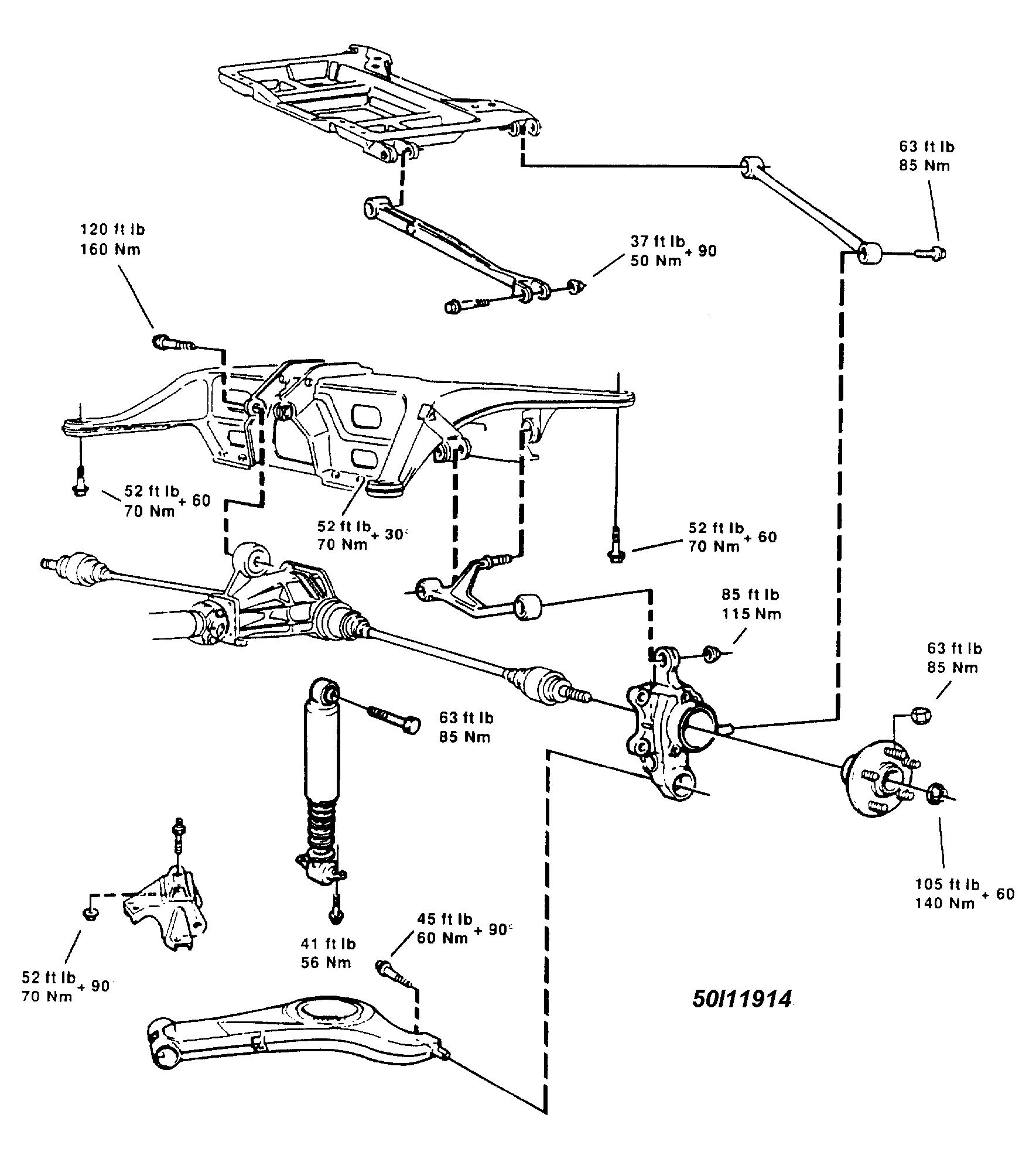

Fig 3: Rear Suspension Torque Specifications (1991 SE Sedan)

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For more information regarding rear suspension service refer to the SUSPENSION - REAR article in the STEERING & SUSPENSION section.
