Abs Relay Identification

NOTE: On vehicles equipped with Anti-Lock Brakes (ABS), the ABS pump motor, solenoids and relays are located in the trunk compartment on the right side. See Fig 1 .

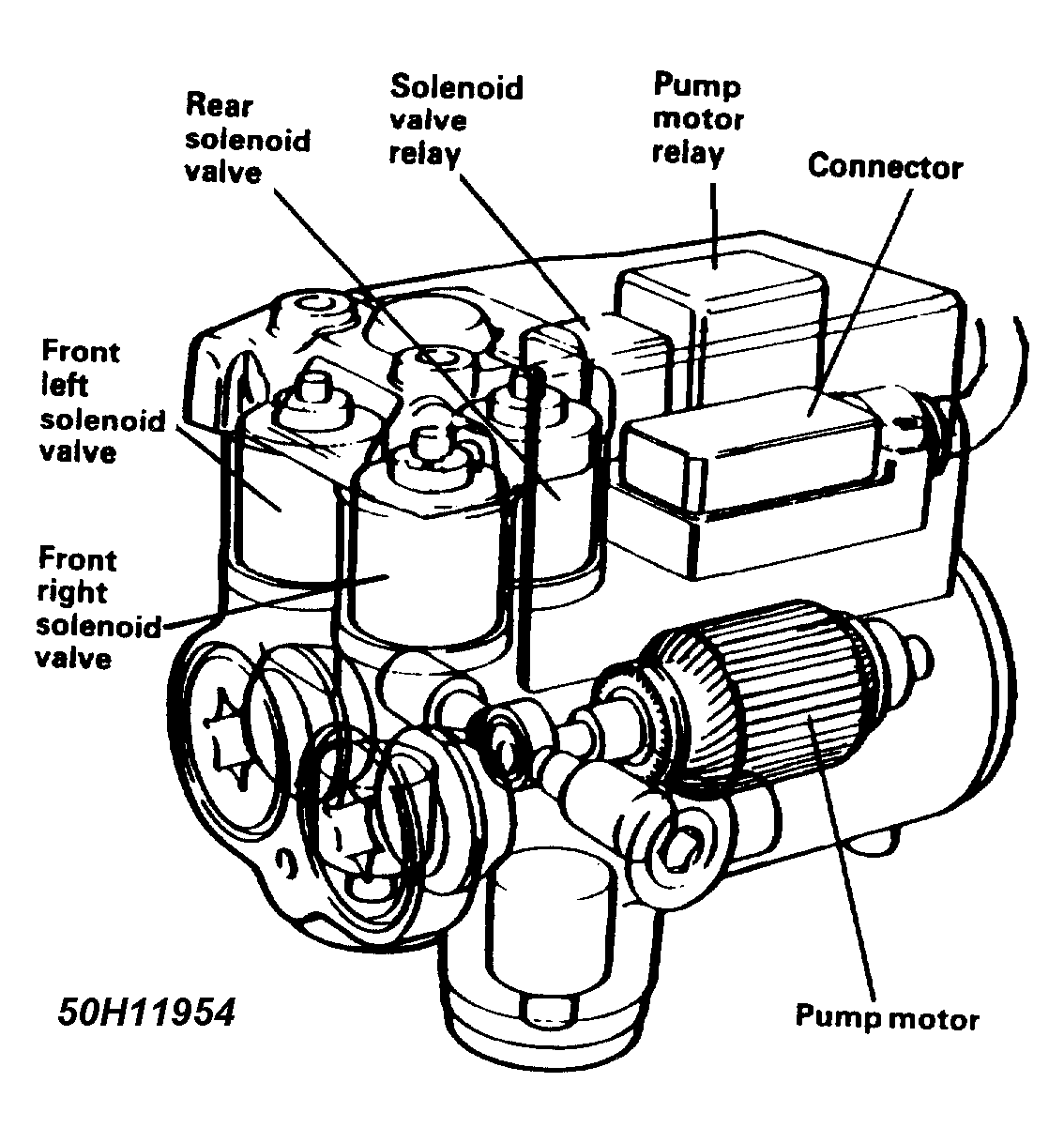

Fig 1: ABS Relay Location (1987)

Courtesy of VOLVO CARS OF NORTH AMERICA.
