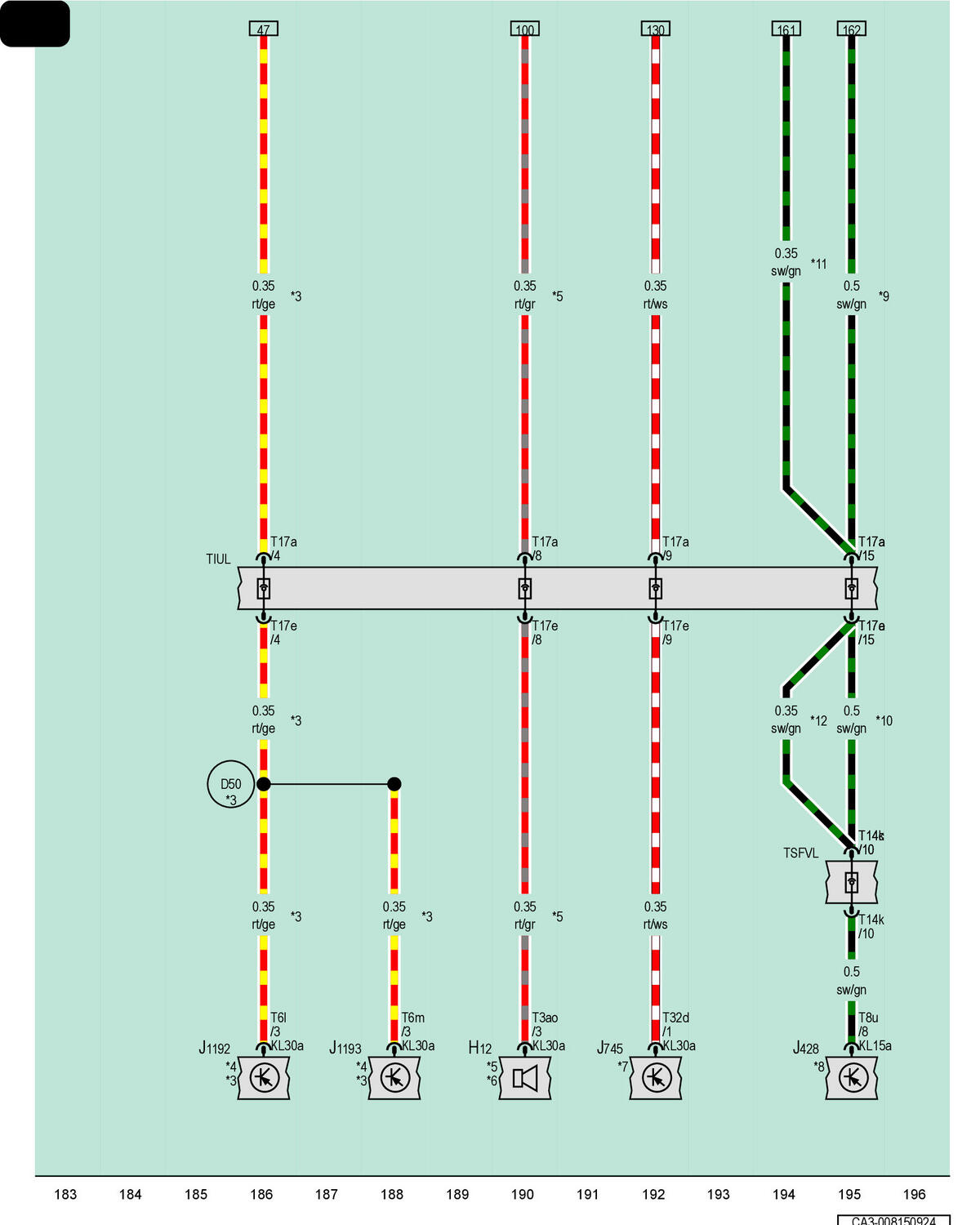

Alarm Horn, Control Module For Adaptive Cruise Control, Cornering Lamp And Headlamp Range Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3
H12
Alarm Horn
J428
Control Module for Adaptive Cruise Control
J745
Cornering Lamp and Headlamp Range Control Module
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
T3ao
3-Pin Connector, Black
T6l
6-Pin Connector, Black
T6m
6-Pin Connector, Black
T8u
8-Pin Connector, Black
T14c
14-Pin Connector, Black
T14k
14-Pin Connector, Black
T17a
17-Pin Connector, Black
T17e
17-Pin Connector, Black
T32d
32-Pin Connector, Gray
TIUL
Coupling Point in Interior, Bottom Left
TSFVL
Coupling Point on Left Front Bumper
D50
Positive Connection (30) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*3
Depending on Equipment
*4
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*5
For Vehicles with Anti-Theft Alarm System
*6
Refer to the Applicable Anti-Theft Alarm System Wiring Diagram
*7
Refer to Applicable Wiring Diagram for Headlamps
*8
Refer to Applicable Wiring Diagram for Adaptive Cruise Control
*9
Through September 2025
*10
Omitted as a Running Change
*11
From September 2024
*12
Running Change
