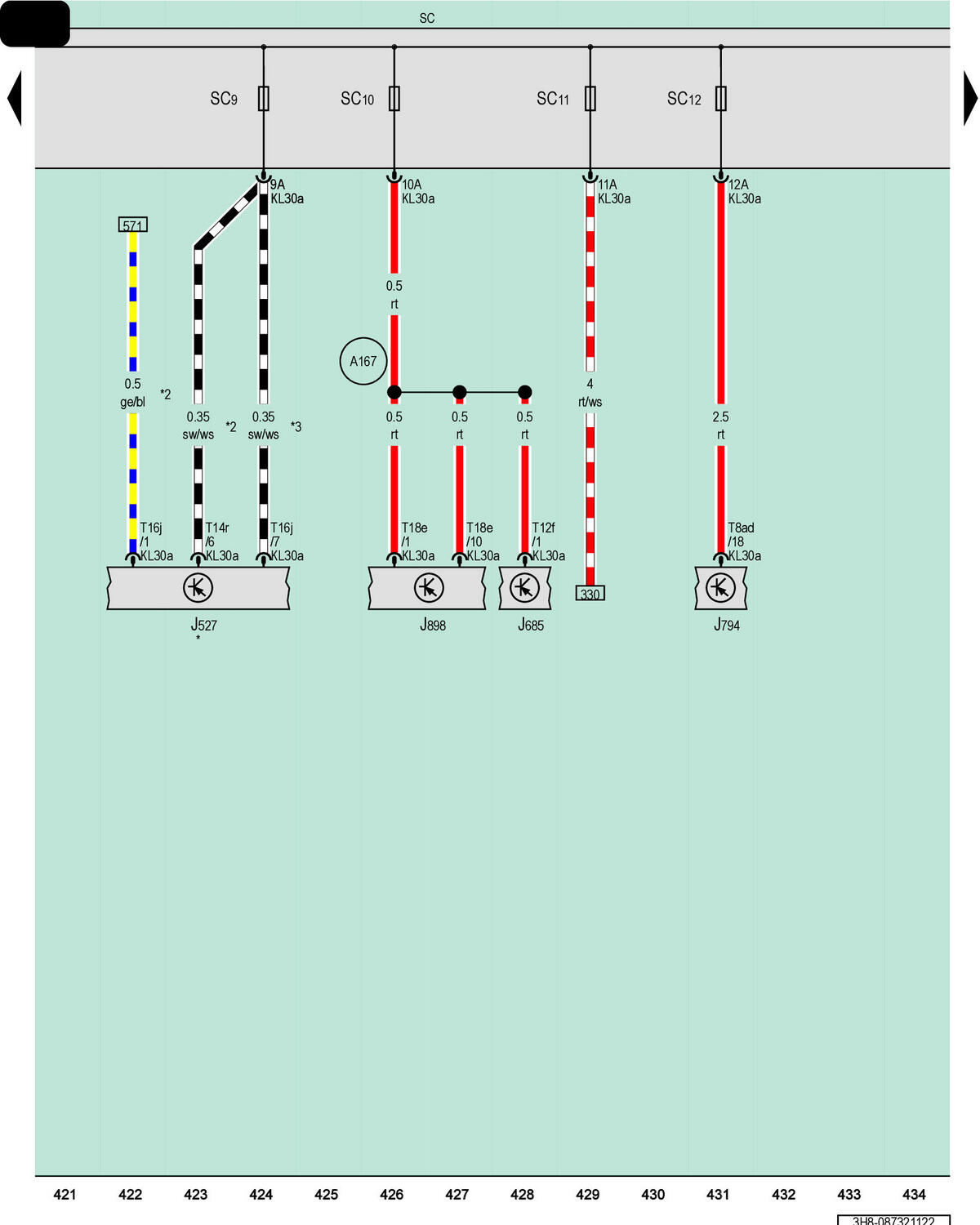

Steering Column Electronics Control Module, Front Information Display Control Head, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J527

Steering Column Electronics Control Module

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

SC

Fuse Panel C

SC9

Fuse 9 (On Fuse Panel C)

SC10

Fuse 10 (On Fuse Panel C)

SC11

Fuse 11 (On Fuse Panel C)

SC12

Fuse 12 (On Fuse Panel C)

T8ad

8-Pin Connector, Black

T12f

12-Pin Connector, Black

T14r

14-Pin Connector, Black

T16j

16-Pin Connector, Black

T18e

18-Pin Connector, Naturally Cloudy

A167

Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

For Vehicles with Heated Steering Wheel

*3

For Vehicles Without Heated Steering Wheel
