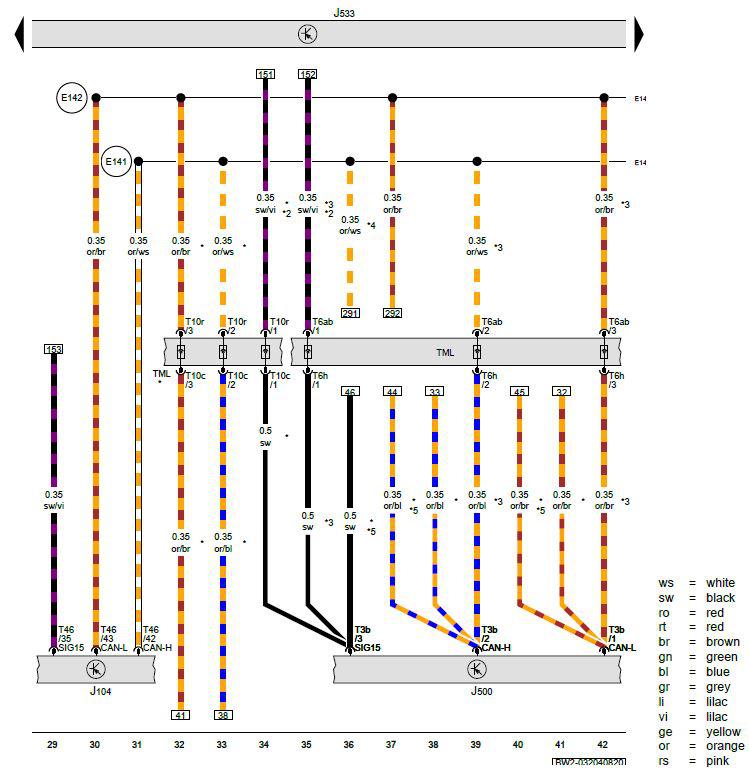

ABS Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface
J104 - ABS Control Module
J500 - Power Steering Control Module
J533 - Data Bus on Board Diagnostic Interface
T3b - 3-Pin Connector, Black
T6ab - 6-Pin Connector
T6h - 6-Pin Connector, Black
T10c - 10-Pin Connector
T10r - 10-Pin Connector
T46 - 46-Pin Connector
TML - Coupling Point in Engine/Motor Compartment, Left
E141 - Connection (CAN Bus Suspension Sensors High) (in Engine/Motor Compartment Wiring Harness)
E142 - Connection (CAN Bus Suspension Sensors Low) (in Engine/Motor Compartment Wiring Harness)
* - For Vehicles with Diesel Engine
*2 - Diameter Depends on Equipment
*3 - For Vehicles with Gasoline Engine
*4 - The Color of the Wires Depends on Vehicle Equipment
*5 - Depending on Equipment
