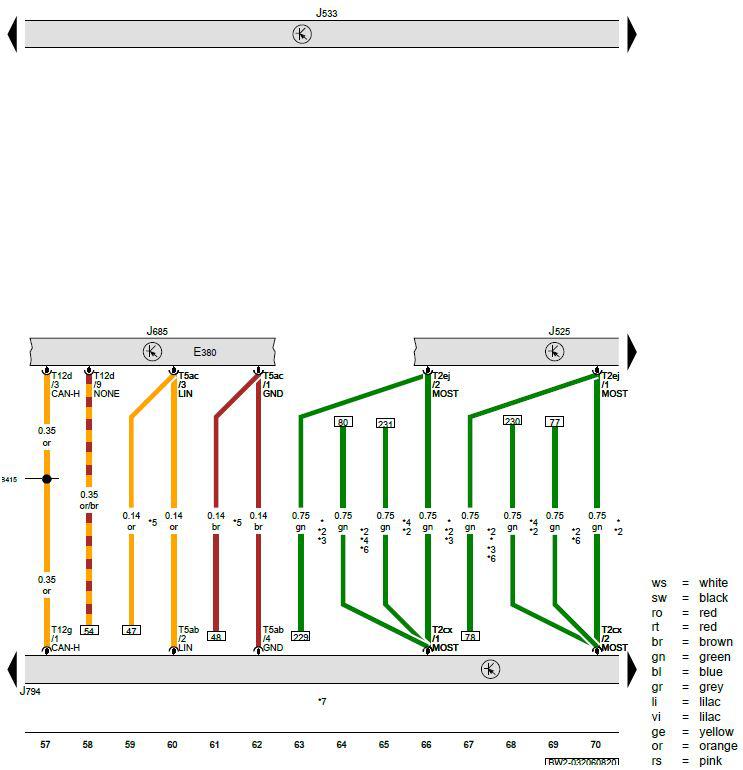

Multimedia System Control Head, Digital Sound System Control Module, Data Bus on Board Diagnostic Interface, Front Information Display Control Head, Information Electronics Control Module 1
E380 - Multimedia System Control Head
J525 - Digital Sound System Control Module
J533 - Data Bus on Board Diagnostic Interface
J685 - Front Information Display Control Head
J794 - Information Electronics Control Module 1
T2cx - 2-Pin Connector, Black
T2ej - 2-Pin Connector, Black
T5ab - 5-Pin Connector, Purple
T5ac - 5-Pin Connector, Black
T12d - 12-Pin Connector, Black
T12g - 12-Pin Connector, Gray
B415 - Infotainment CAN Bus High Connection 1 (in Main Wiring Harness)
* - For Vehicles with Sound System
*2 - Fiber Optic Cable
*3 - Depending on Equipment
*4 - For Vehicles Without Sound System
*5 - For Vehicles with Korea Equipment
*6 - For Vehicles with TV Tuner
*7 - Different Connector Color Possible
