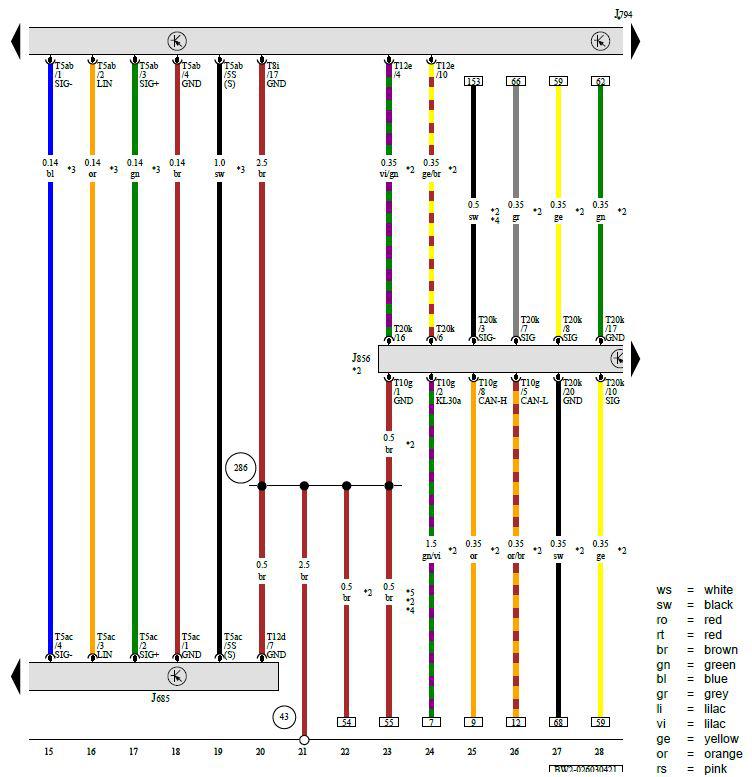

Front Information Display Control Head, Information Electronics Control Module 1, Navigation System Control Module
J685 - Front Information Display Control Head
J794 - Information Electronics Control Module 1
J856 - Navigation System Control Module
T5ab - 5-Pin Connector, Purple
T5ac - 5-Pin Connector, Black
T8i - 8-Pin Connector, Black
T10g - 10-Pin Connector, Black
T12d - 12-Pin Connector, Black
T12e - 12-Pin Connector, Blue
T20k - 20-Pin Connector, Red
43 - Ground Connection on A-Pillar, Lower Right
286 - Ground Connection 8 (in Interior Wiring Harness)
* - Different Connector Color Possible
*2 - Depending on Equipment
*3 - Through July 2018
*4 - Diameter Depends on Equipment
*5 - From September 2018
