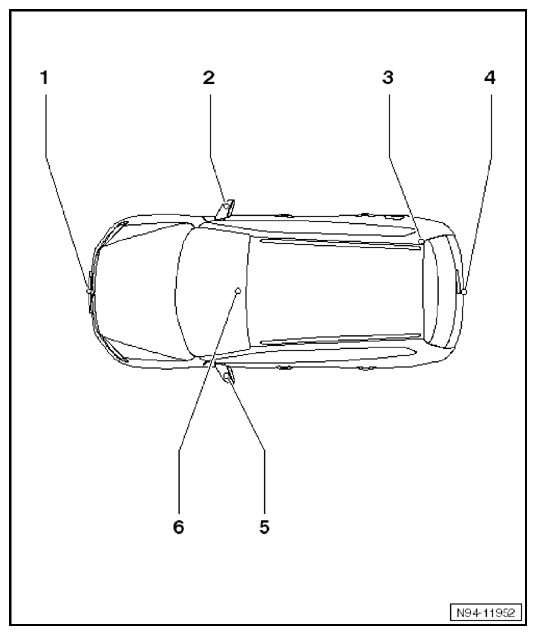

19.2 Overview - Peripheral View Camera System

1. Front Peripheral Camera - R243-
   • Installed location: inside the bumper cover in the front
   • Removing and installing. Refer to 19.4 Front Peripheral Camera - R243-
2. Right Peripheral Camera - R245-
   • Component location: in the right exterior mirror housing
   • Removing and installing. Refer to 19.3 Right Peripheral Camera - R245- or Left Peripheral Camera - R244-
3. Peripheral Camera Control Module - J928-
   • Installed location: in the luggage compartment behind the right trim panel
   • Removing and installing. Refer to 19.6 Peripheral Camera Control Module - J928-
4. Rear Peripheral Camera - R246-
   • Installed location: inside the rear lid handle button
   • Removing and installing. Refer to 19.5 Rear Peripheral Camera - R246-
5. Left Peripheral Camera - R244-
   • Component location: in the left exterior mirror housing
   • Removing and installing. Refer to 19.3 Right Peripheral Camera - R245- Or Left Peripheral Camera - R244-
6. Peripheral Camera Button
   • Component location: inside the switches in the center console, above the radio/navigation system
   • Removing and installing. Refer to 19.7 Peripheral Camera Button
