Removing Conductor Strip
Place 3373 onto stop under the solenoid valve plug. See
Fig 1
.
Pull plug off with 3373 in direction of arrow.
Remove bolt -1-.

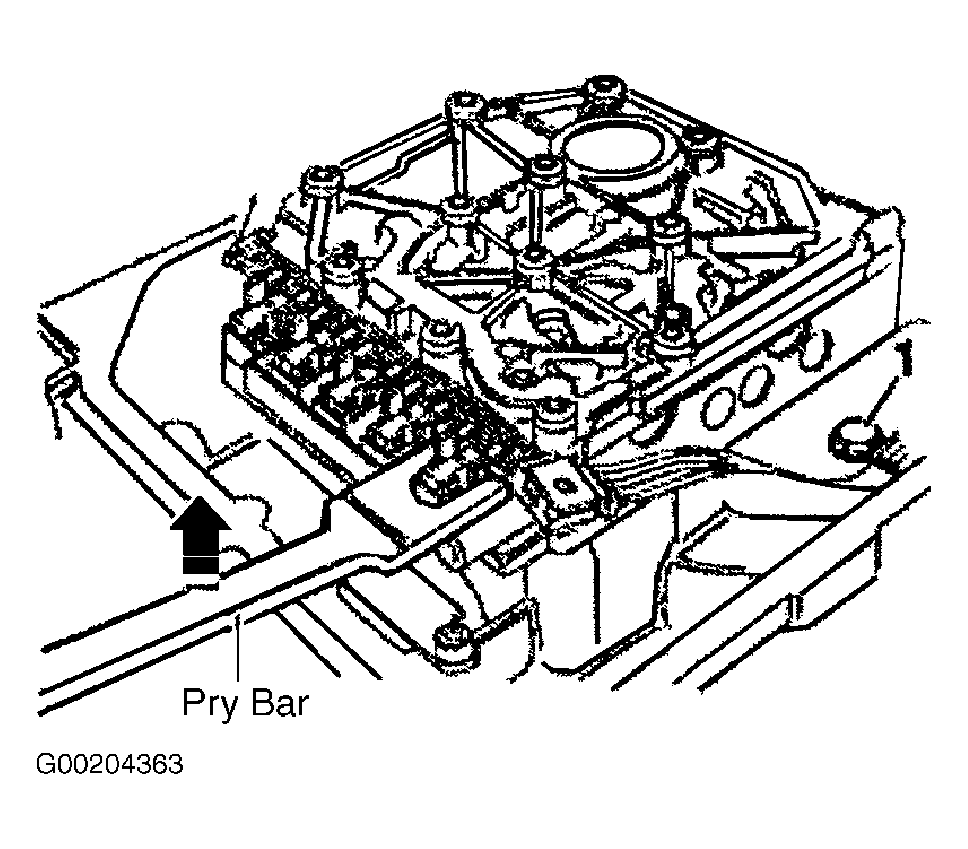

Fig 1: Prying Up On Conductor Strip
Courtesy of VOLKSWAGEN UNITED STATES, INC.
