Installing Valve Body

Route conductor strip as illustrated. See Fig 1 . When installing do not kink or twist.

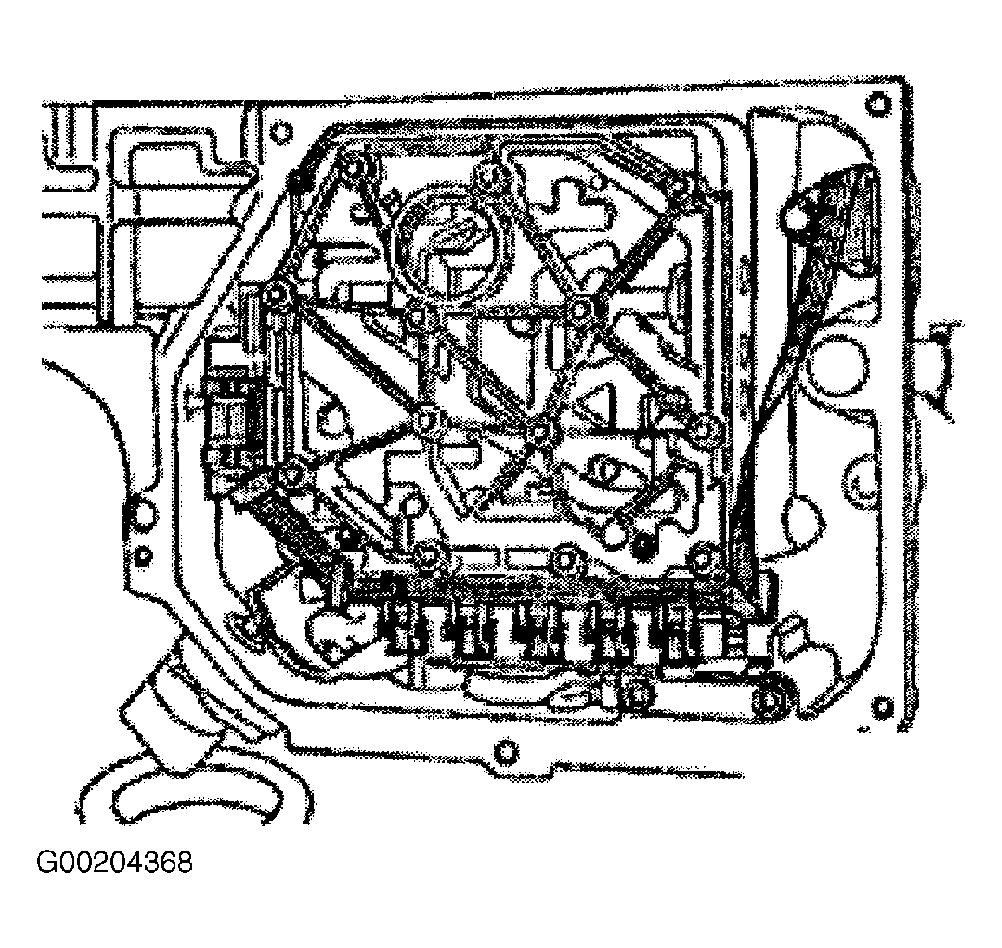

Fig 1: Installing Conductor Strip
G00204368Courtesy of VOLKSWAGEN UNITED STATES, INC.
