Electric Park Actuator Assembly Removal And Installation/Replacement

Mobile Repair Possible: No

Overview:

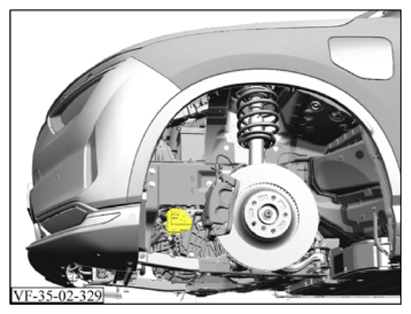

Fig 1: Electric Park Actuator Assembly Components Location

Courtesy of VINFAST, LLC

WARNING: Electricity hazard
Failure to follow specified procedures may result in death or serious injury from electric shock when working on or near high-voltage components.

Only authorised and appropriately trained persons may carry out work on high-voltage vehicles and components.
Perform High Voltage isolation procedure prior to commencing work.
Ensure appropriate Personal Protective Equipment is worn until the system is verified safe.

Removal Procedure:

Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
Remove underbody front air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
Remove eMotor (FWD) mount bracket (left side). Refer to EMOTOR (FWD) MOUNT BRACKET (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

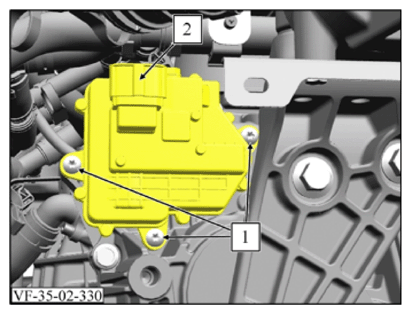

Remove 3 bolts (1).
Torque: 9 Nm
Unlock and disconnect electrical connector (2).
Remove electric park actuator assembly.

Installation Procedure:

Installation is the reverse of removal procedure, noting the following.
All fasteners must be tightened to torque specification!
Remove eMotor (FWD) mount bracket (left side). Refer to EMOTOR (FWD) MOUNT BRACKET (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
Install underbody front air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
