Differential Oil Seal Removal And Installation/Replacement

Mobile Repair Possible: No

Special Tools Required:

Seal Puller - No part number

Special tool was not known at the time of creation

Overview:

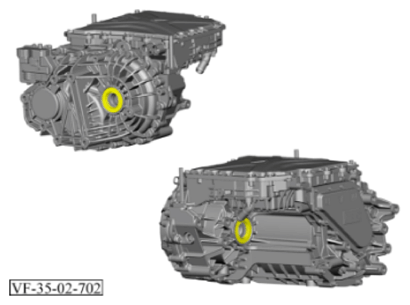

Fig 1: Differential Oil Seal Components Location

Courtesy of VINFAST, LLC

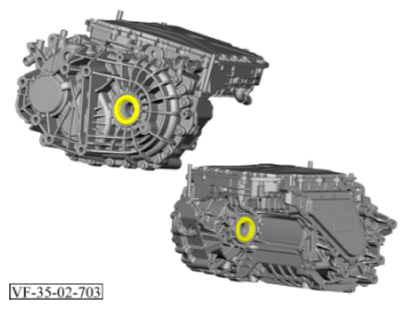

eMotor FWD

Courtesy of VINFAST, LLC

eMotor RWD

WARNING: Electricity hazard
Failure to follow specified procedures may result in death or serious injury from electric shock when working on or near high-voltage components.

Only authorised and appropriately trained persons may carry out work on high-voltage vehicles and components.
Perform High Voltage isolation procedure prior to commencing work.
Ensure appropriate Personal Protective Equipment is worn until the system is verified safe.

WARNING: Toxic material
Failure to follow specified procedures may result in death or serious injury possible due to differential oil.
Burns to eyes and skin possible.

Work only in well-ventilated workplaces.
Avoid ingestion or inhalation.
Follow specific instructions on hazard sheet.
Always use personal protective equipment (PPE).

WARNING: Hot surface
Failure to follow specified procedures may result in severe injuries due to burns or scalds.

Do not commence work until components/liquids have sufficiently cooled down.
Always use personal protective equipment (PPE).

Removal Procedure:

The procedure for the differential oil seal is identical for all components, there is no difference from eMotor FWD and eMotor RWD.

Disable HV-System. Refer to VEHICLE HIGH VOLTAGE ISOLATION AND ENABLING PROCEDURE
eMotor FWD. Remove either the left or right front drive shaft, whichever is required, as per procedure
Remove front wheel drive shaft (left side). Refer to FRONT WHEEL DRIVE SHAFT (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
Remove front wheel drive shaft (right side). Refer to FRONT WHEEL DRIVE SHAFT (RIGHT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
eMotor RWD. Remove either the left or right rear drive shaft, whichever is required, as per procedure
Remove rear wheel drive shaft (left side). Refer to REAR WHEEL DRIVE SHAFT (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
Remove rear wheel drive shaft (right side). Refer to REAR WHEEL DRIVE SHAFT (RIGHT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

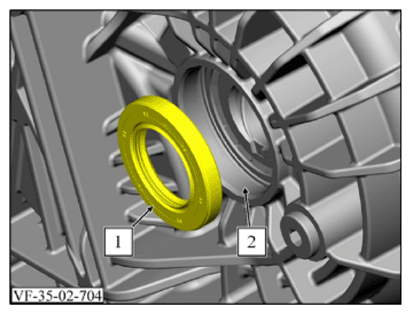

Carefully remove the differential oil seal (1) from the eMotor housing.
Be careful not to damage or scratch the inner surface of the eMotor housing (2) where the oil seal seats.

NOTE: Environmental Risk
- Collect and dispose of leaking liquids.
- Observe country-specific disposal regulations.
Installation Procedure:

Courtesy of VINFAST, LLC

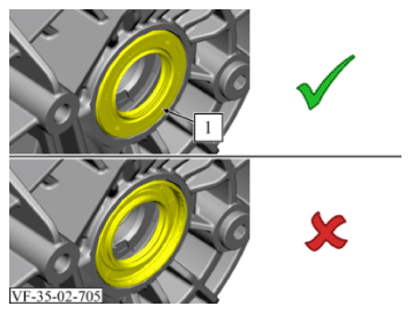

Insert the new differential oil seal (1) into the eMotor housing. Make sure to fit the oil seal in the correct orientation as shown.

Courtesy of VINFAST, LLC

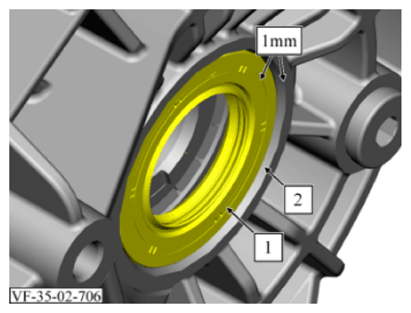

The oil seal outer surface (1) should sit 1 mm inside the outer surface of the eMotor housing (2).
eMotor FWD. Install either the left or right front drive shaft, whichever is required, as per procedure
Install front wheel drive shaft (left side). Refer to FRONT WHEEL DRIVE SHAFT (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
Install front wheel drive shaft (right side). Refer to FRONT WHEEL DRIVE SHAFT (RIGHT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
eMotor RWD. Install either the left or right rear drive shaft, whichever is required, as per procedure
Install rear wheel drive shaft (left side). Refer to REAR WHEEL DRIVE SHAFT (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
Install rear wheel drive shaft (right side). Refer to REAR WHEEL DRIVE SHAFT (RIGHT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
Check transmission oil level. Refer to TRANSMISSION FLUID REPLACEMENT AND DRAIN/FILL PLUG REMOVAL AND INSTALLATION/REPLACEMENT
Enable HV-System. Refer to HV-SYSTEM DISABLING/ENABLING
