Inspection [11/2015 - ]: Procedure
- INSPECT NO. 1 INTEGRATION RELAY
- IG1 NO. 3 RELAY:

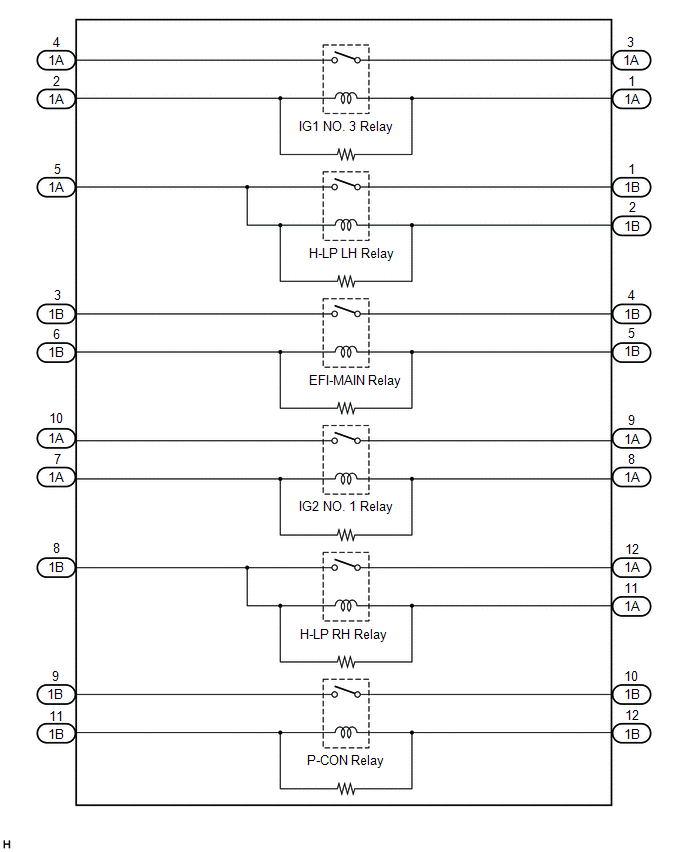

- Measure the resistance according to the value(s) in the table below.

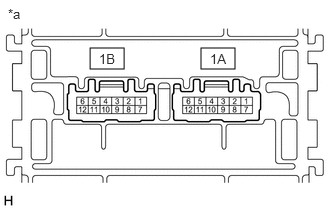

*a Component without harness connected
(No. 1 Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition 1A-4 - 1A-3 Auxiliary battery voltage not applied between terminals 1A-1 and 1A-2 10 kΩ or higher 1A-4 - 1A-3 Auxiliary battery positive (+) → 1A-1
Auxiliary battery negative (-) → 1A-2Below 1 Ω If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- H-LP LH RELAY:
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(No. 1 Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition 1A-5 - 1B-1 Auxiliary battery voltage not applied between terminals 1A-5 and 1B-2 10 kΩ or higher 1A-5 - 1B-1 Auxiliary battery positive (+) → 1A-5
Auxiliary battery negative (-) → 1B-2Below 1 Ω If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- EFI-MAIN RELAY:
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(No. 1 Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition 1B-3 - 1B-4 Auxiliary battery voltage not applied between terminals 1B-6 and 1B-5 10 kΩ or higher 1B-3 - 1B-4 Auxiliary battery positive (+) → 1B-6
Auxiliary battery negative (-) → 1B-5Below 1 Ω If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- IG2 NO. 1 RELAY:
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(No. 1 Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition 1A-10 - 1A-9 Auxiliary battery voltage not applied between terminals 1A-7 and 1A-8 10 kΩ or higher 1A-10 - 1A-9 Auxiliary battery positive (+) → 1A-7
Auxiliary battery negative (-) → 1A-8Below 1 Ω If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- H-LP RH RELAY:
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(No. 1 Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition 1B-8 - 1A-12 Auxiliary battery voltage not applied between terminals 1B-8 and 1A-11 10 kΩ or higher 1B-8 - 1A-12 Auxiliary battery positive (+) → 1B-8
Auxiliary battery negative (-) → 1A-11Below 1 Ω If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- P-CON RELAY:
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(No. 1 Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition 1B-9 - 1B-10 Auxiliary battery voltage not applied between terminals 1B-11 and 1A-12 10 kΩ or higher 1B-9 - 1B-10 Auxiliary battery positive (+) → 1B-11
Auxiliary battery negative (-) → 1B-12Below 1 Ω If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- IG1 NO. 3 RELAY:
