Components [08/2015 - ]

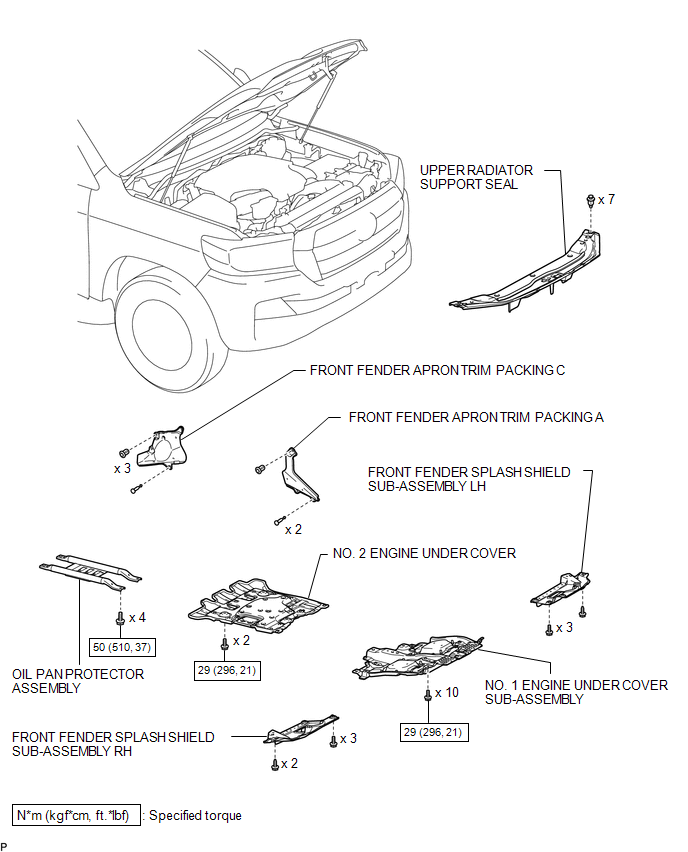

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 5)
GTY558965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

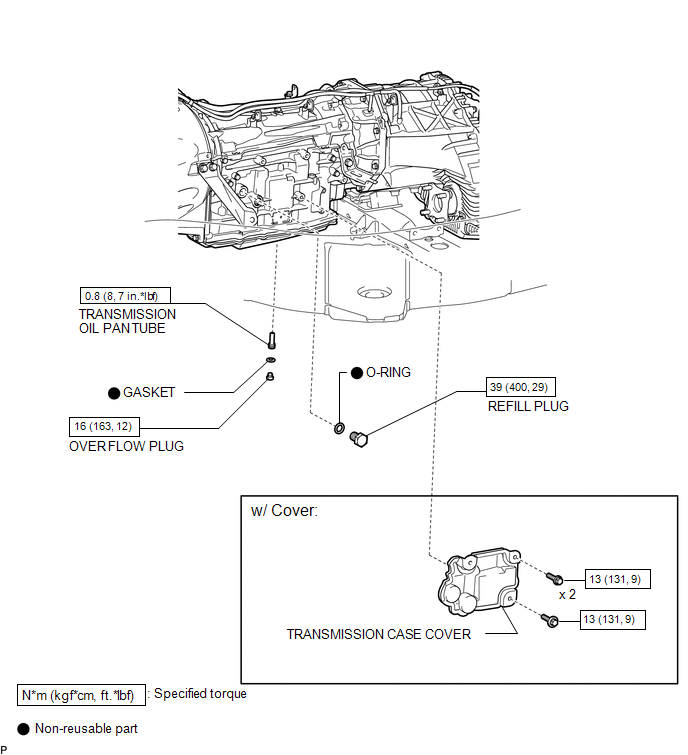

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 5)
GTY592667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

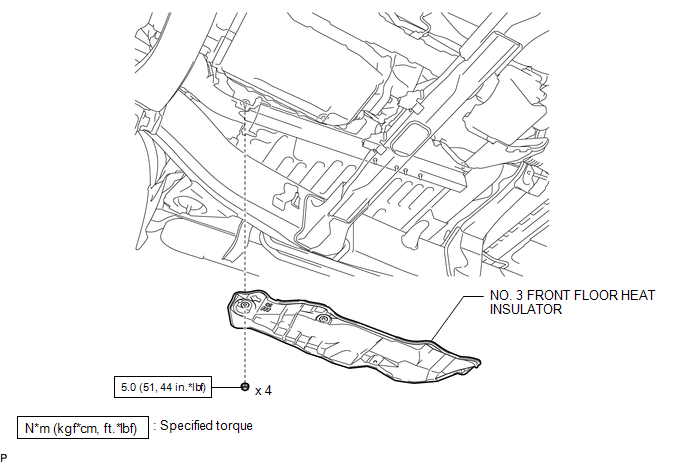

Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications (3 Of 5)
GTY543612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

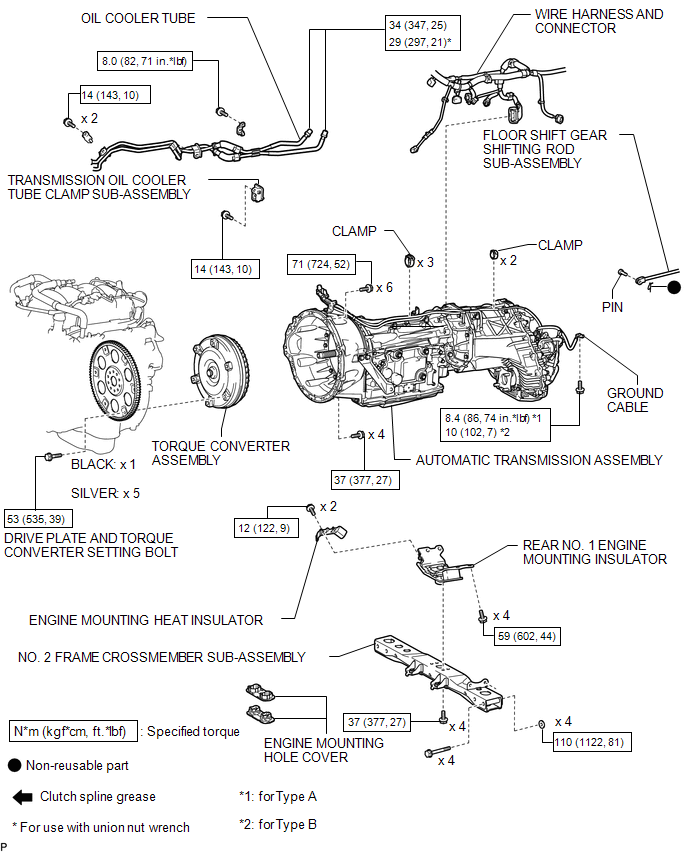

Fig 4: Automatic Transmission Assembly Replacement Components With Torque Specifications (4 Of 5)
GTY944264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

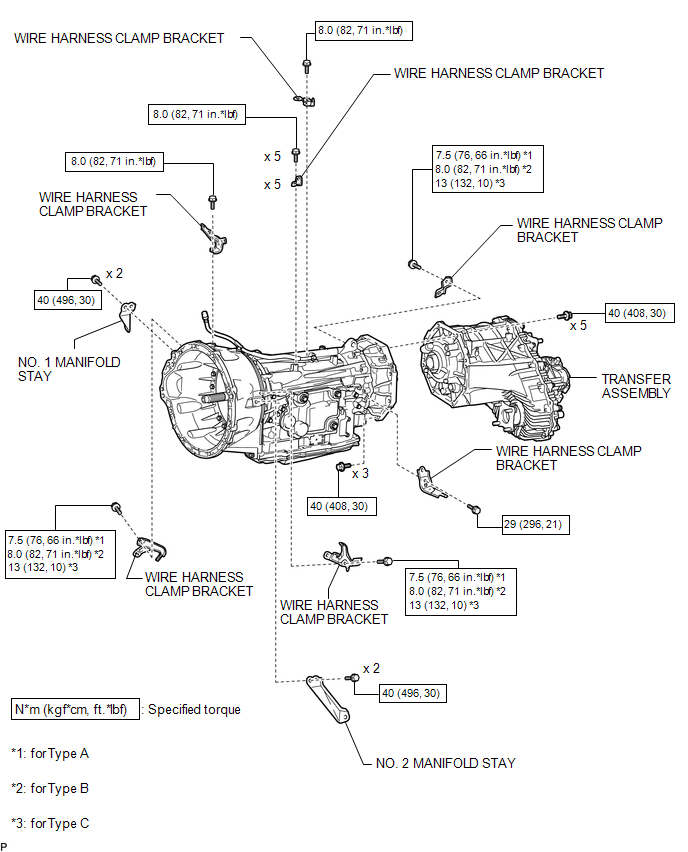

Fig 5: Automatic Transmission Assembly Replacement Components With Torque Specifications (5 Of 5)
GTY595793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
