Components [01/2019 - ]

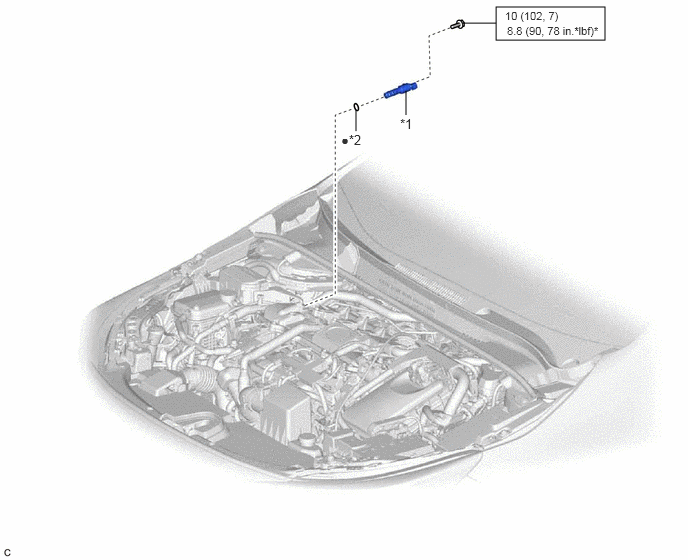

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY920249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY *2 O-RING
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
• Non-reusable part - -
