Intermediate Shaft: Installation: Procedure
- INSTALL INTERMEDIATE SHAFT INSTALLATION NOTE
- Align the alignment marks on the steering column and the steering gear (pinion), which were placed before removing the intermediate shaft, and install the intermediate shaft.NOTE:
When newly replacing the intermediate shaft, place alignment marks on the new part in the same position as the removed intermediate shaft.

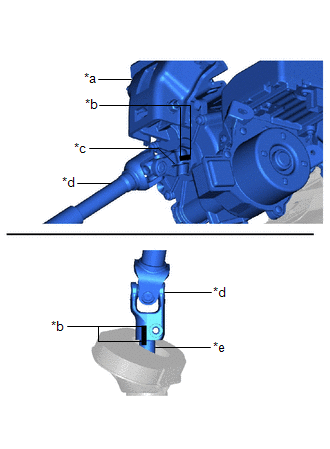

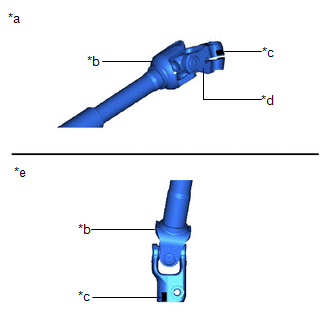

*a Steering Column Side *b Intermediate Shaft *c Alignment Mark *d Break *e Steering Gear Side *a Steering Column *b Alignment Mark *c Break *d Intermediate Shaft *e Steering Gear (Pinion) - Install in the order of joint bolt B and joint bolt A.

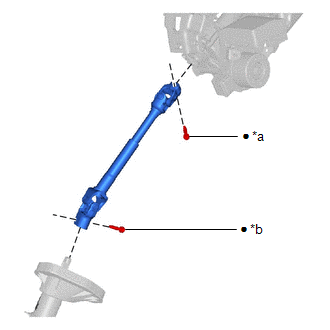

*a Joint Bolt B *b Joint Bolt A • Non-reusable part - Verify that the joint bolt B flange is seated in the specified position.

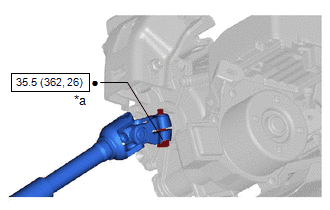

*a Joint Bolt B N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part Torque: 35.5 N*m (362 kgf*cm, 26 ft.*lbf)
- Verify that joint bolt A is installed to the groove of the steering gear (pinion).

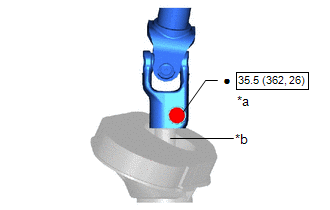

*a Joint Bolt A *b Steering Gear (Pinion) N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part Torque: 35.5 N*m (362 kgf*cm, 26 ft.*lbf)
- Align the alignment marks on the steering column and the steering gear (pinion), which were placed before removing the intermediate shaft, and install the intermediate shaft.
- INSTALL INTERMEDIATE SHAFT
- Install the intermediate shaft.
Refer to INSTALLATION

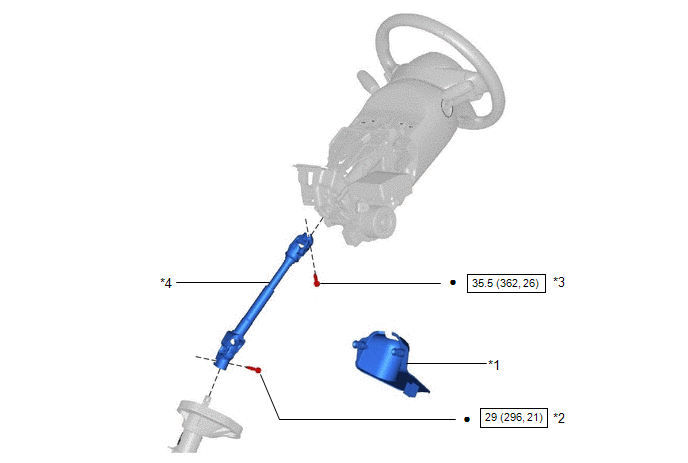

*1 Joint Cover *2 Joint Bolt A *3 Joint Bolt B *4 Intermediate Shaft N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part - Install the joint bolt B.
Torque: 35.5 N*m (362 kgf*cm, 26 ft.*lbf)
- Install the joint bolt A.
Torque: 35.5 N*m (362 kgf*cm, 26 ft.*lbf)
- Install the joint cover.
- Install the lock the adjusting lever.
- Install the intermediate shaft.
