System Diagrams

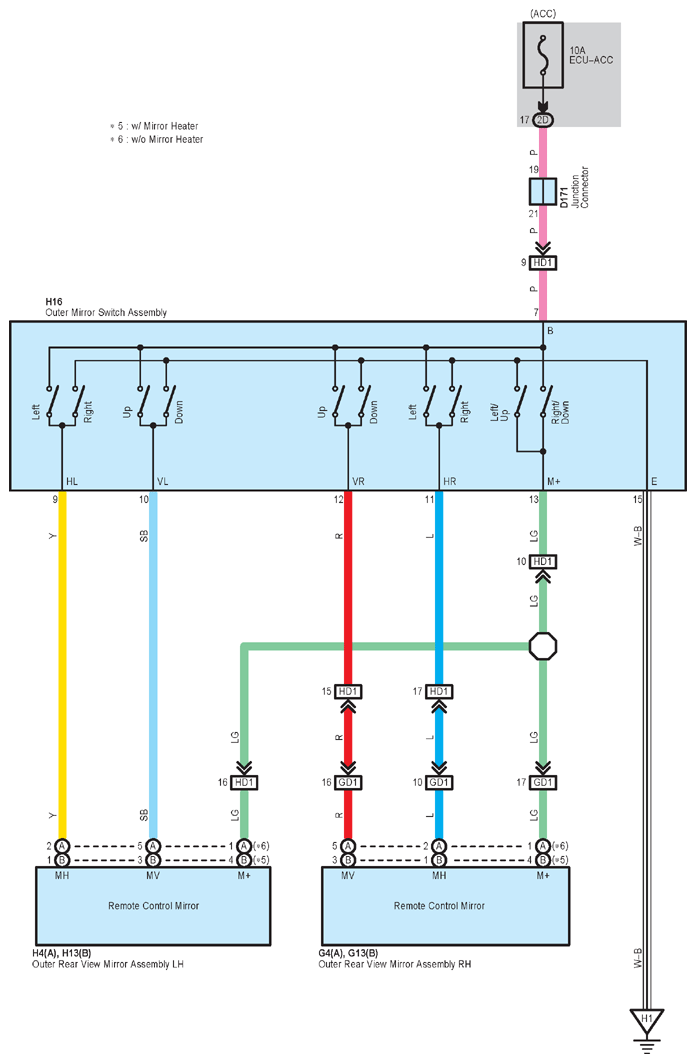

Fig 1: Remote Control Mirror (W/O Seat Position Memory)

G12221750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
