System Diagrams

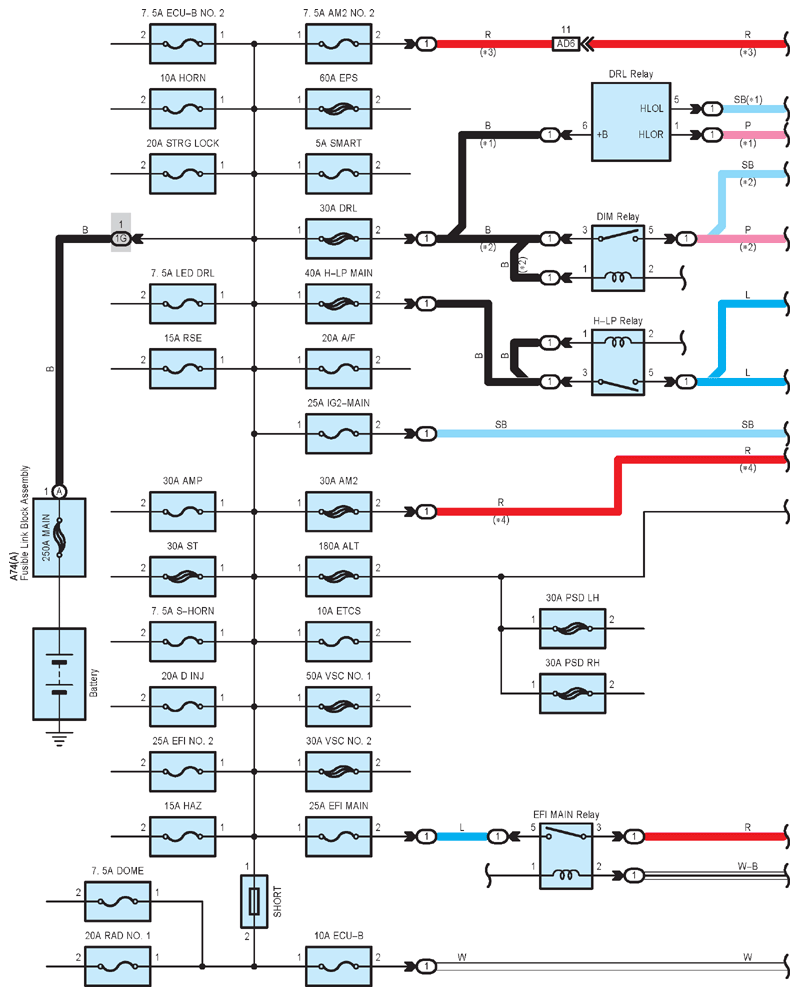

Fig 1: Power Source (2GR-FKS) (1 Of 7)
G12221717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

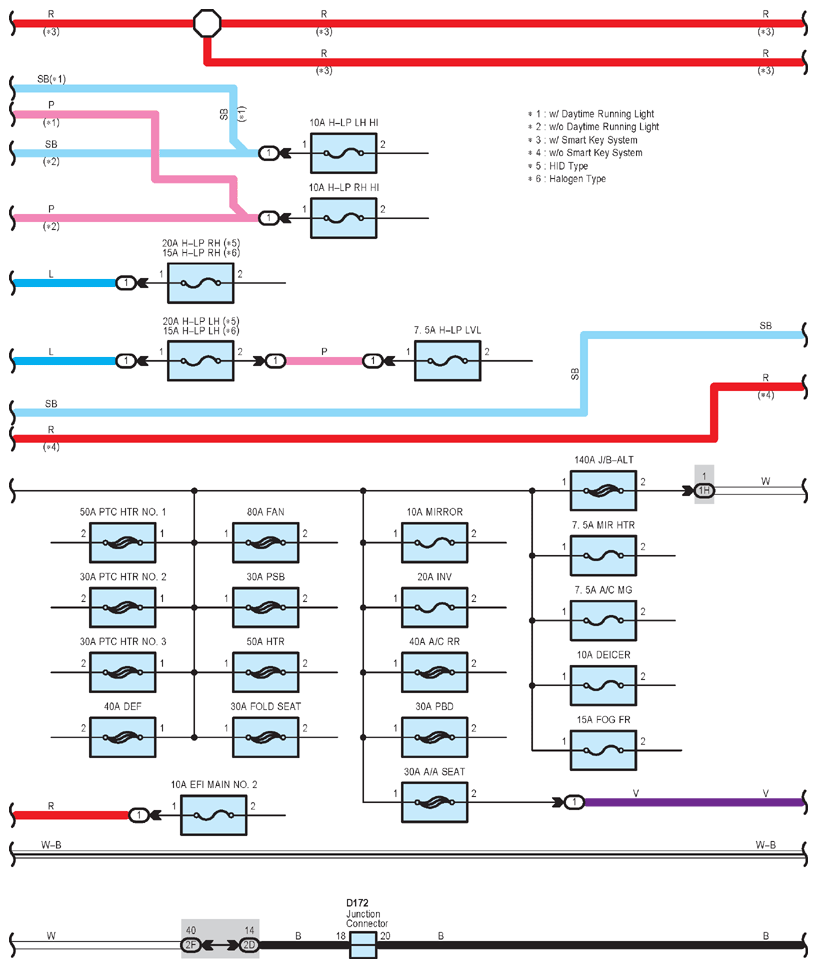

Fig 2: Power Source (2GR-FKS) (2 Of 7)
G12221718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

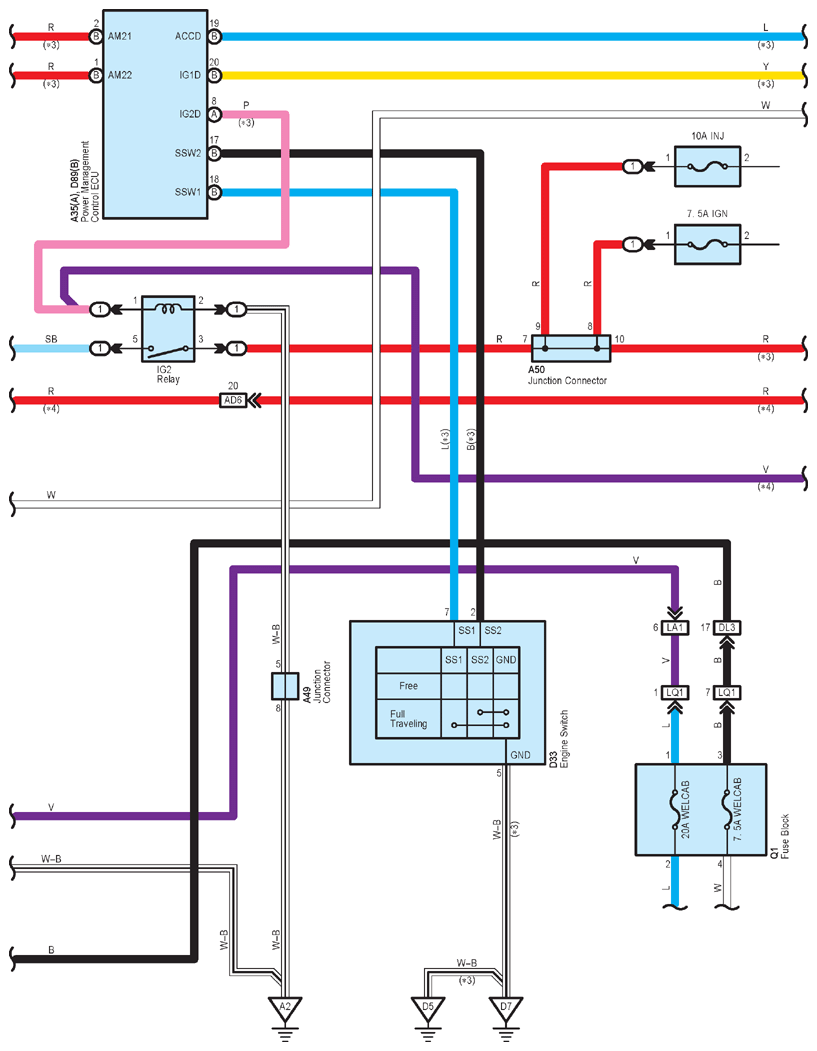

Fig 3: Power Source (2GR-FKS) (3 Of 7)
G12221719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

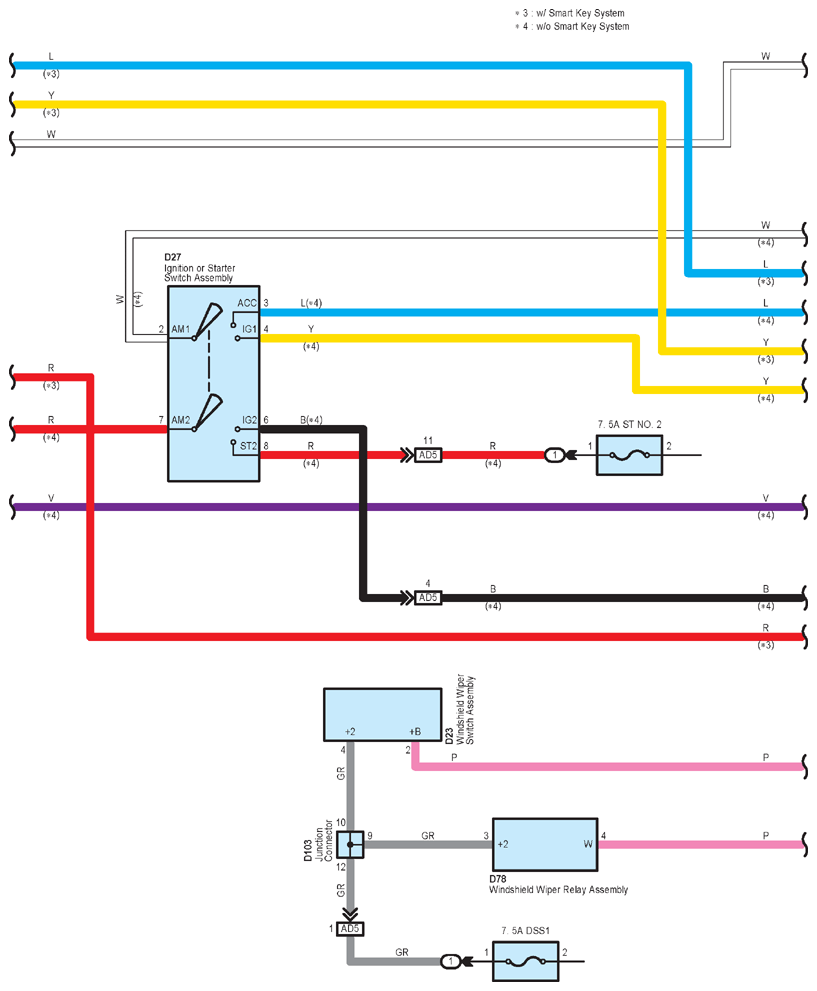

Fig 4: Power Source (2GR-FKS) (4 Of 7)
G12221720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

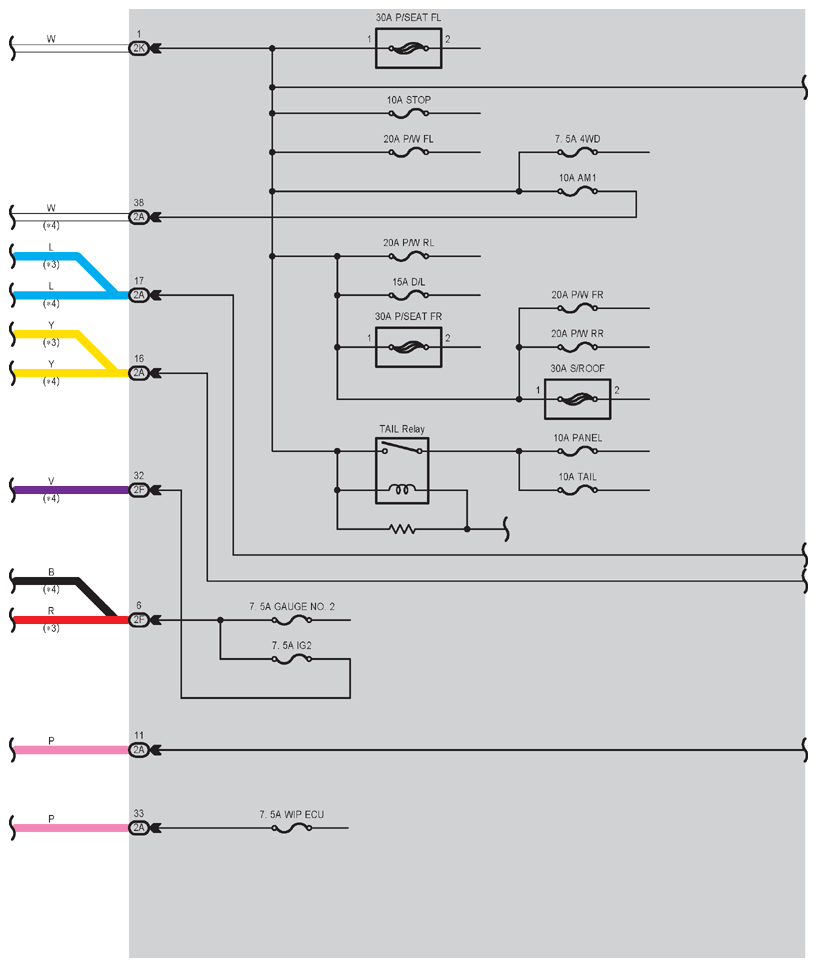

Fig 5: Power Source (2GR-FKS) (5 Of 7)
G12221721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

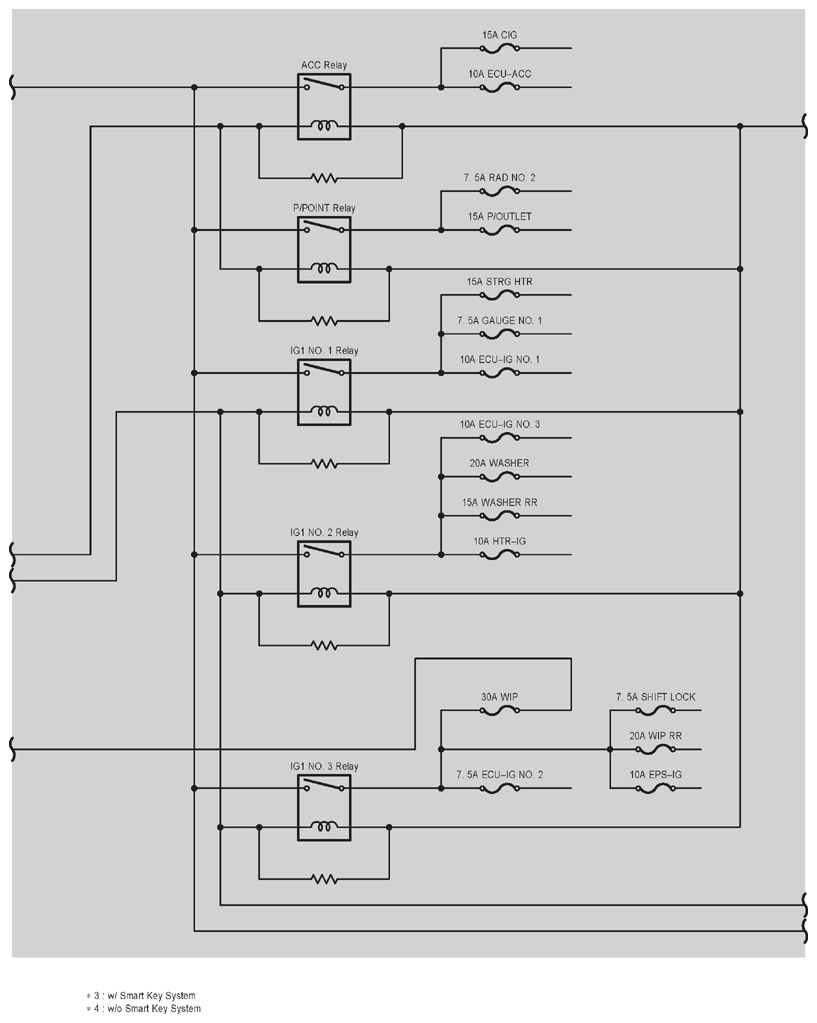

Fig 6: Power Source (2GR-FKS) (6 Of 7)
G12221722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

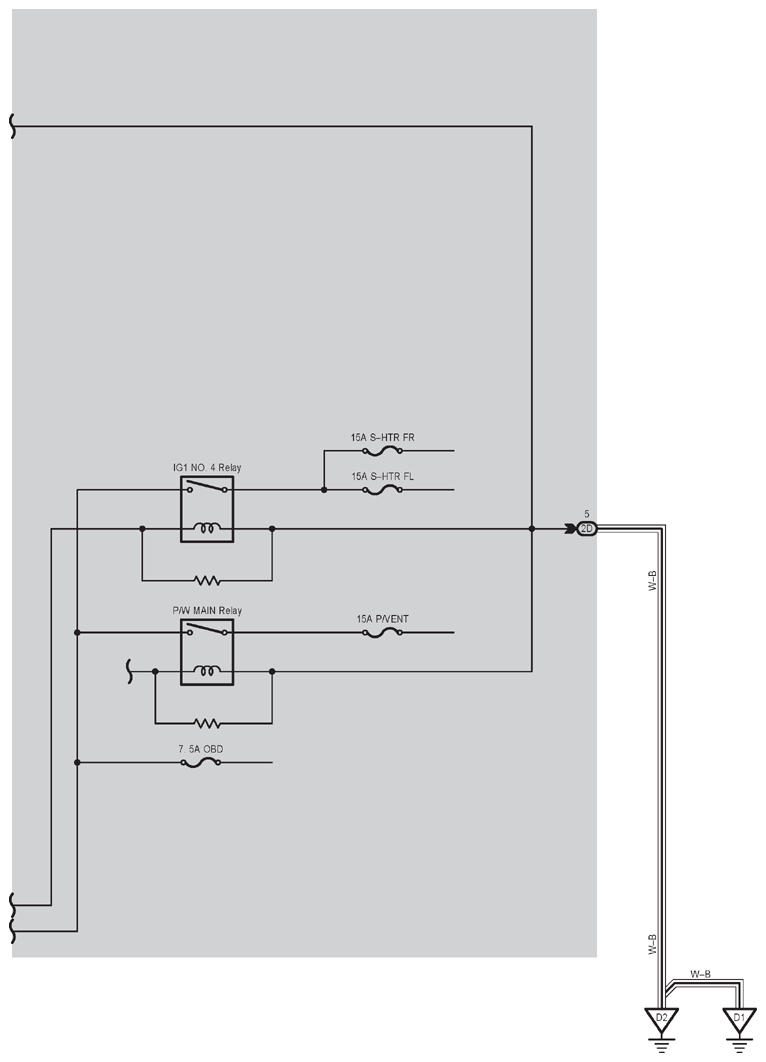

Fig 7: Power Source (2GR-FKS) (7 Of 7)
G12221723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
